*No Crank Condition: Testing

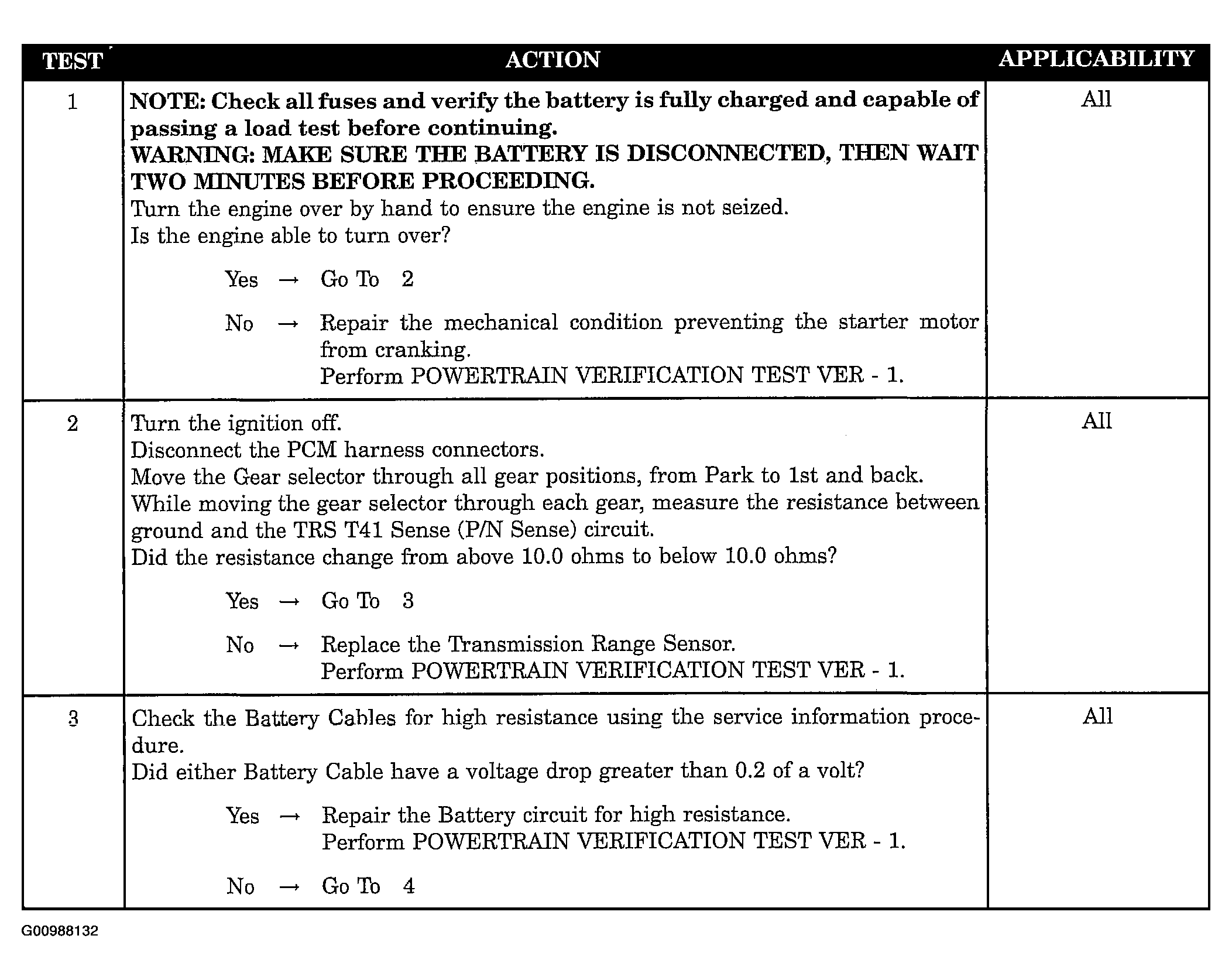

Fig 1: Testing: No Crank Condition (1 Of 3)
G00988132Courtesy of DAIMLERCHRYSLER CORP.

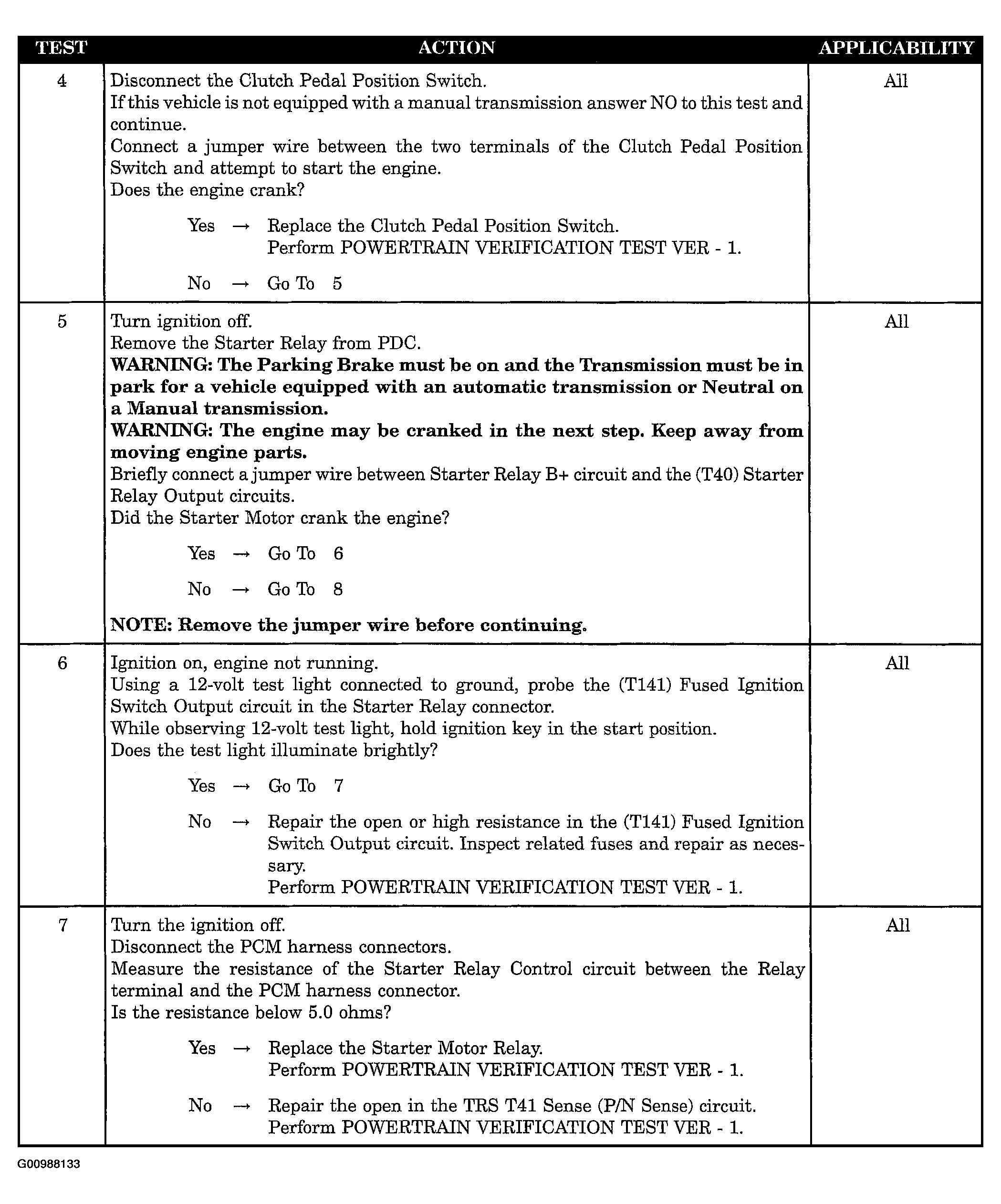

Fig 2: Testing: No Crank Condition (2 Of 3)
G00988133Courtesy of DAIMLERCHRYSLER CORP.

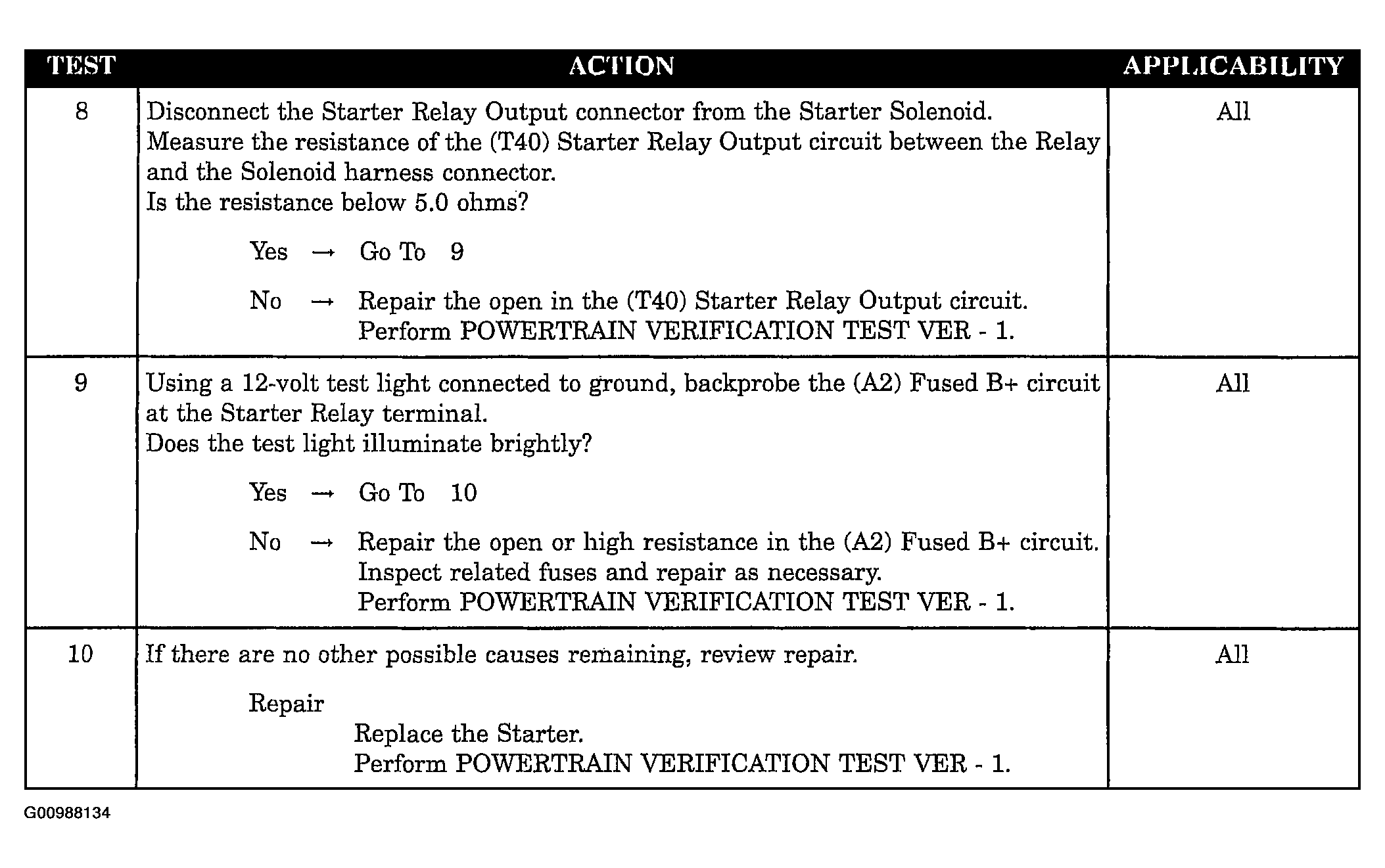

Fig 3: Testing: No Crank Condition (3 Of 3)
G00988134Courtesy of DAIMLERCHRYSLER CORP.
