Auto Shut Down Relay: Installation

The ASD relay is located in the Power Distribution Center (PDC). Refer to label on PDC cover for relay location.

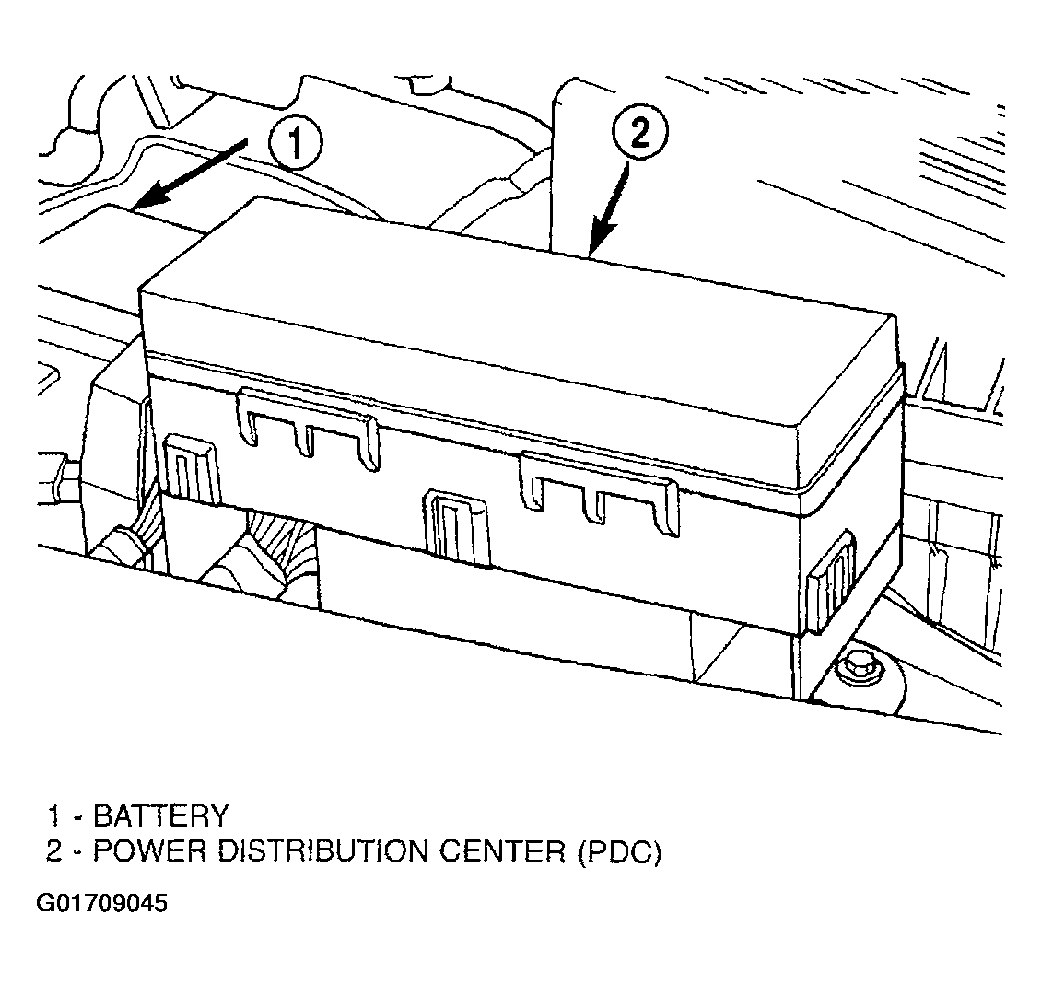

Fig 1: Identifying Power Distribution Center (PDC)

Courtesy of DAIMLERCHRYSLER CORP.

1. Install relay to PDC.
2. Install cover to PDC.
