*No Response From Sentry Key Immobilizer Module: Testing

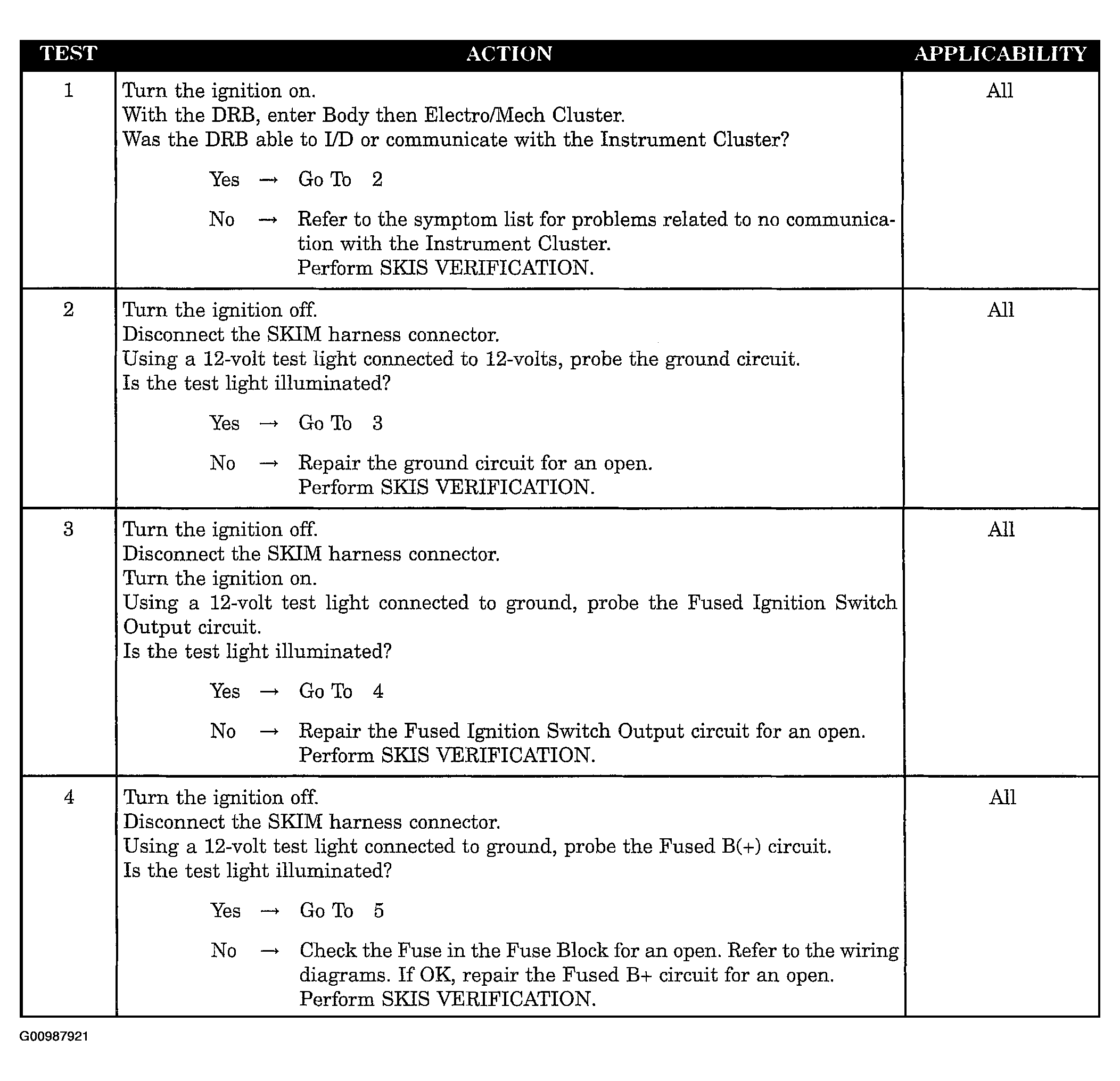

Fig 1: Testing: No Response From Sentry Key Immobilizer Module - 1 Of 2

Courtesy of DAIMLERCHRYSLER CORP.

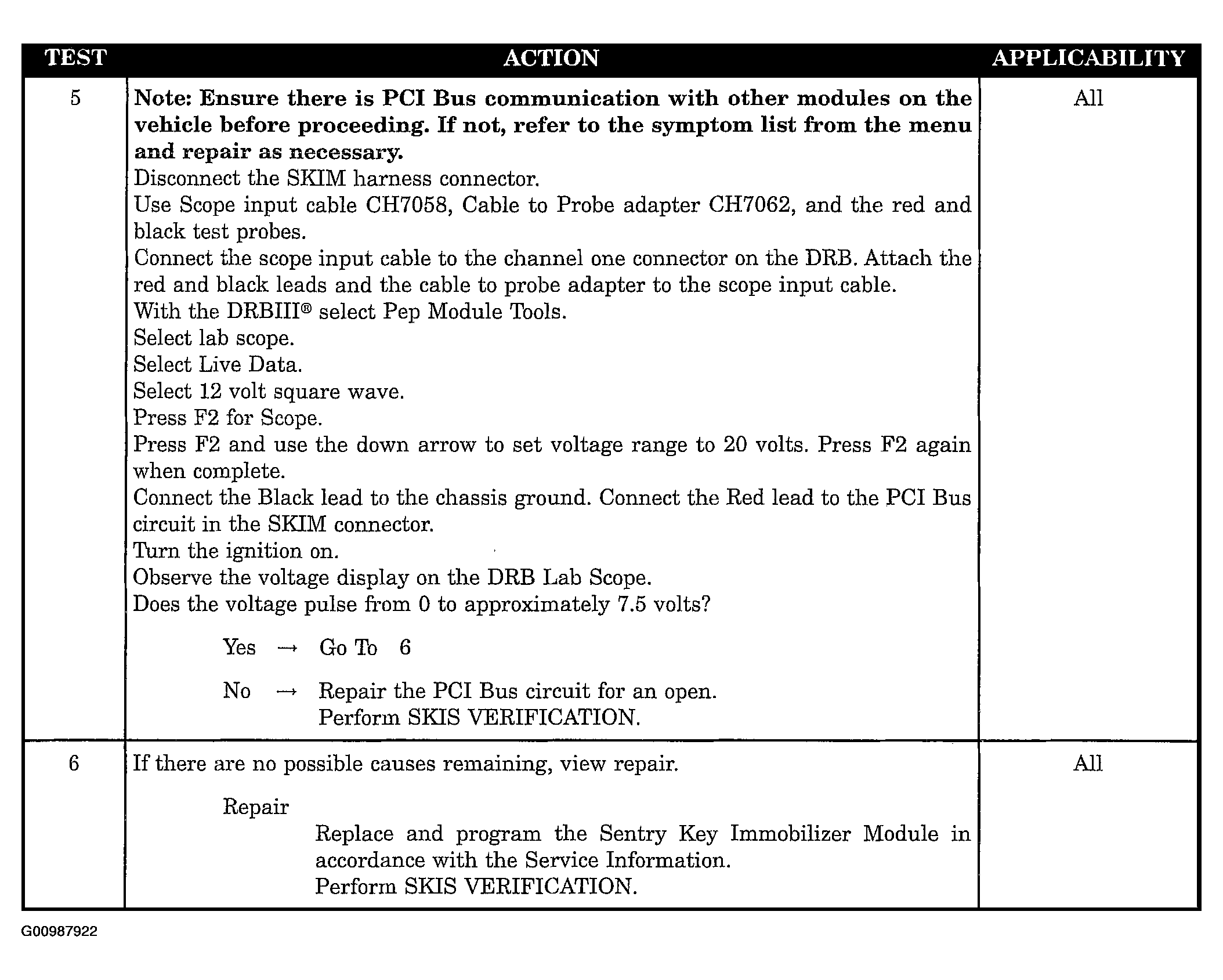

Fig 2: Testing: No Response From Sentry Key Immobilizer Module - 1 Of 2

Courtesy of DAIMLERCHRYSLER CORP.
