*PCI Bus Communication Failure: Testing

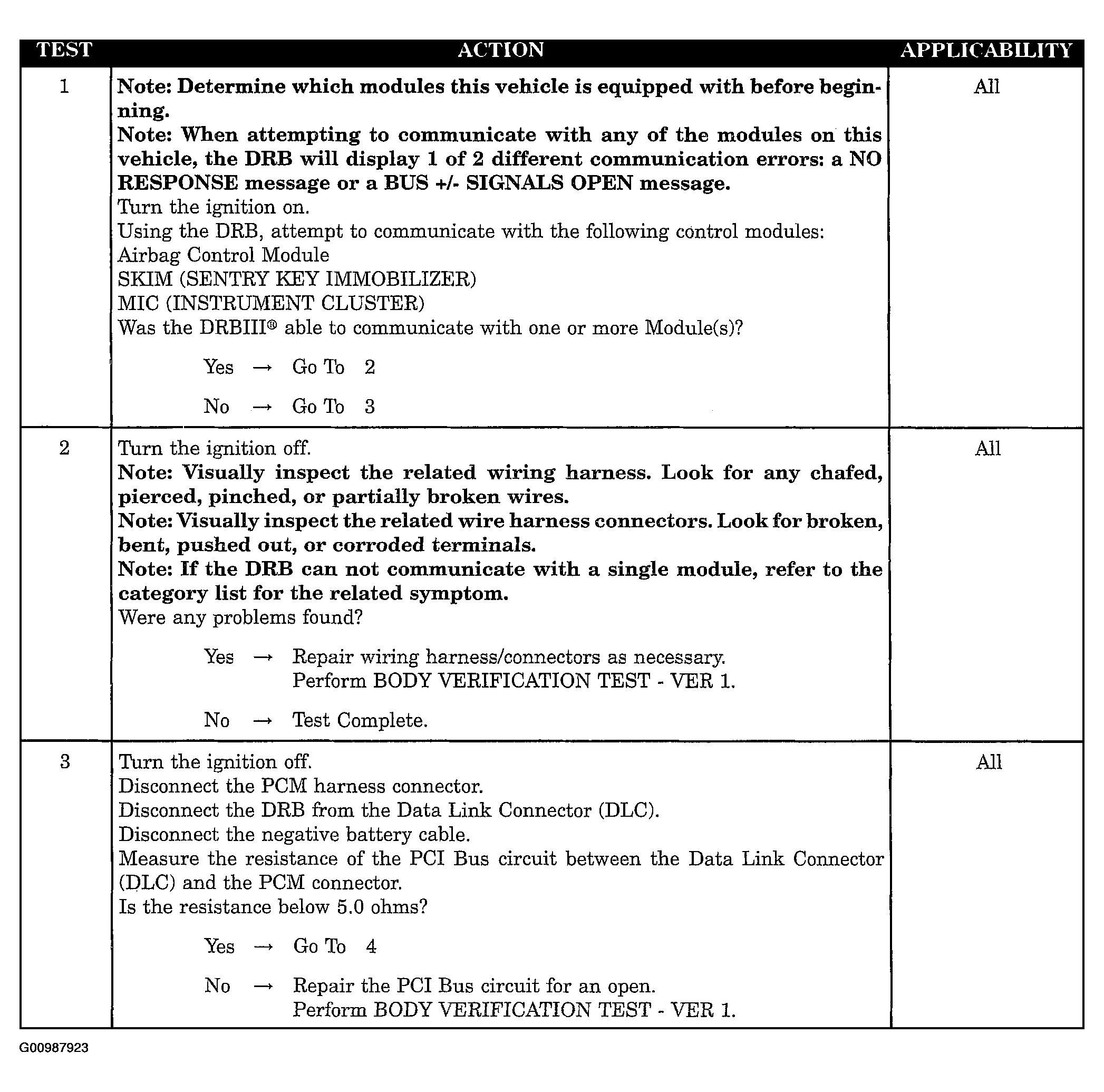

Fig 1: Testing: PCI BUS Communication Failure - 1 Of 2
G00987923Courtesy of DAIMLERCHRYSLER CORP.
Fig 2: Testing: PCI BUS Communication Failure - 1 Of 2
G00987924Courtesy of DAIMLERCHRYSLER CORP.
