Control Modules And PDC

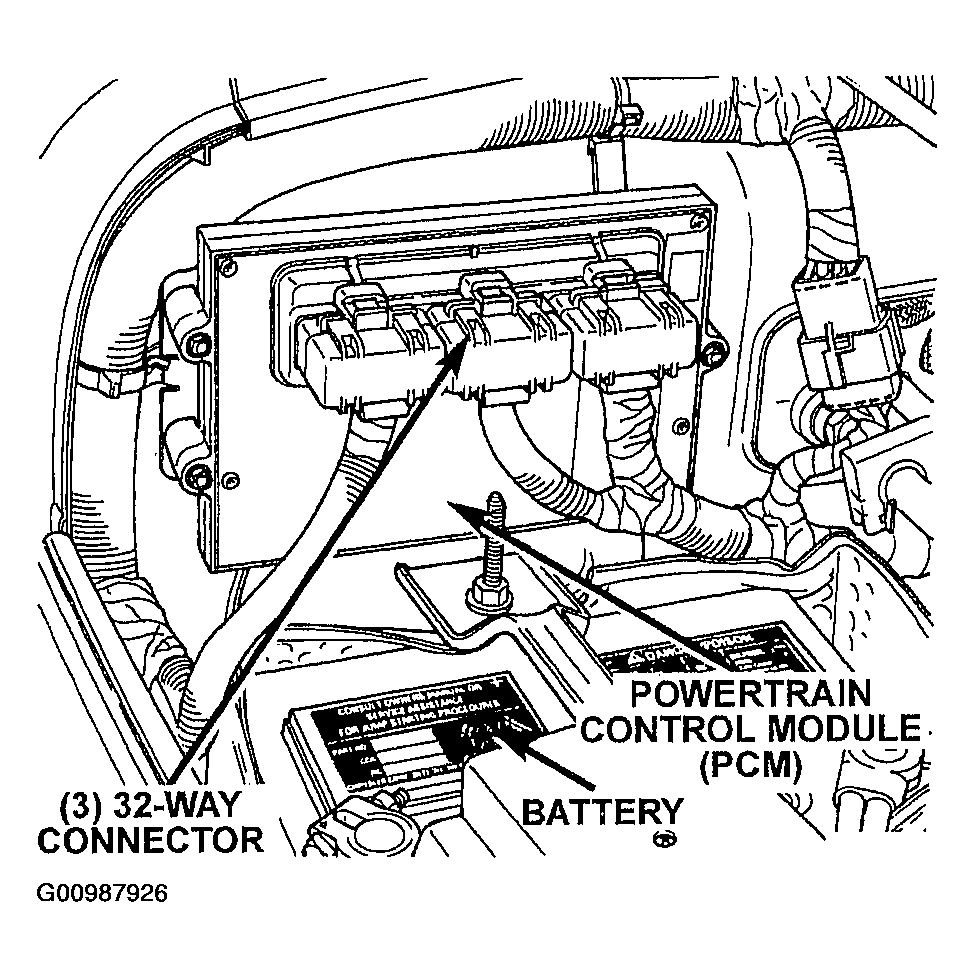

Fig 1: Locating Control Modules & PDC (1 Of 3)
G00987926Courtesy of DAIMLERCHRYSLER CORP.

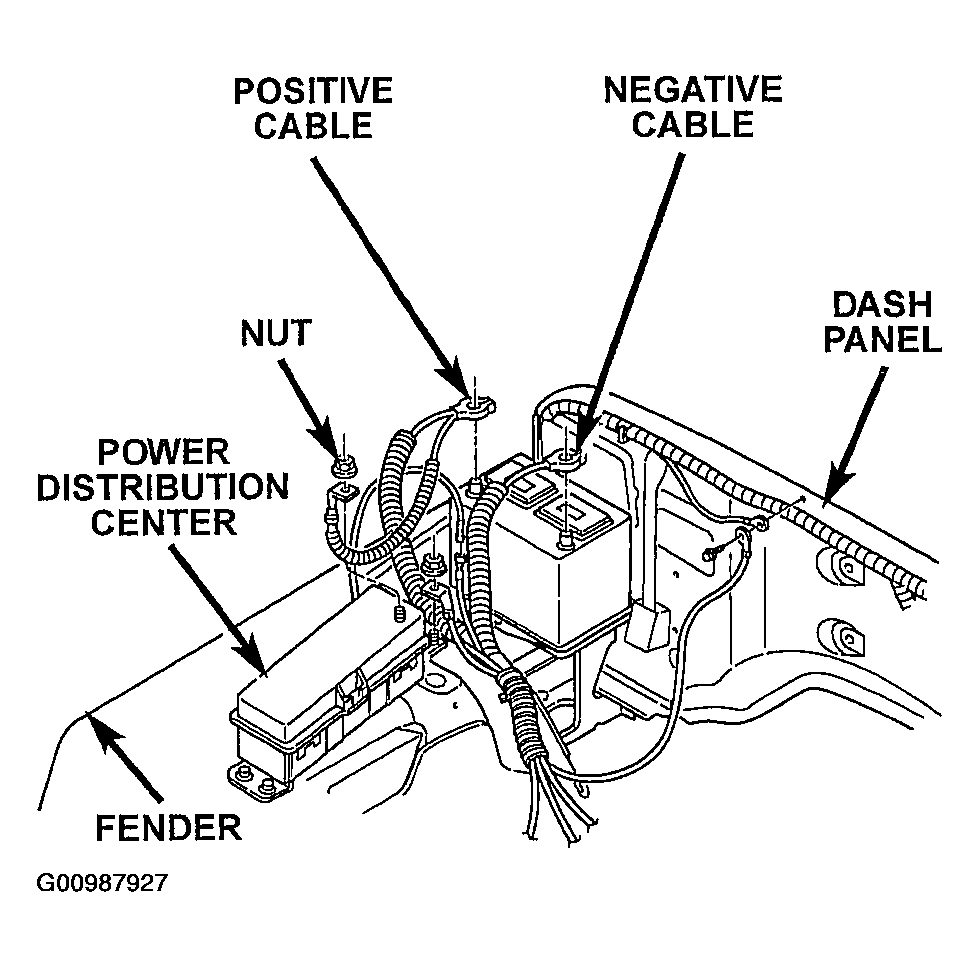

Fig 2: Locating Control Modules & PDC (2 Of 3)
G00987927Courtesy of DAIMLERCHRYSLER CORP.

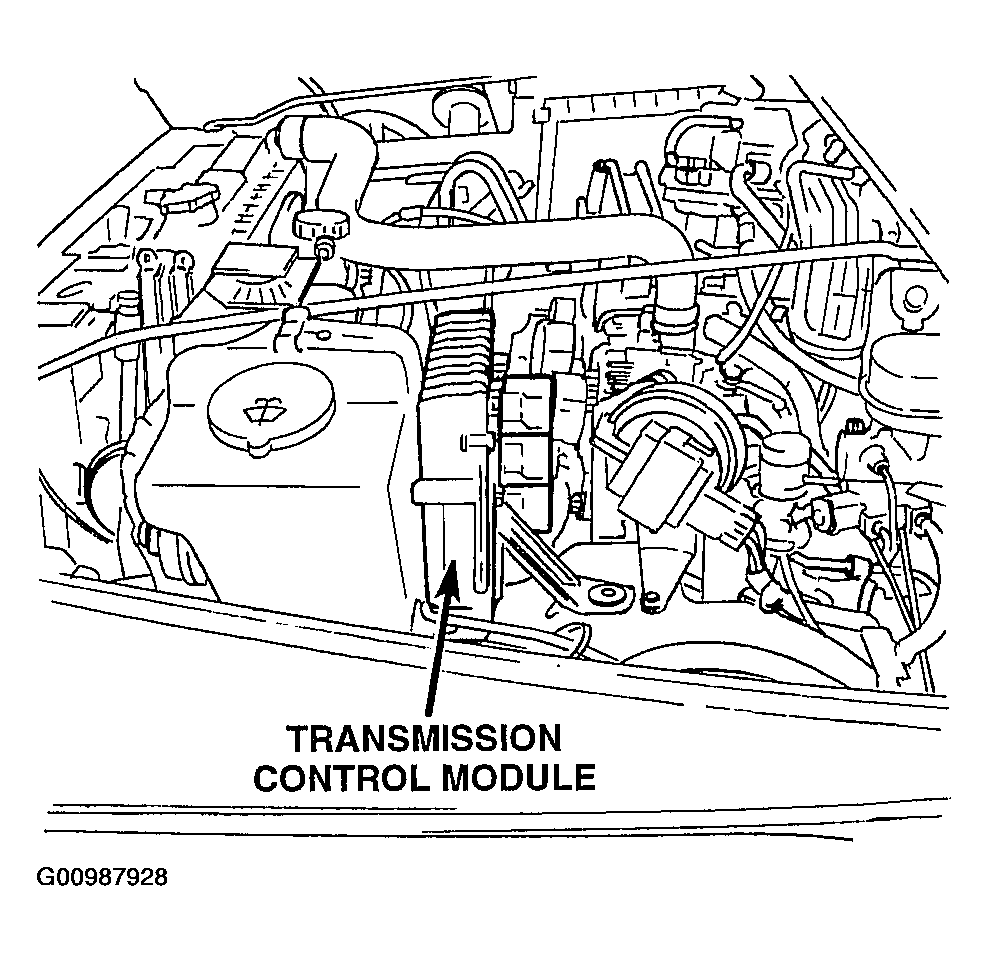

Fig 3: Locating Control Modules & PDC (3 Of 3)
G00987928Courtesy of DAIMLERCHRYSLER CORP.
