Fuses (PDC)

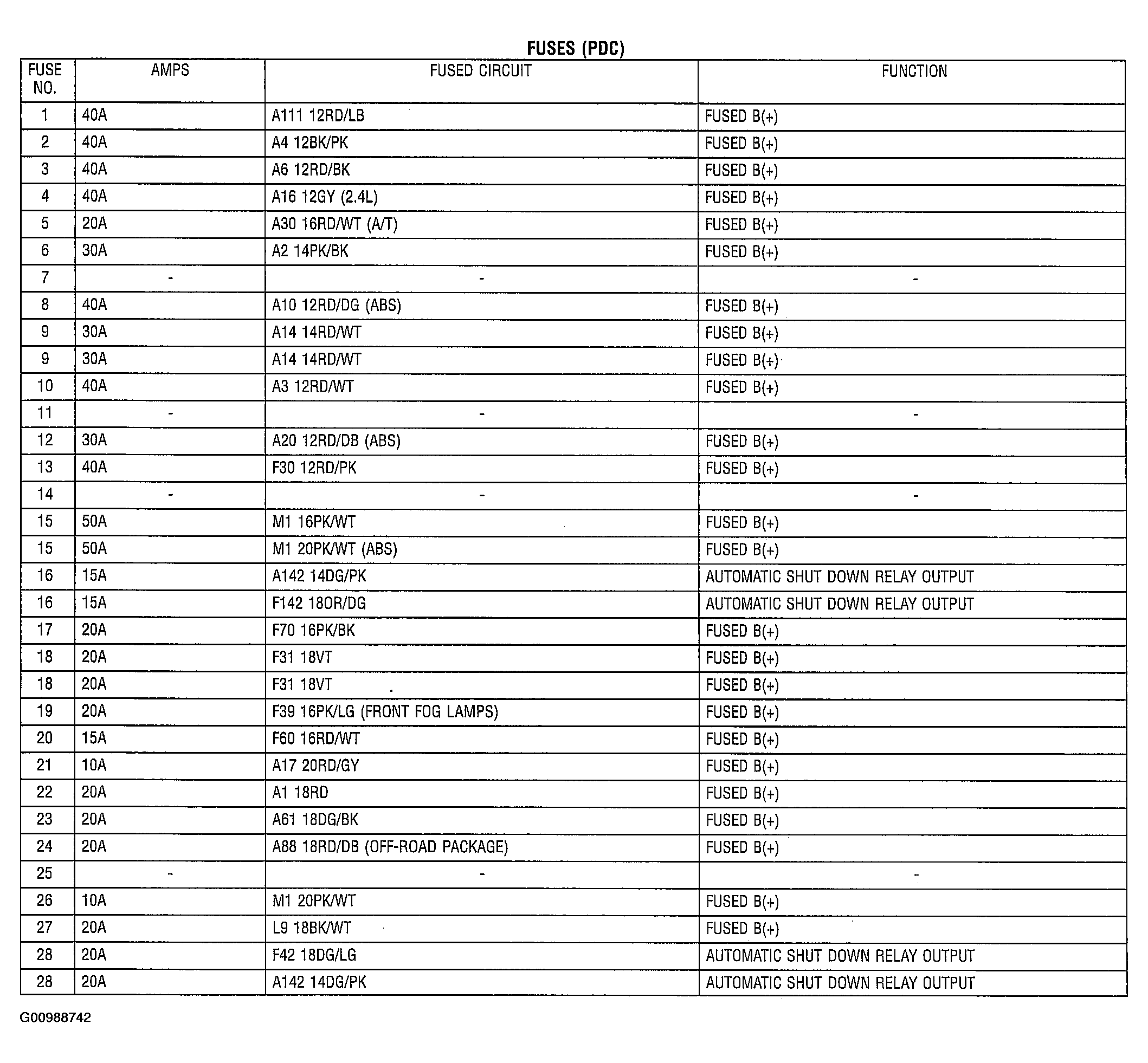

Fig 1: Identifying Fuses (PDC)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
