Ignition Switch - 10 Way

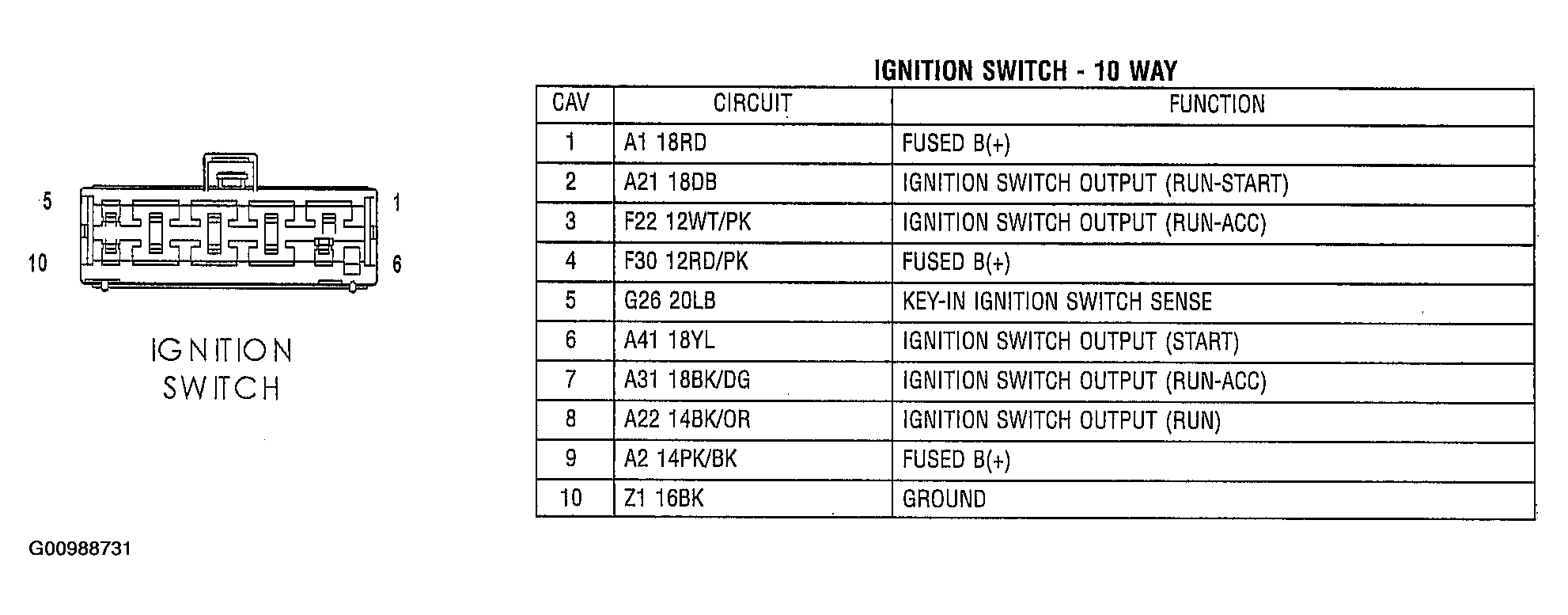

Fig 1: Identifying Ignition Switch - 10 Way
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
