*Engine Cranks Does Not Start: Testing

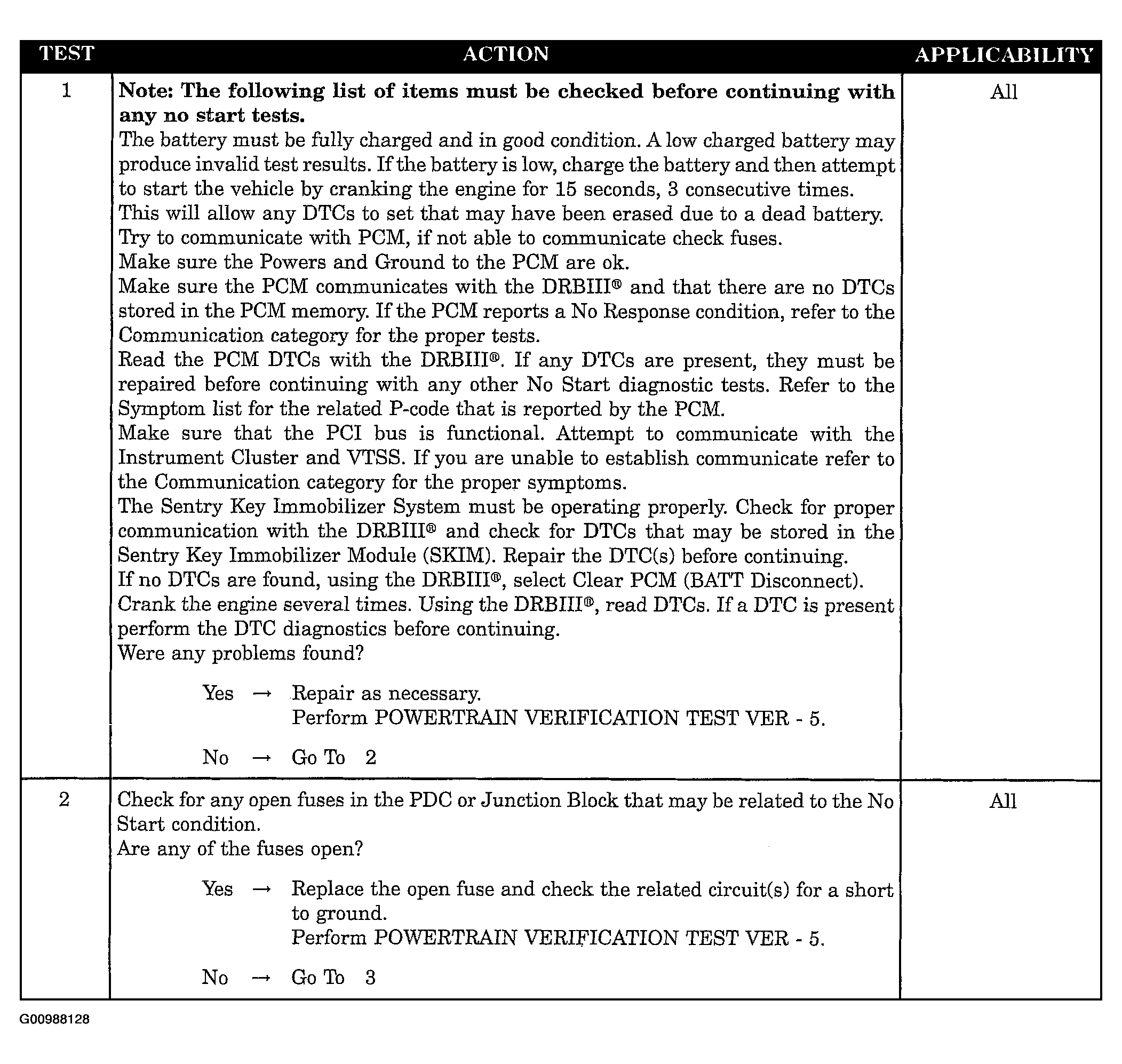

Fig 1: Testing: Engine Cranks Does Not Start (1 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

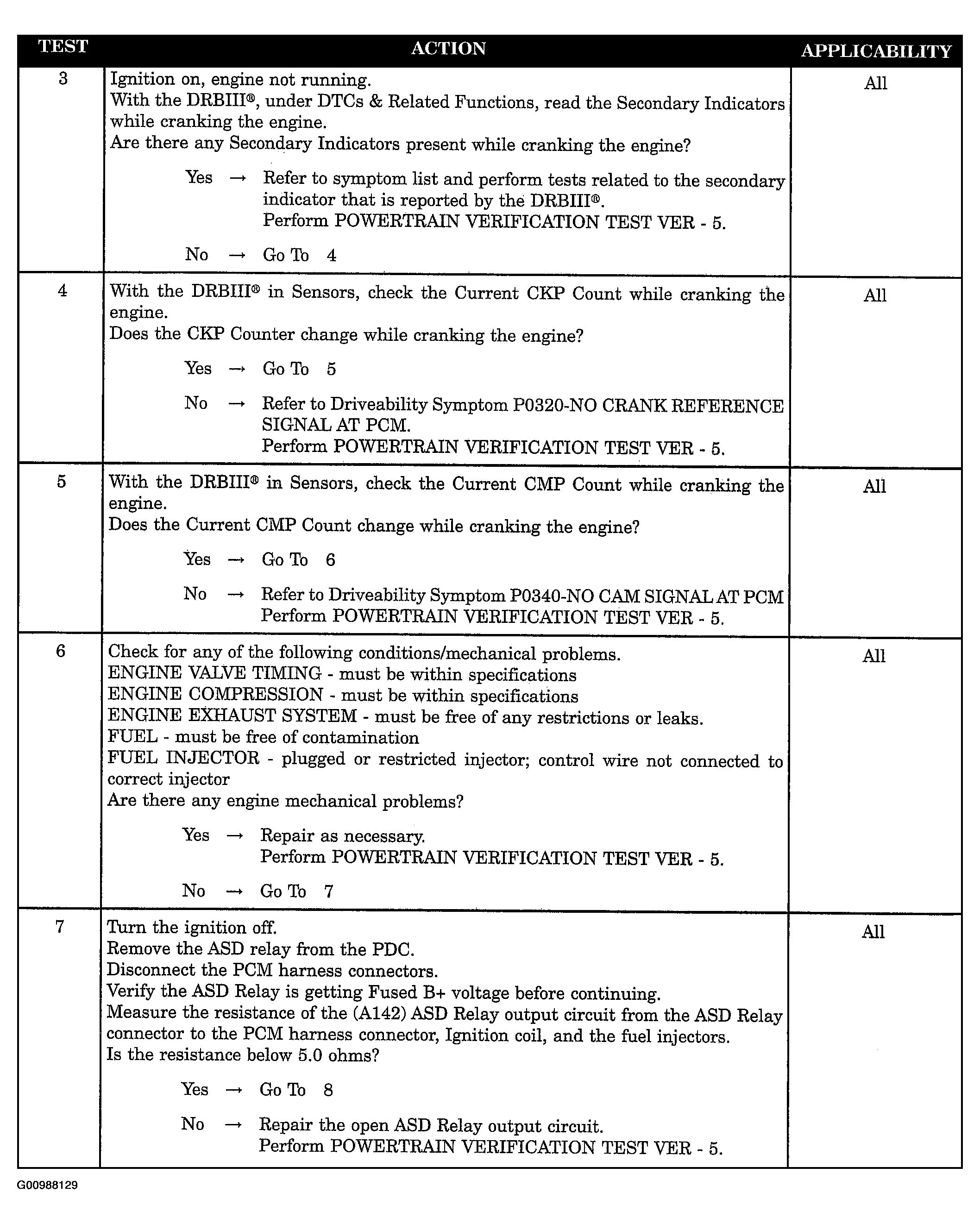

Fig 2: Testing: Engine Cranks Does Not Start (2 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

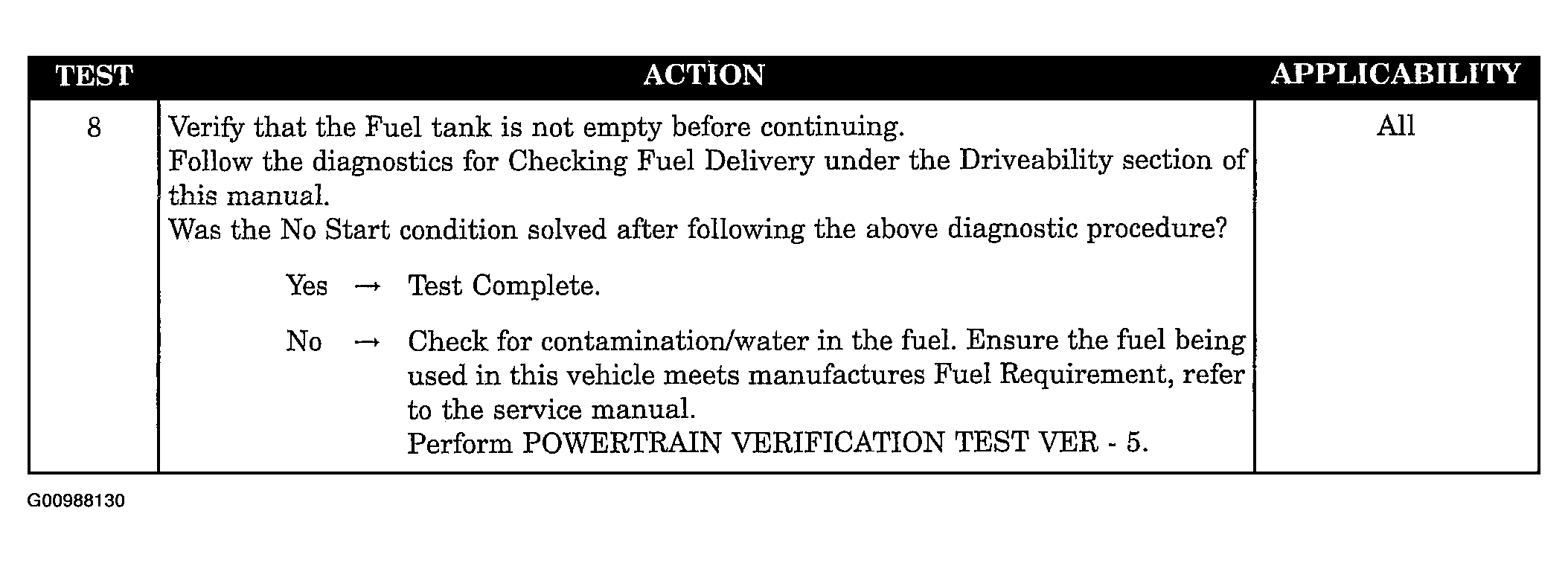

Fig 3: Testing: Engine Cranks Does Not Start (3 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.
