DTC P0622: Generator Field Not Switching Properly: Testing

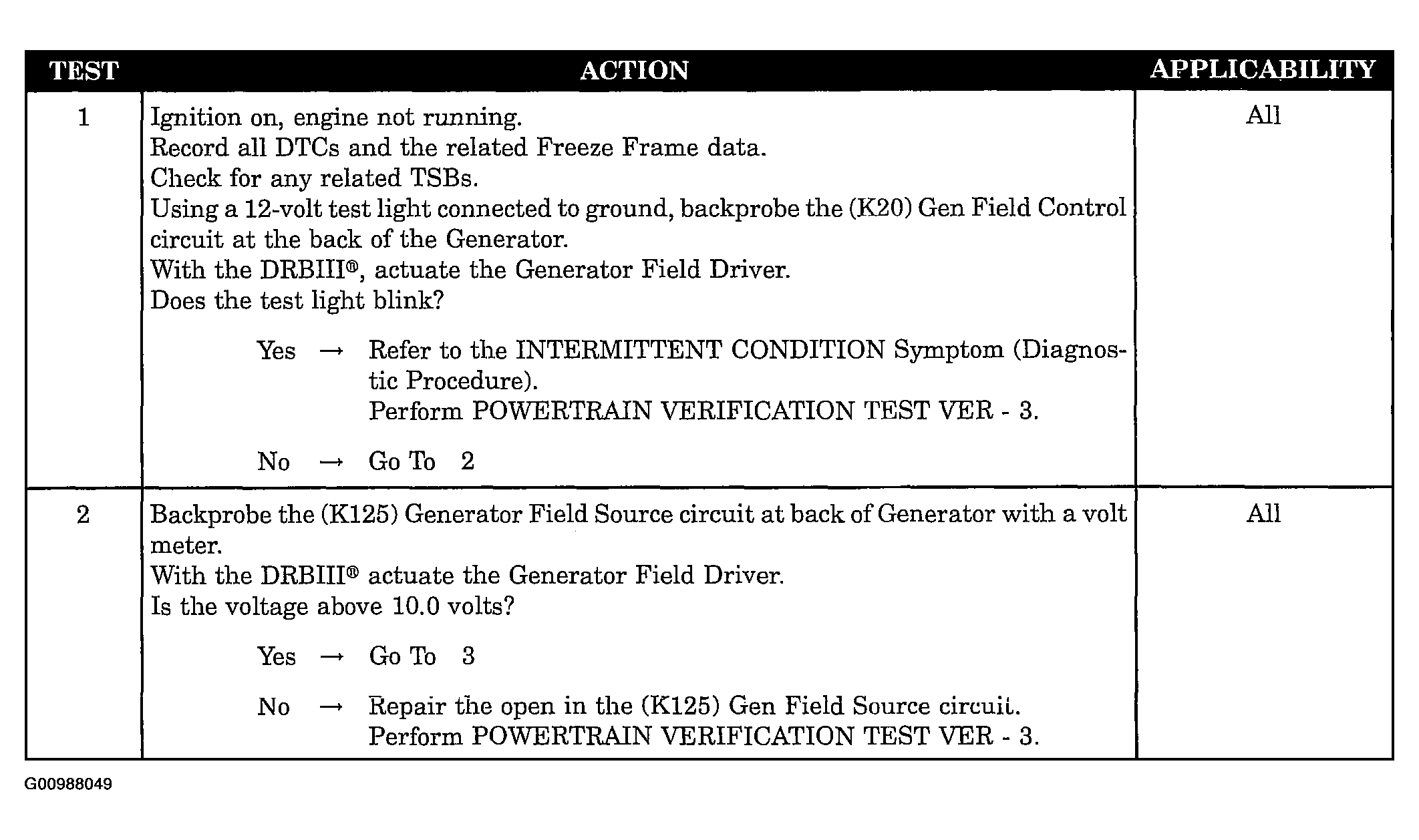

Fig 1: Testing: DTC P0622: Generator Field Not Switching Properly (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

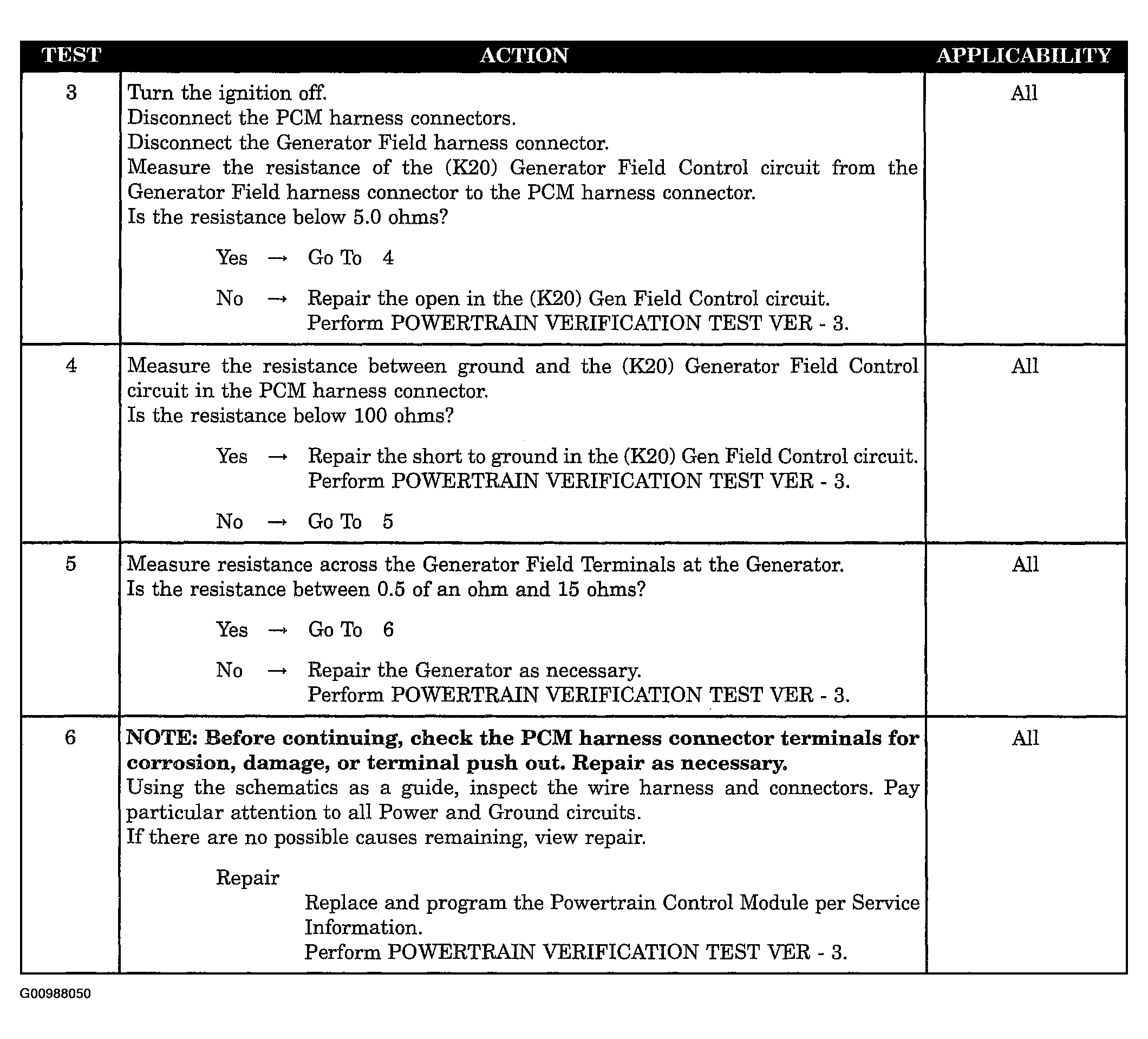

Fig 2: Testing: DTC P0622: Generator Field Not Switching Properly (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.
