Torque - Fuel Injection

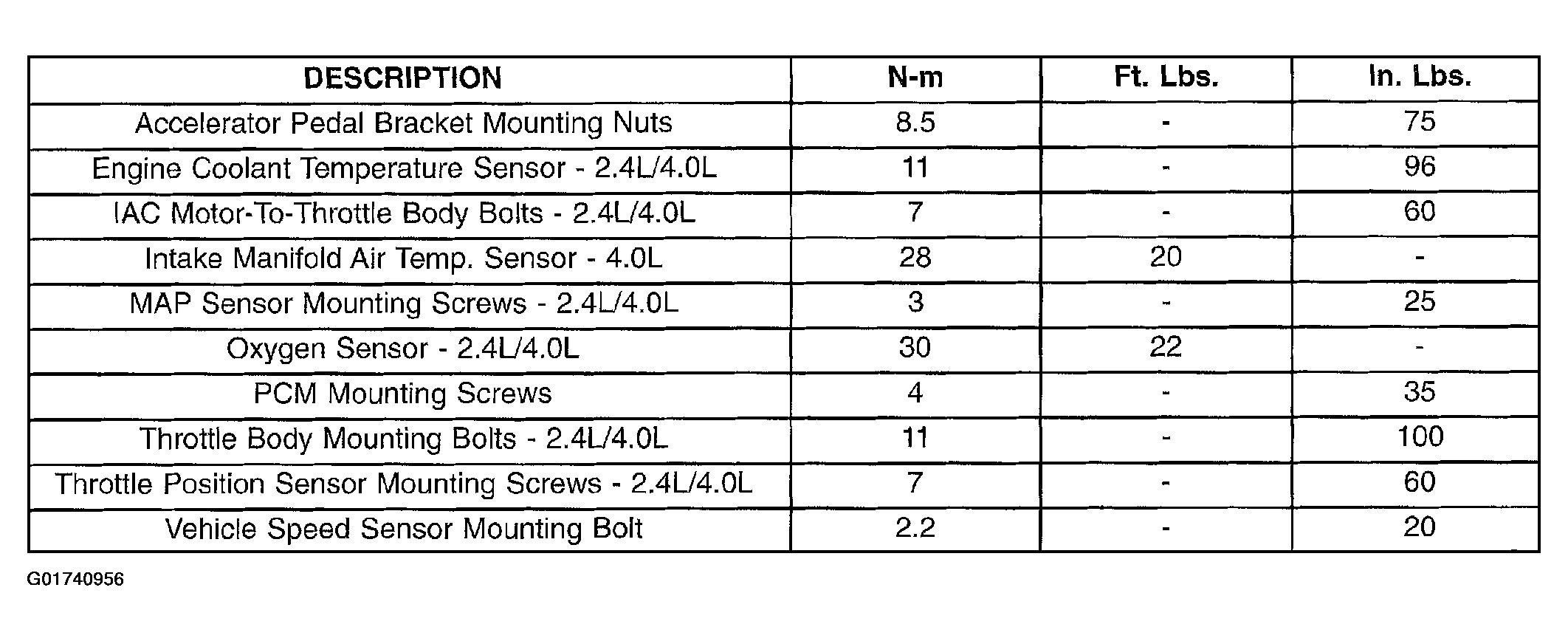

Fig 1: Fuel Injection Torque Specifications Table
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
