Intermittent Condition: Testing

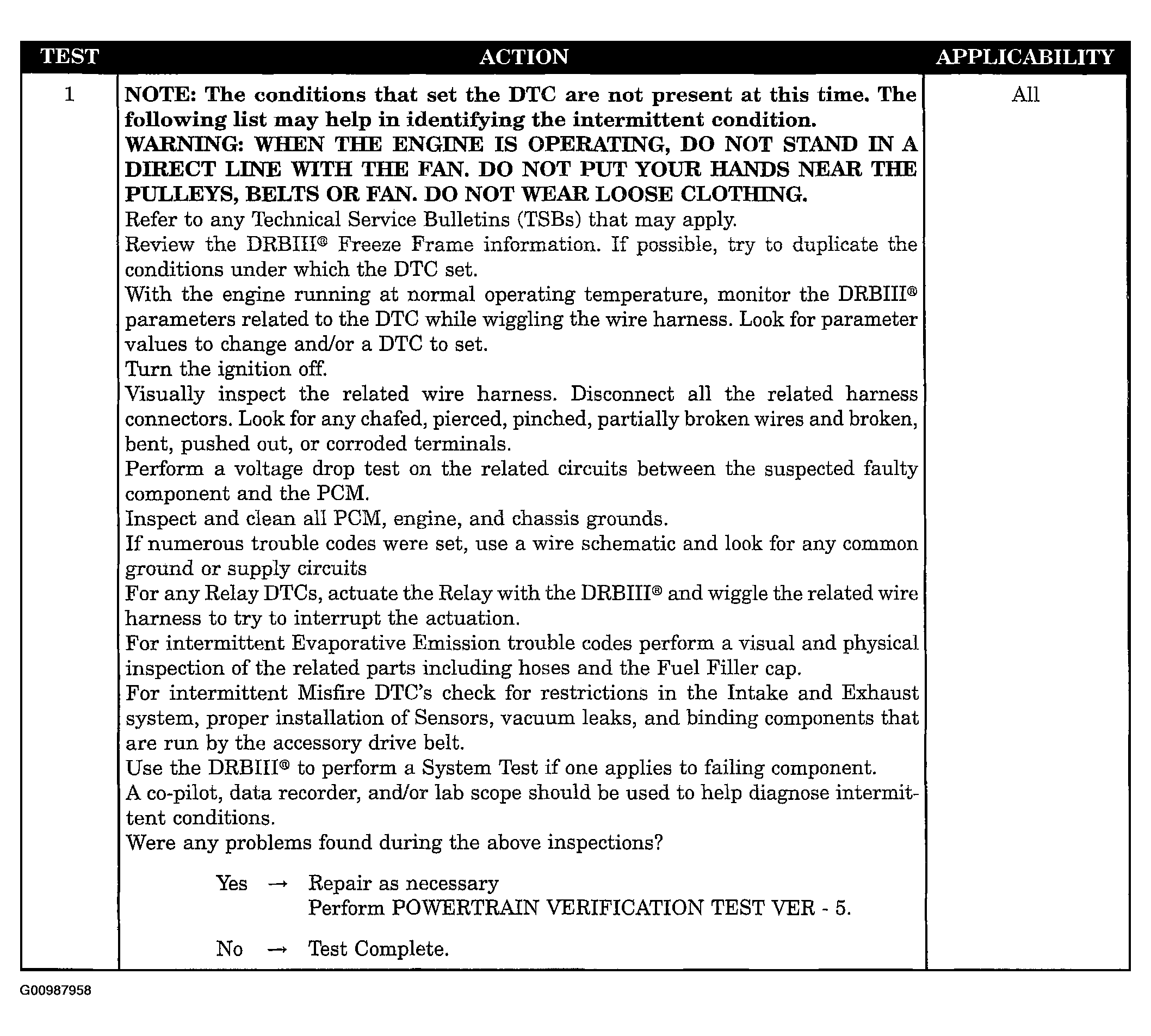

Fig 1: Testing: Intermittent Condition
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
