*Fuel Pressure Leak Down: Testing

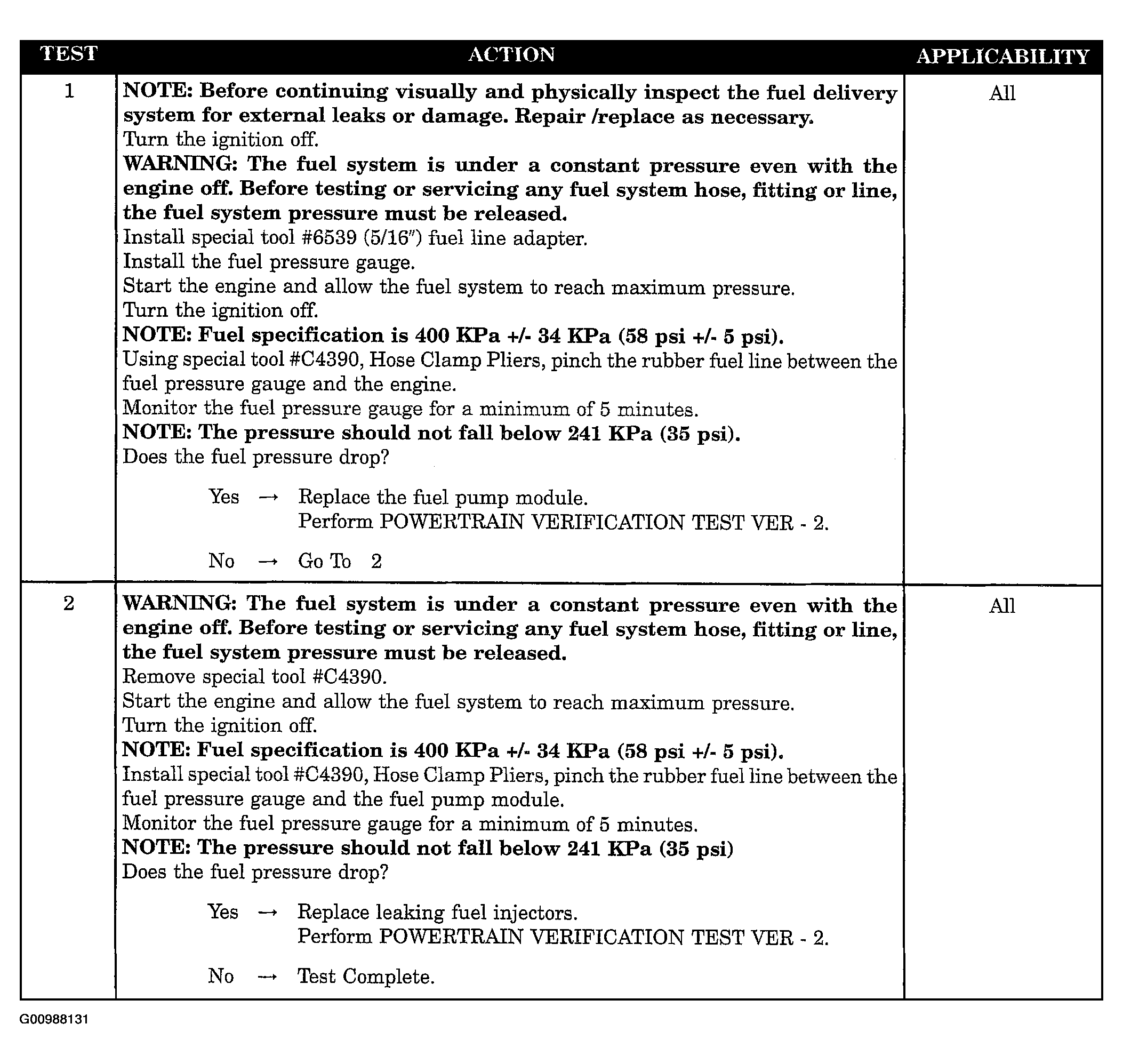

Fig 1: Testing: Fuel Pressure Leak Down
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
