Powertrain Verification Test VER-2

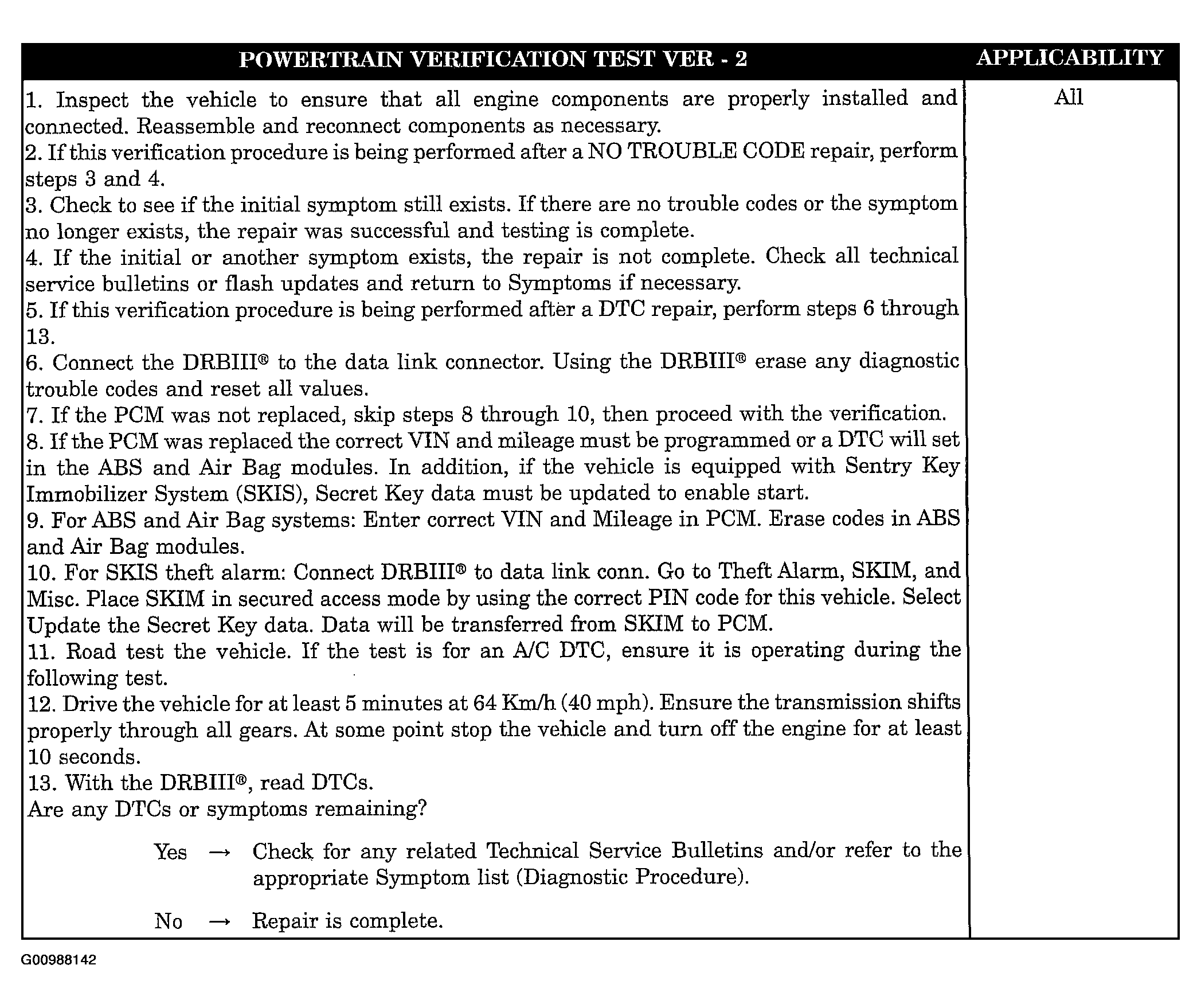

Fig 1: Powertrain Verification Test Ver-2
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
