Description - 2.4L

The Camshaft Position Sensor (CMP) on the 2.4L 4-cylinder engine is bolted to the right-front side of the cylinder head.

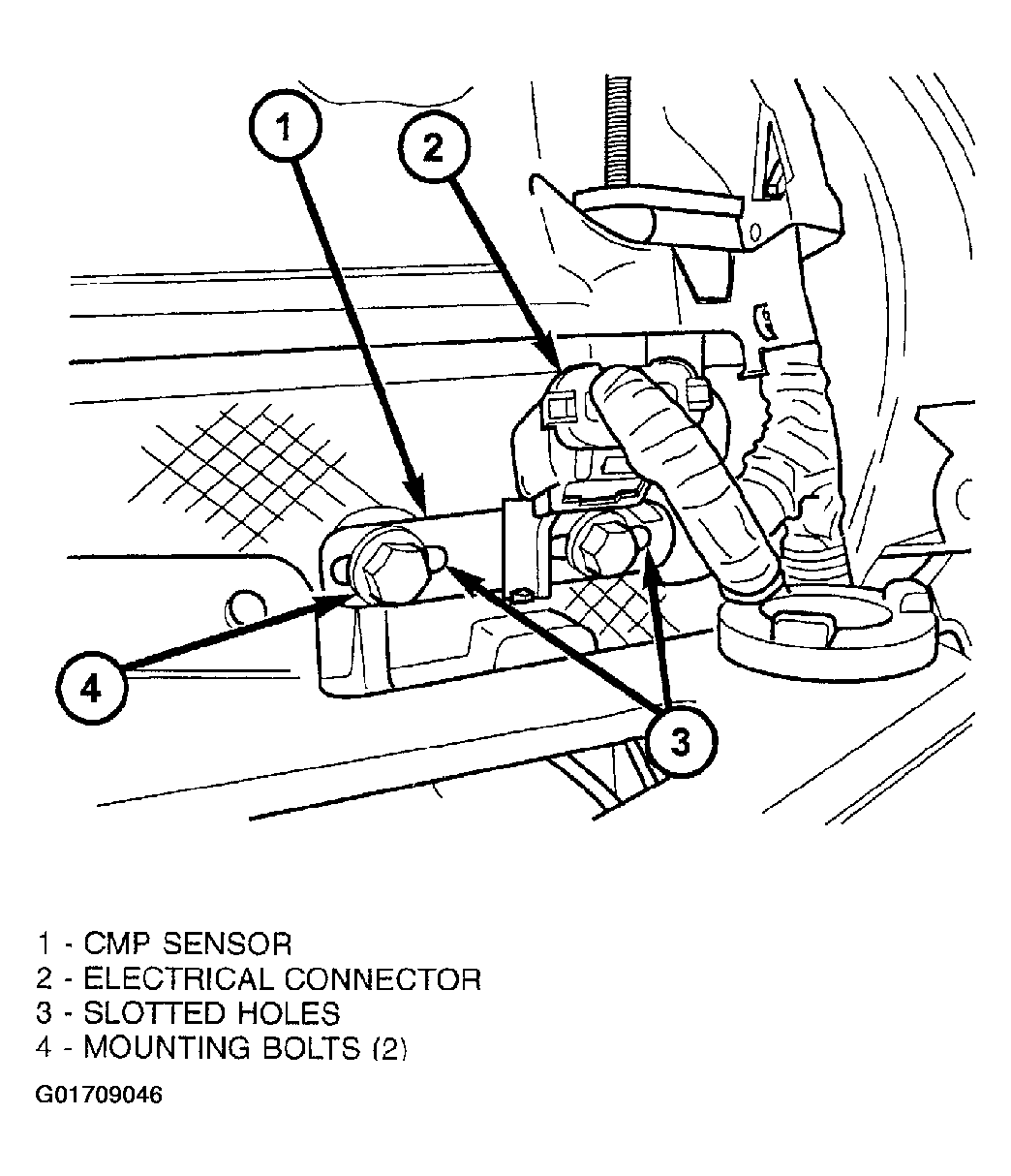

Fig 1: Locating CMP - 2.4L

Courtesy of DAIMLERCHRYSLER CORP.
