Removal - 2.4L

CAUTION: When disconnecting a high voltage cable from a spark plug or from the distributor cap, twist the rubber boot slightly (1/2 turn) to break it loose.

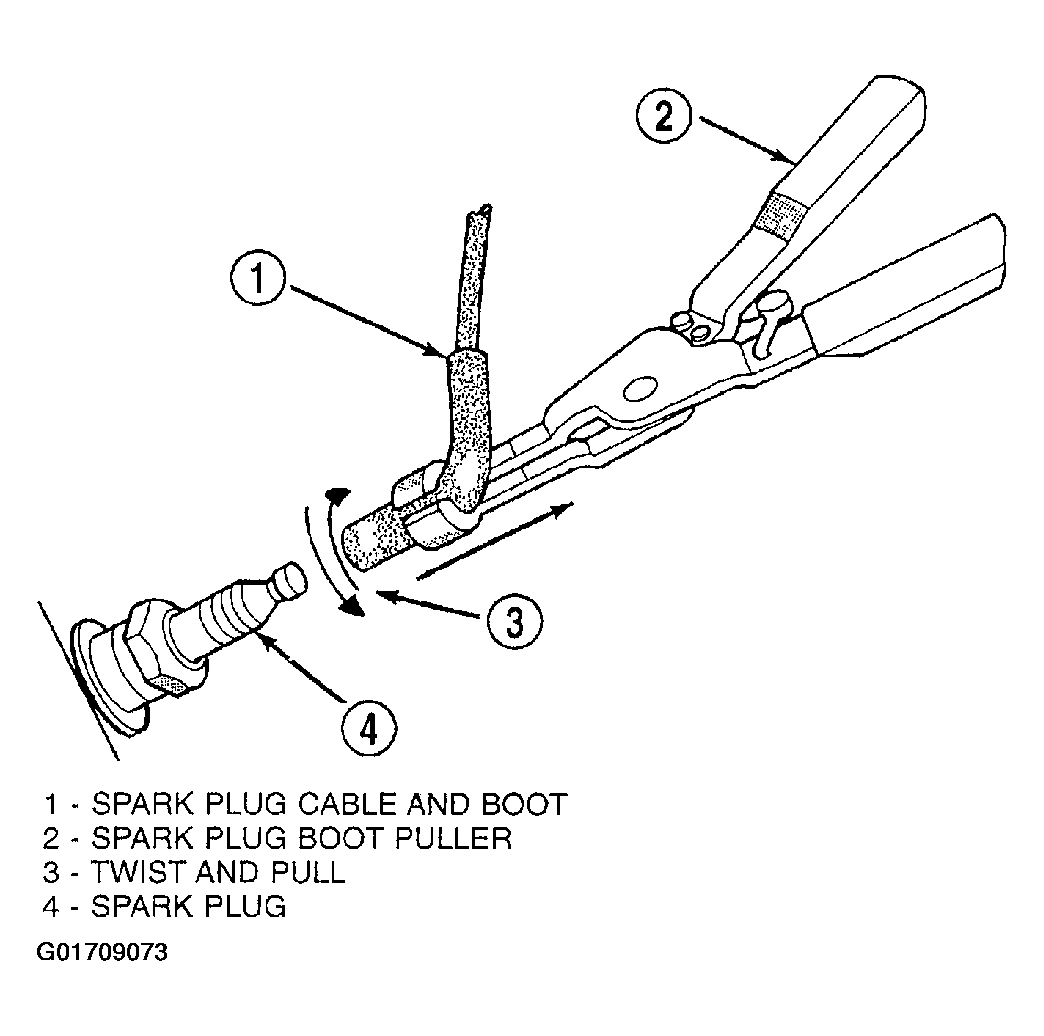

Fig 1: Removing Spark Plug Cable
G01709073Courtesy of DAIMLERCHRYSLER CORP.
  1. Grasp the boot (not the cable) and pull it off with a steady, even force.
