*Checking A/C System Operation With No DTCS: Testing

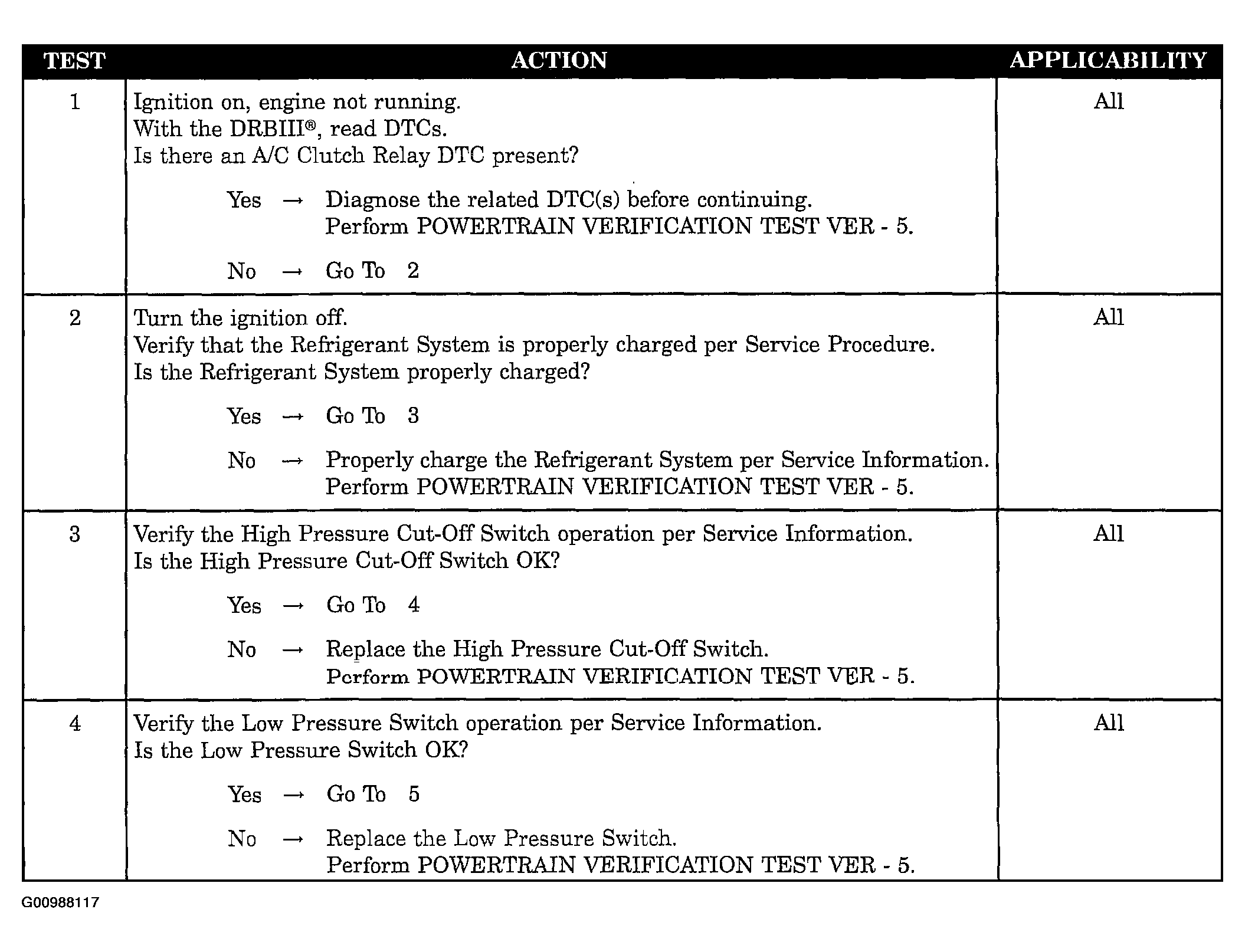

Fig 1: Testing: Checking A/C System Operation With No DTCS (1 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

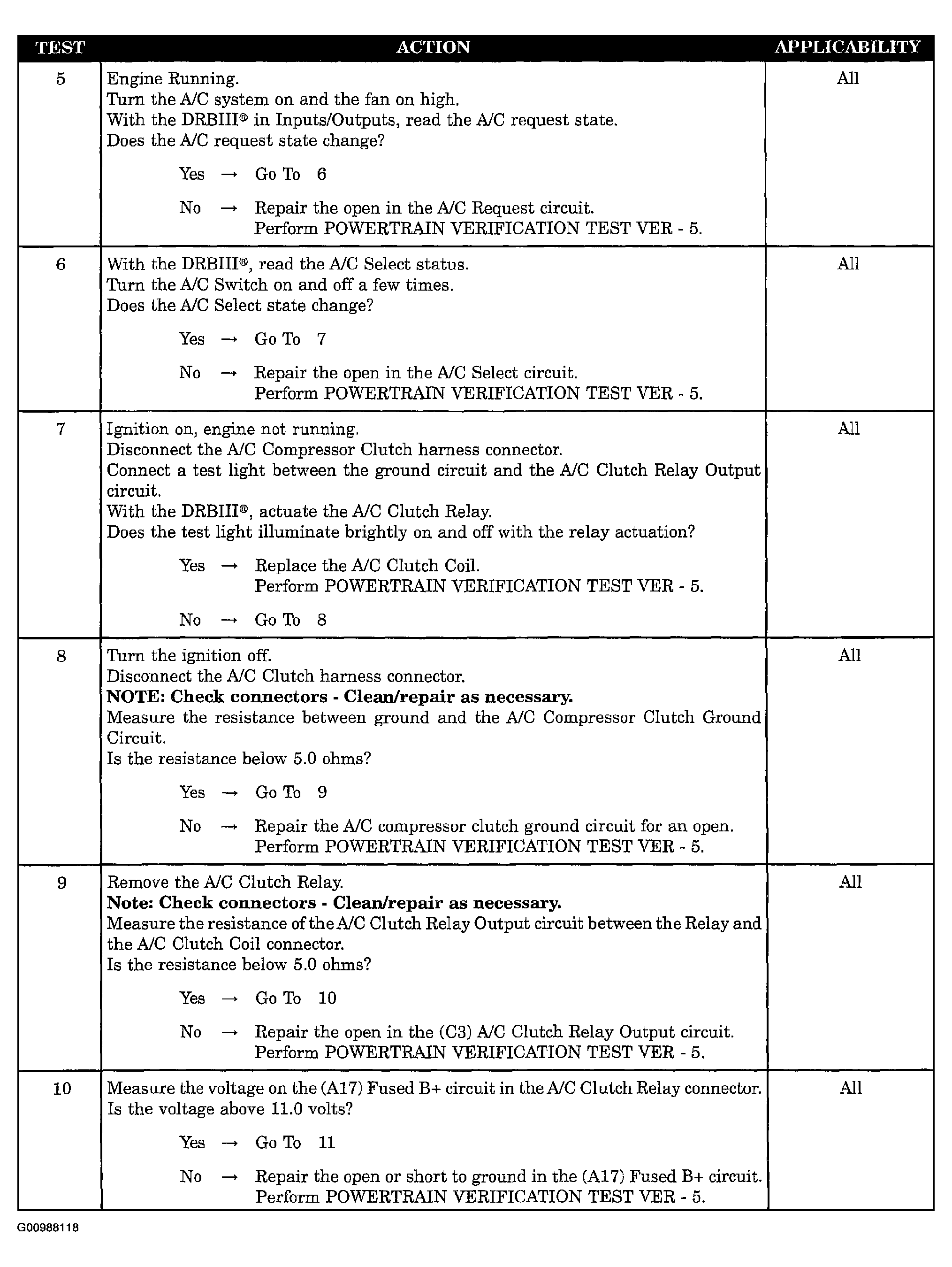

Fig 2: Testing: Checking A/C System Operation With No DTCS (2 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

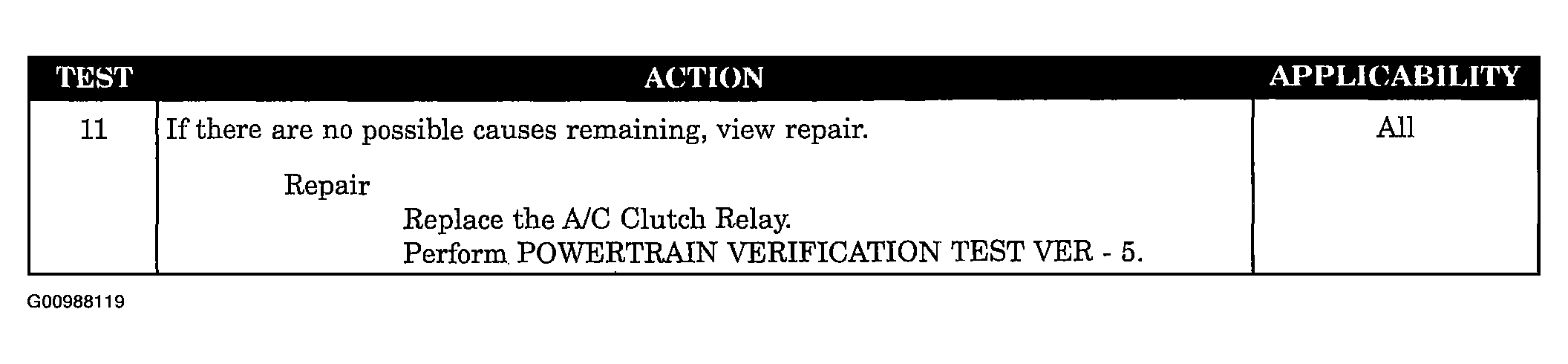

Fig 3: Testing: Checking A/C System Operation With No DTCS (3 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.
