Anti-Lock Brake System: G-Switch: Installation
CAUTION:

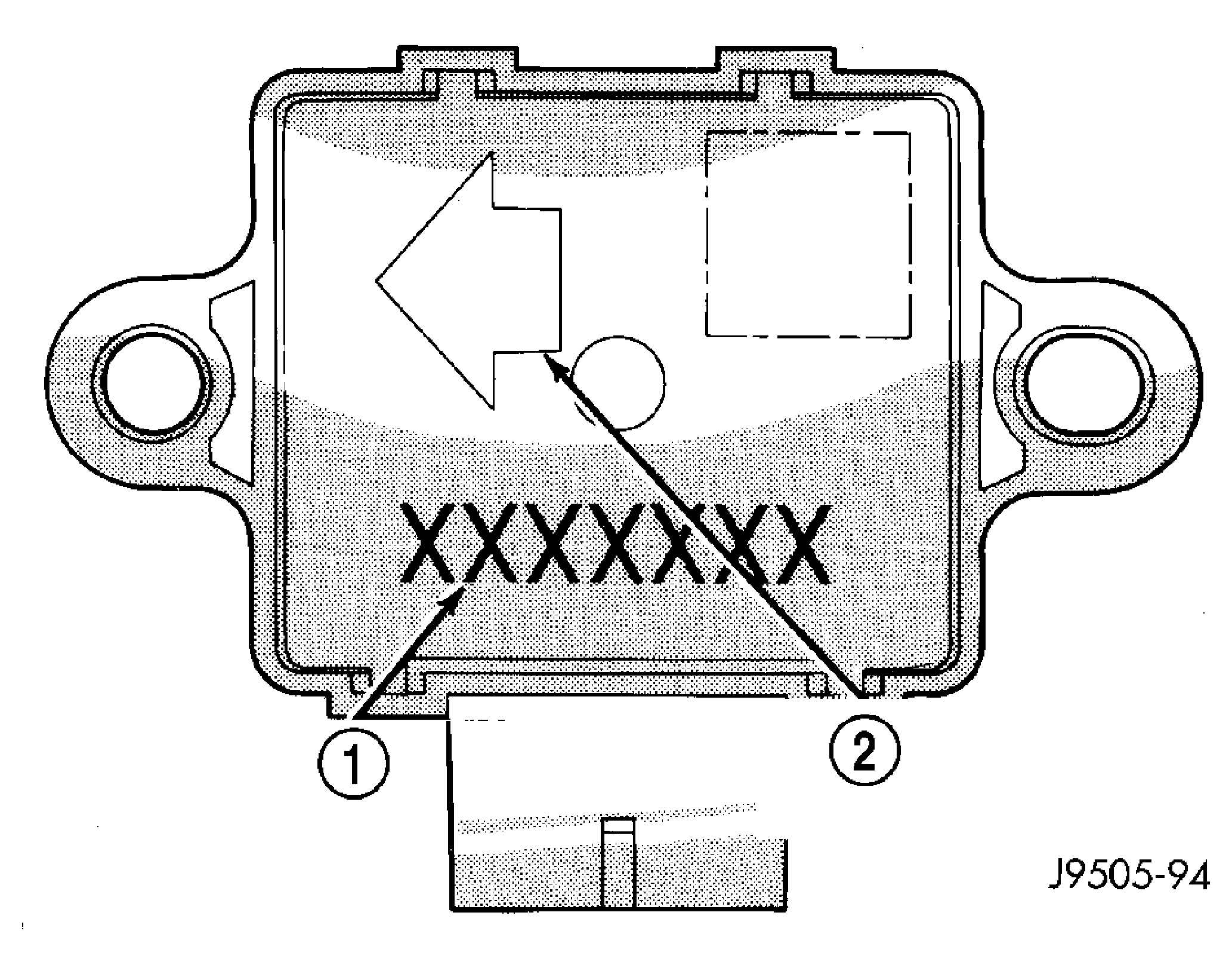

The mercury switch (inside the G-switch), will not function properly if the switch is installed incorrectly. Verify that the switch locating arrow is pointing to the front of the vehicle. See Figure.
- Position switch on mounting bracket.
- Install mounting bolts and tighten to 4-5 N.m (35-45 in. lbs.)
- Connect harness to switch.
- Place carpet back into position.
