Fuel Pump Module: Description: Notes

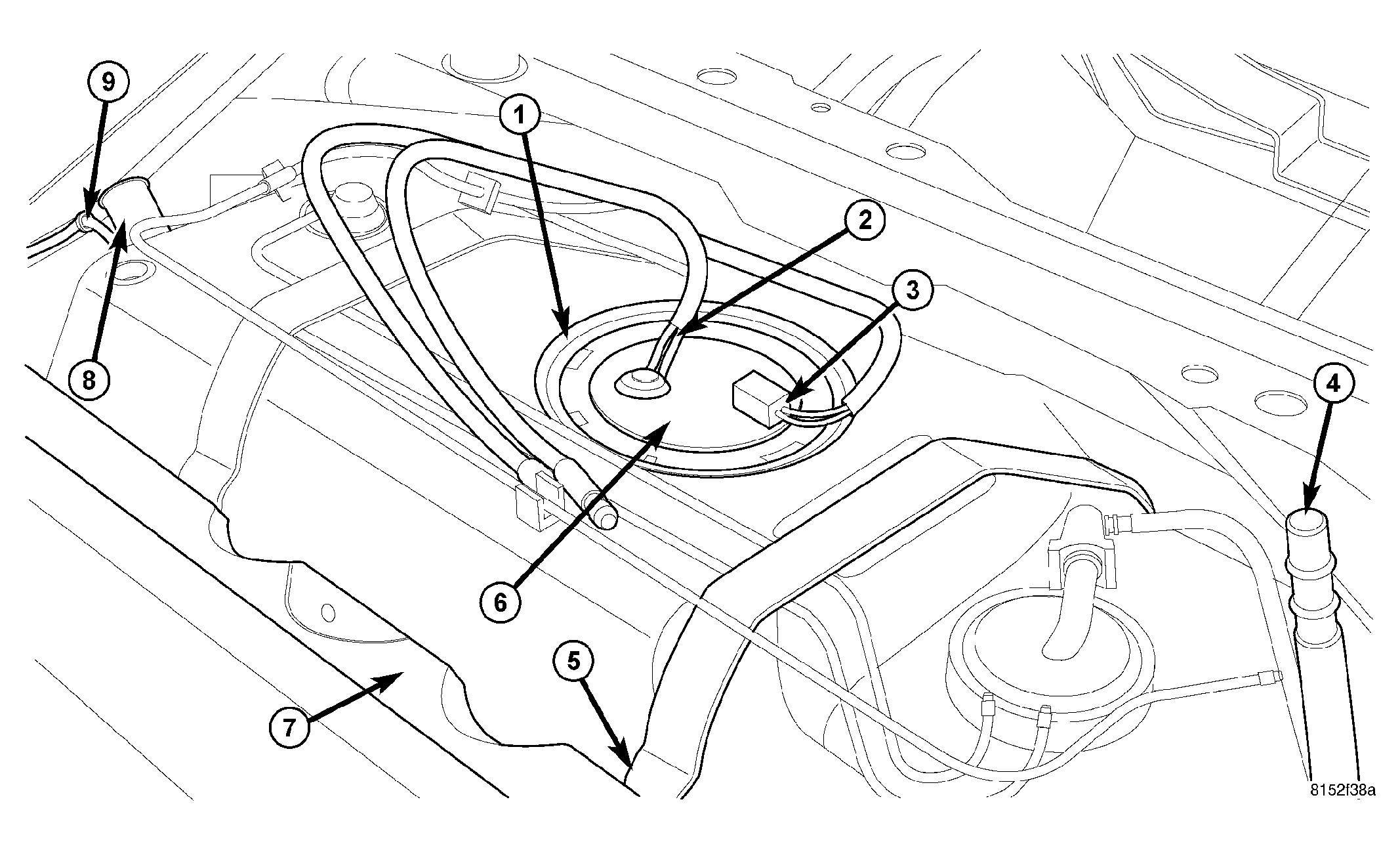

| 1 - FUEL PUMP MODULE LOCKRING | 7 - SKID PLATE |
| 2 - FUEL SUPPLY LINE | 8 - FUEL FILL FITTING |
| 3 - ELECTRICAL CONNECTOR | 9 - FUEL VENT FITTING |
| 4 - VAPOR LINE | - |
| 5 - FUEL TANK MOUNTING STRAPS (2) | - |
| 6 - FUEL PUMP MODULE ASSEMBLY | - |
The fuel pump module assembly (6) is located on the top of the fuel tank. See Fig 1.
The module assembly (6) contains the following components:
- An internal fuel filter
- A separate fuel pick-up, or inlet filter
- A fuel pressure regulator (4)
- An electric fuel pump
- A lockring to retain pump module to tank
- A soft gasket between tank flange and module
- A fuel gauge sending unit (fuel level sensor)
- Fuel line connection
If the fuel gauge sending unit, electrical fuel pump, primary inlet filter, fuel filter or fuel pressure regulator require service, the fuel pump module must be replaced.
