Map Sensor: Removal: 2.4L

The Manifold Absolute Pressure (MAP) sensor is mounted into the rear of the intake manifold. See Fig 1. An o-ring is used to seal the sensor to the intake manifold. See Fig 2.

1. Disconnect electrical connector at sensor.
2. Clean area around MAP sensor.
3. Remove sensor mounting screw (TORX head).
4. Remove MAP sensor from intake manifold.
5. Check condition of sensor o-ring. See Fig 2.

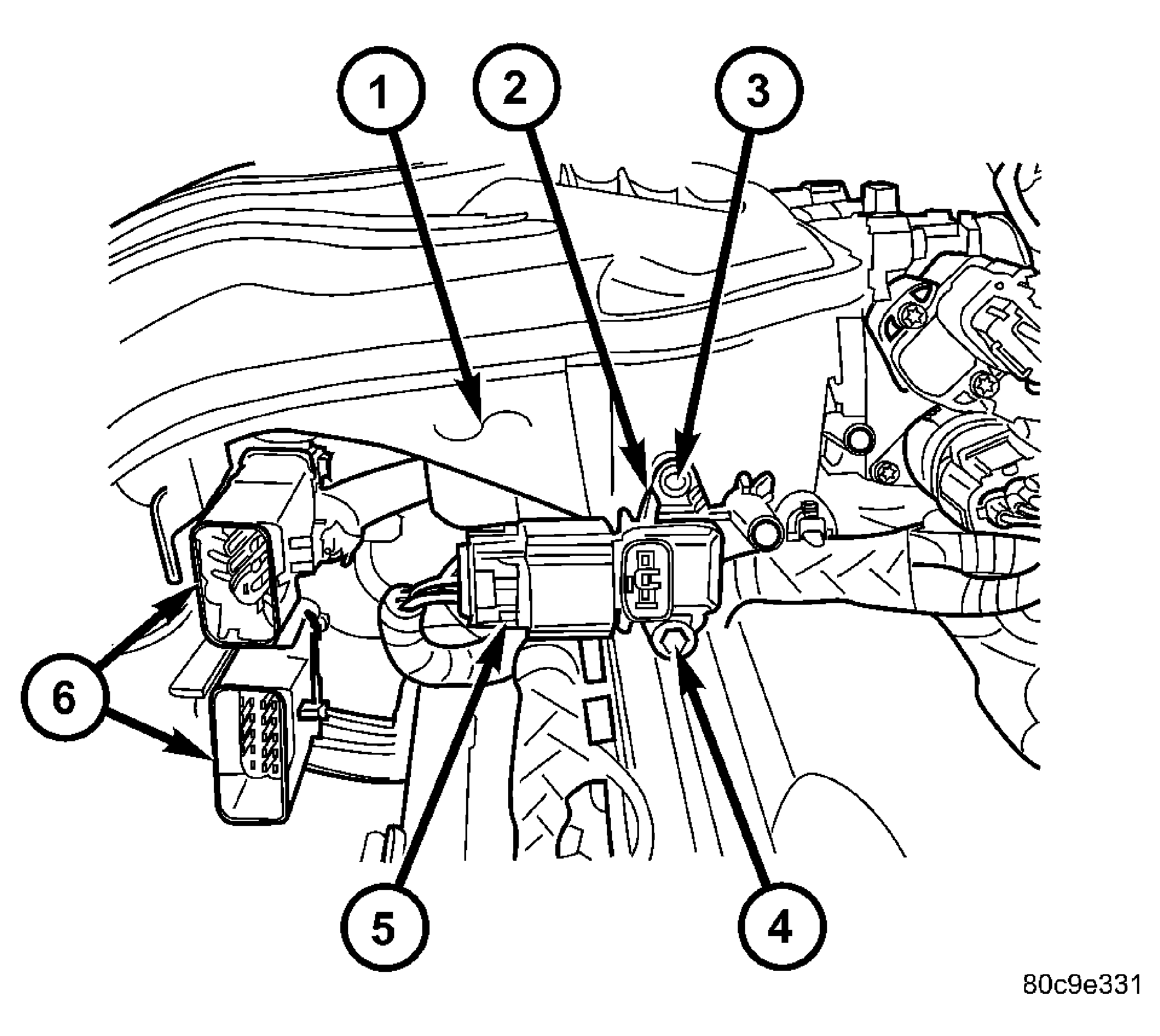

Fig 1: MAP Sensor Location - 2.4L

Courtesy of DAIMLERCHRYSLER CORP.

Fig 2: MAP Sensor O-Ring - 3.7L/4.7L

Courtesy of DAIMLERCHRYSLER CORP.
