Engine Firing Order - 2.4L 4-Cylinder
1 - 3 - 4 - 2. Refer to
Fig 1
.

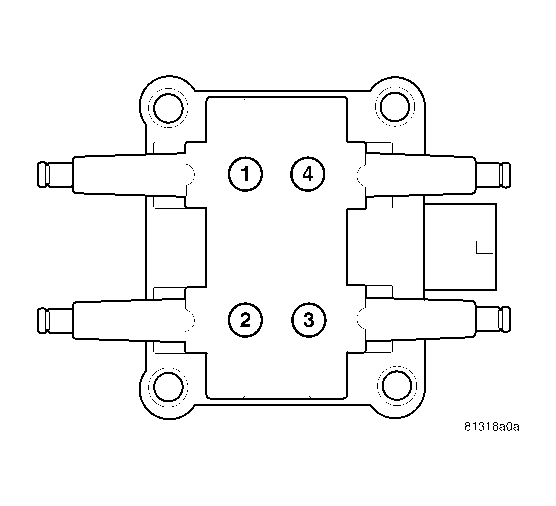

Fig 1: Firing Order - 2.4L
Courtesy of DAIMLERCHRYSLER CORP.
