Spark Plug Cable: Removal: 2.4L

CAUTION: When disconnecting a high voltage cable from a spark plug or from the distributor cap, twist the rubber boot slightly (1/2 turn) to break it loose. See Fig 1.

Grasp the boot (not the cable) and pull it off with a steady, even force.

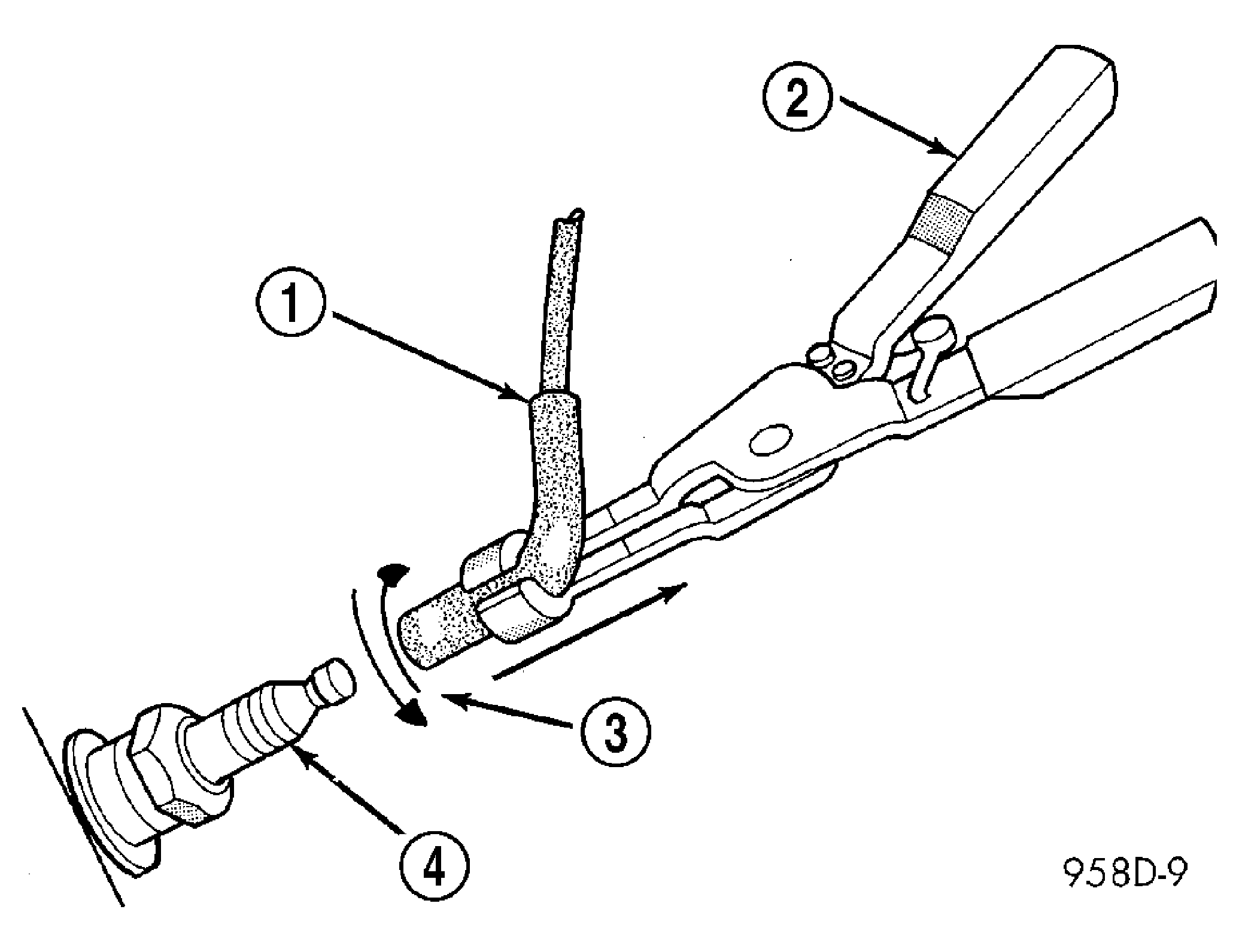

Fig 1: CABLE REMOVAL

Courtesy of DAIMLERCHRYSLER CORP.

1 - SPARK PLUG CABLE AND BOOT

2 - SPARK PLUG BOOT PULLER

3 - TWIST AND PULL

4 - SPARK PLUG
