Transmission Temperature Sensor Specifications

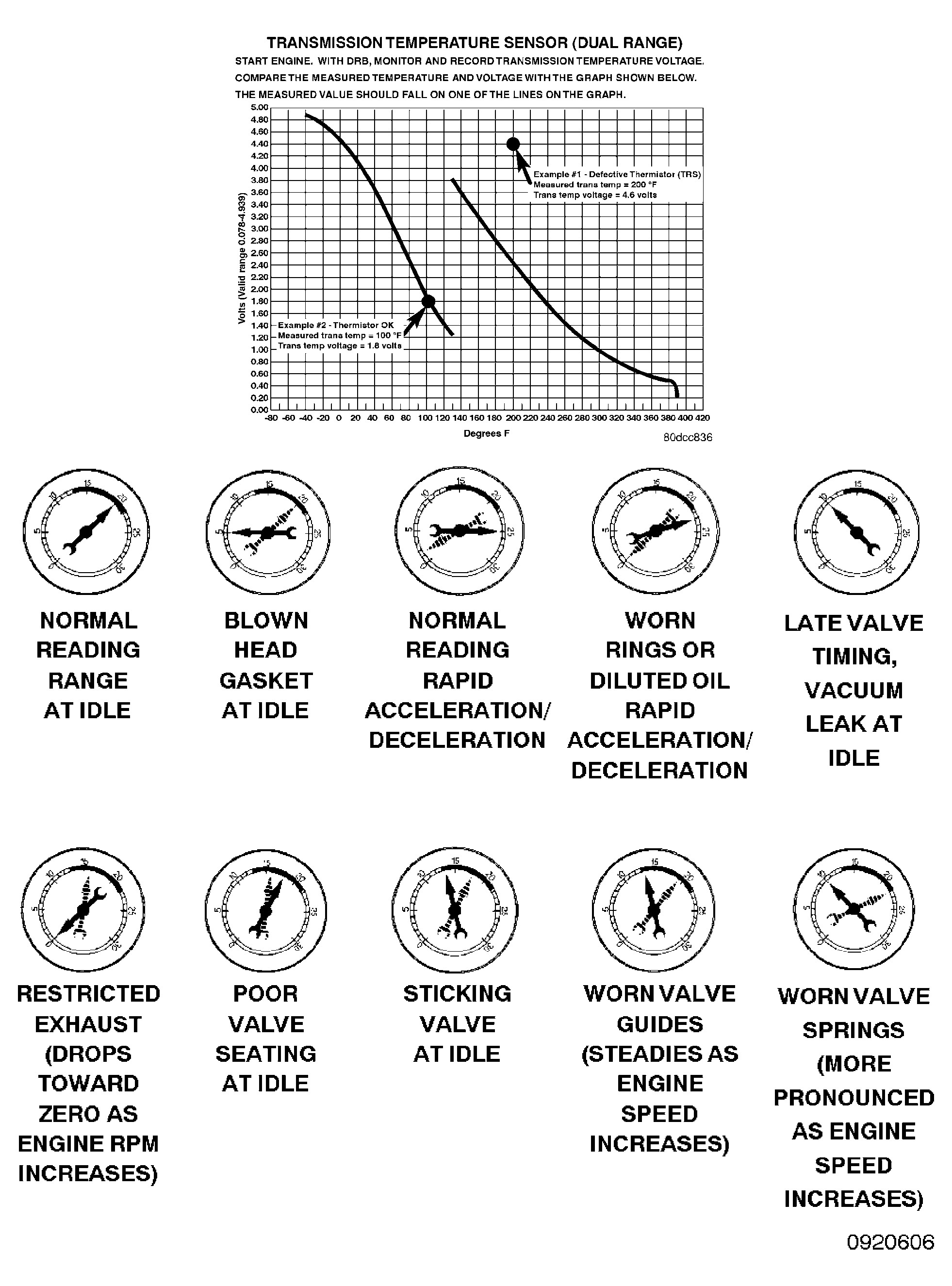

Fig 1: Transmission Temperature Sensor Graph
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
