Fuel System

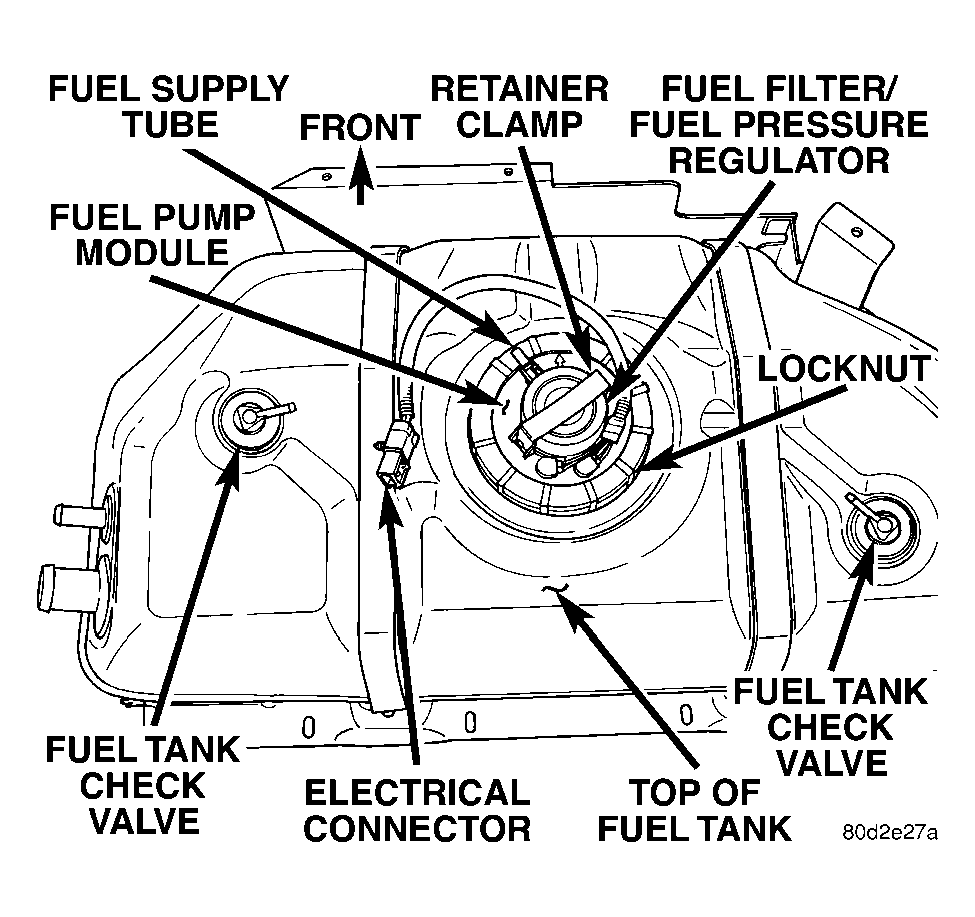

Fig 1: Identifying Fuel System Components Location

Courtesy of DAIMLERCHRYSLER CORP.

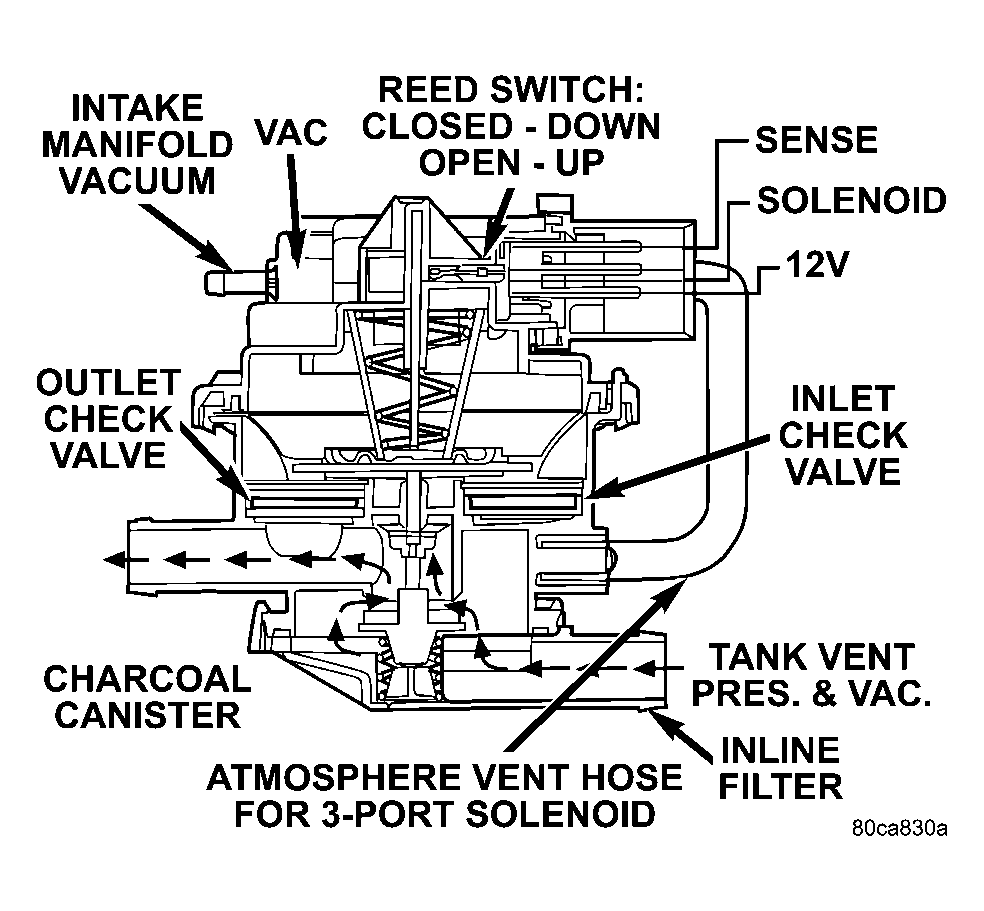

Fig 2: Identifying EVAP Canister

Courtesy of DAIMLERCHRYSLER CORP.

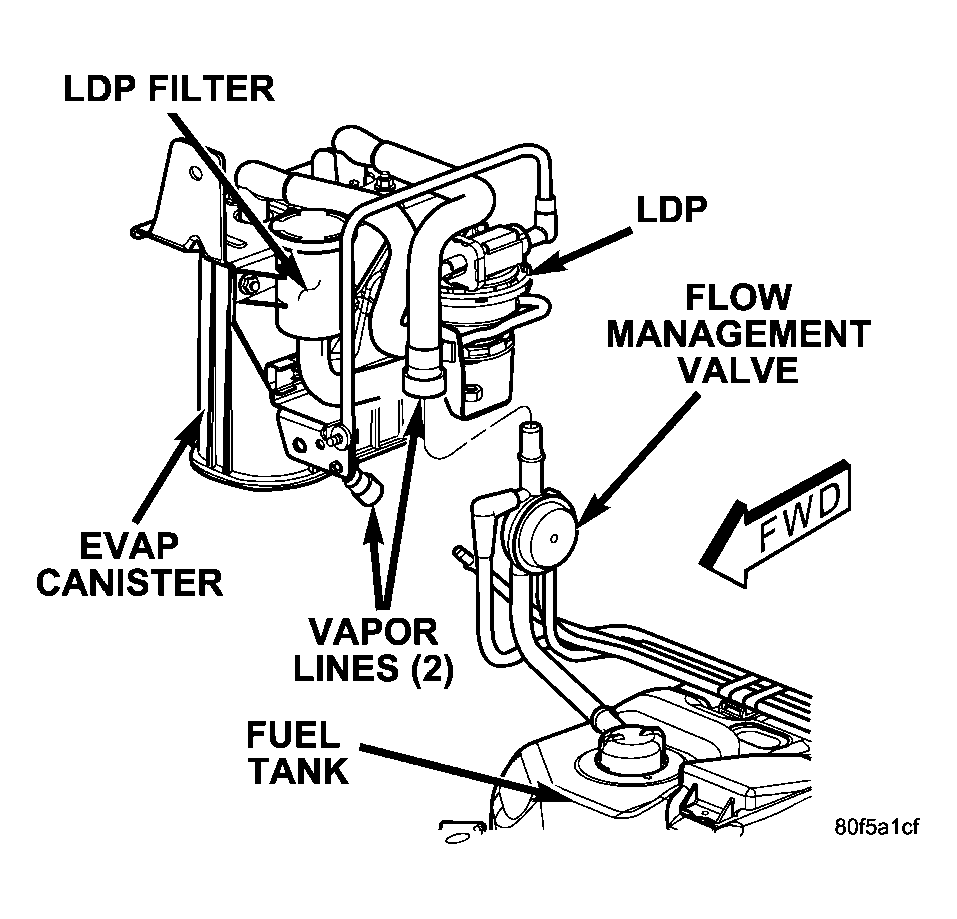

Fig 3: Identifying NVLD Components Location

Courtesy of DAIMLERCHRYSLER CORP.

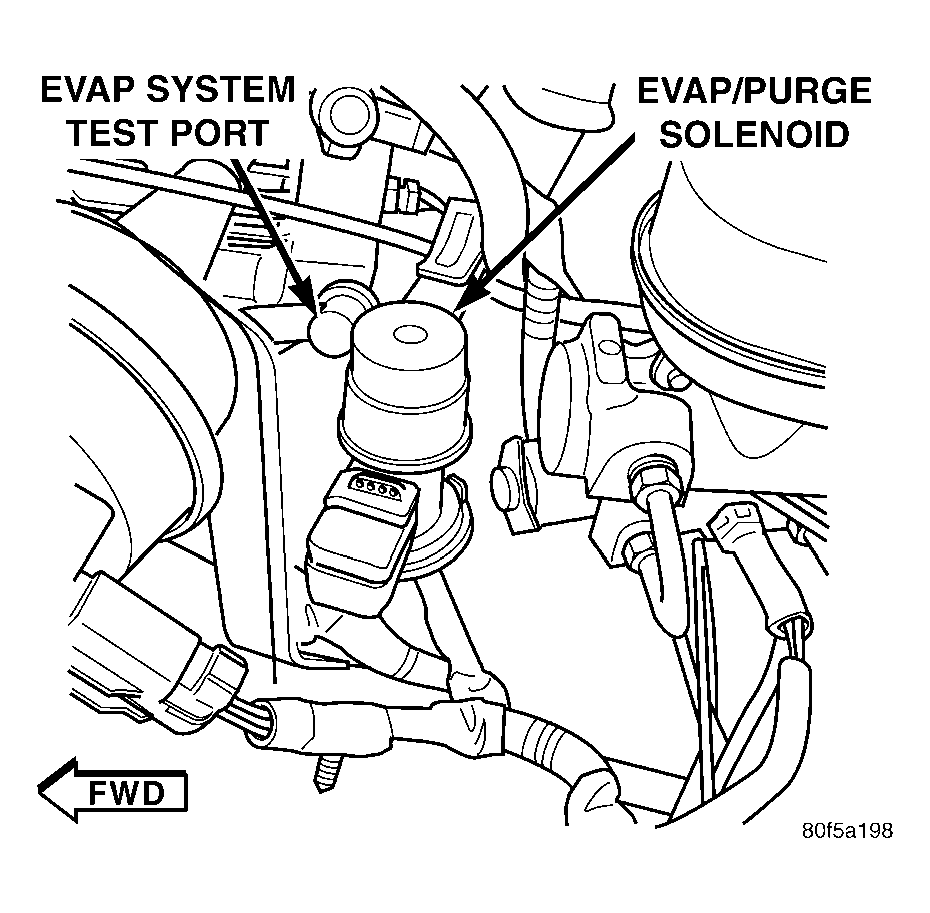

Fig 4: Identifying EVAP/Purge Solenoid

Courtesy of DAIMLERCHRYSLER CORP.

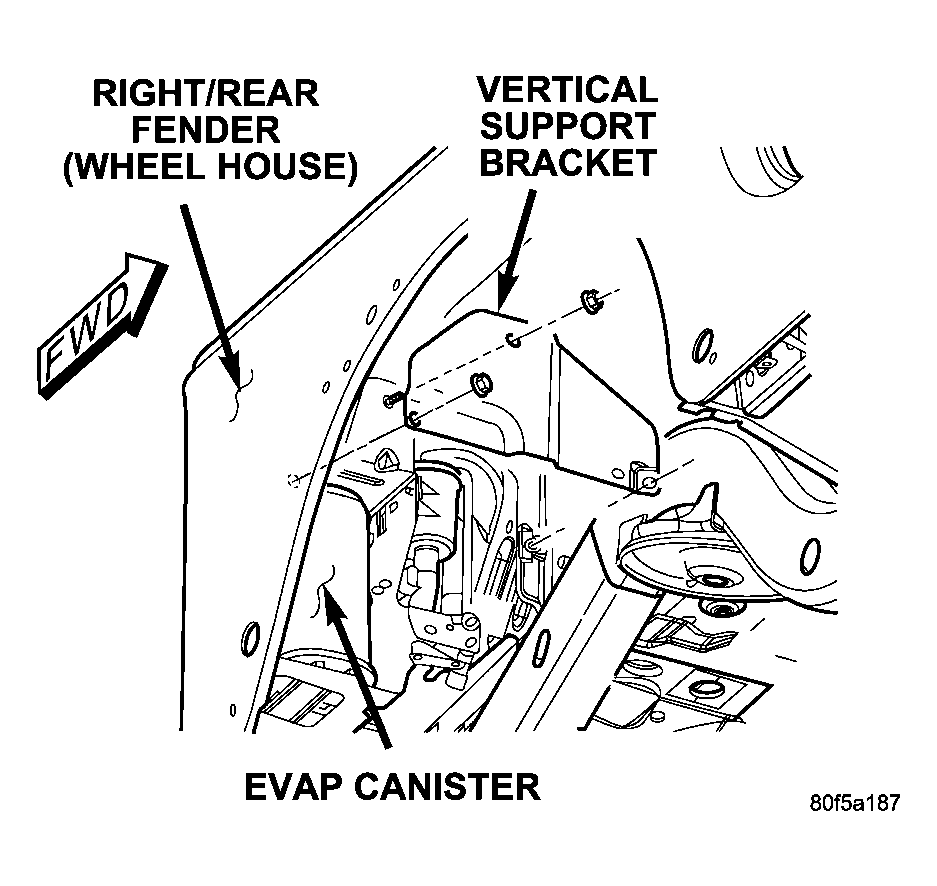

Fig 5: Identifying Fuel System Components Location

Courtesy of DAIMLERCHRYSLER CORP.
