Component Locations: Switches

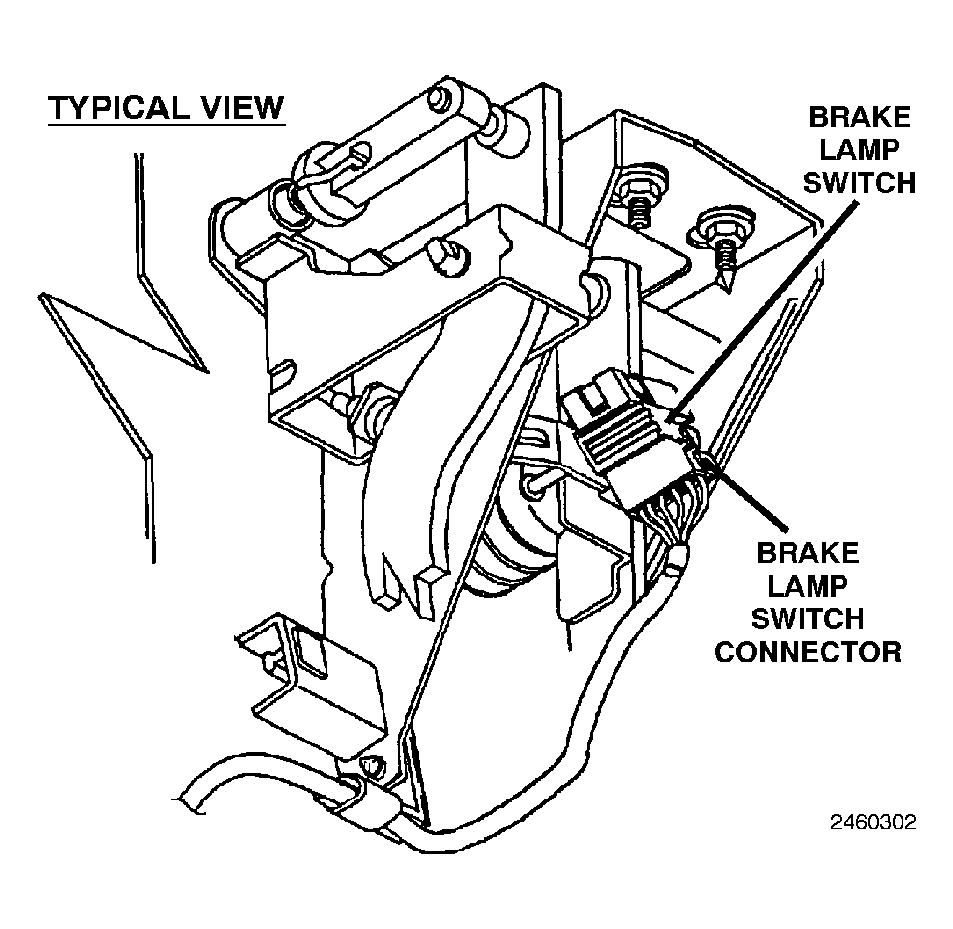

Fig 1: Identifying Brake Lamp Switch Connector
G04550566Courtesy of DAIMLERCHRYSLER CORP.

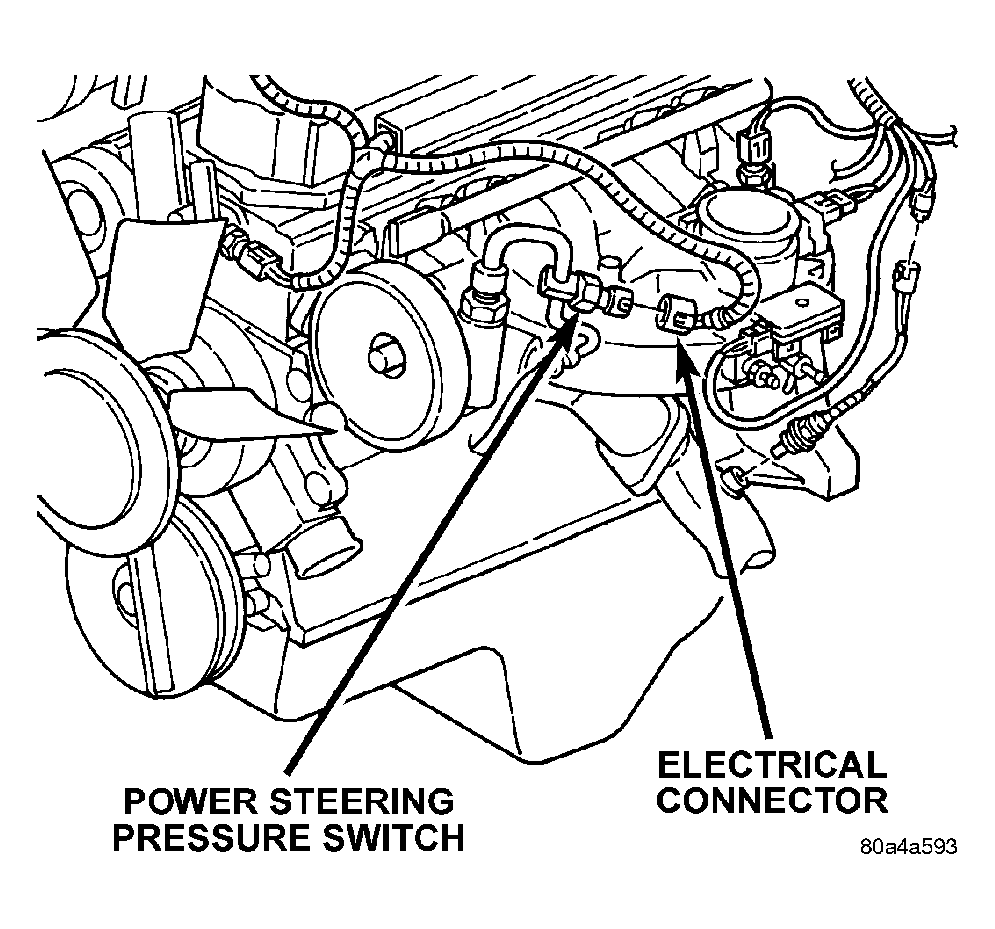

Fig 2: Identifying Power Steering Pressure Switch
G04550567Courtesy of DAIMLERCHRYSLER CORP.

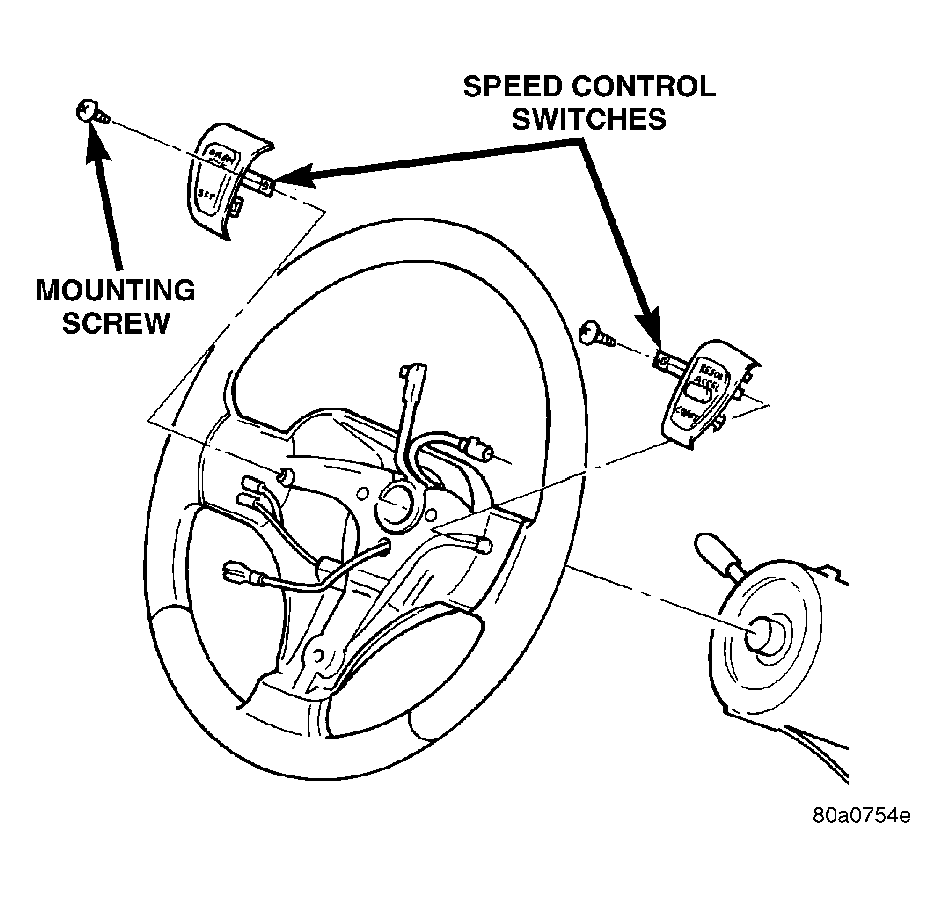

Fig 3: Identifying Speed Control Switches
G04550568Courtesy of DAIMLERCHRYSLER CORP.
