Restraints Control Systems: Restraints: Description: Notes

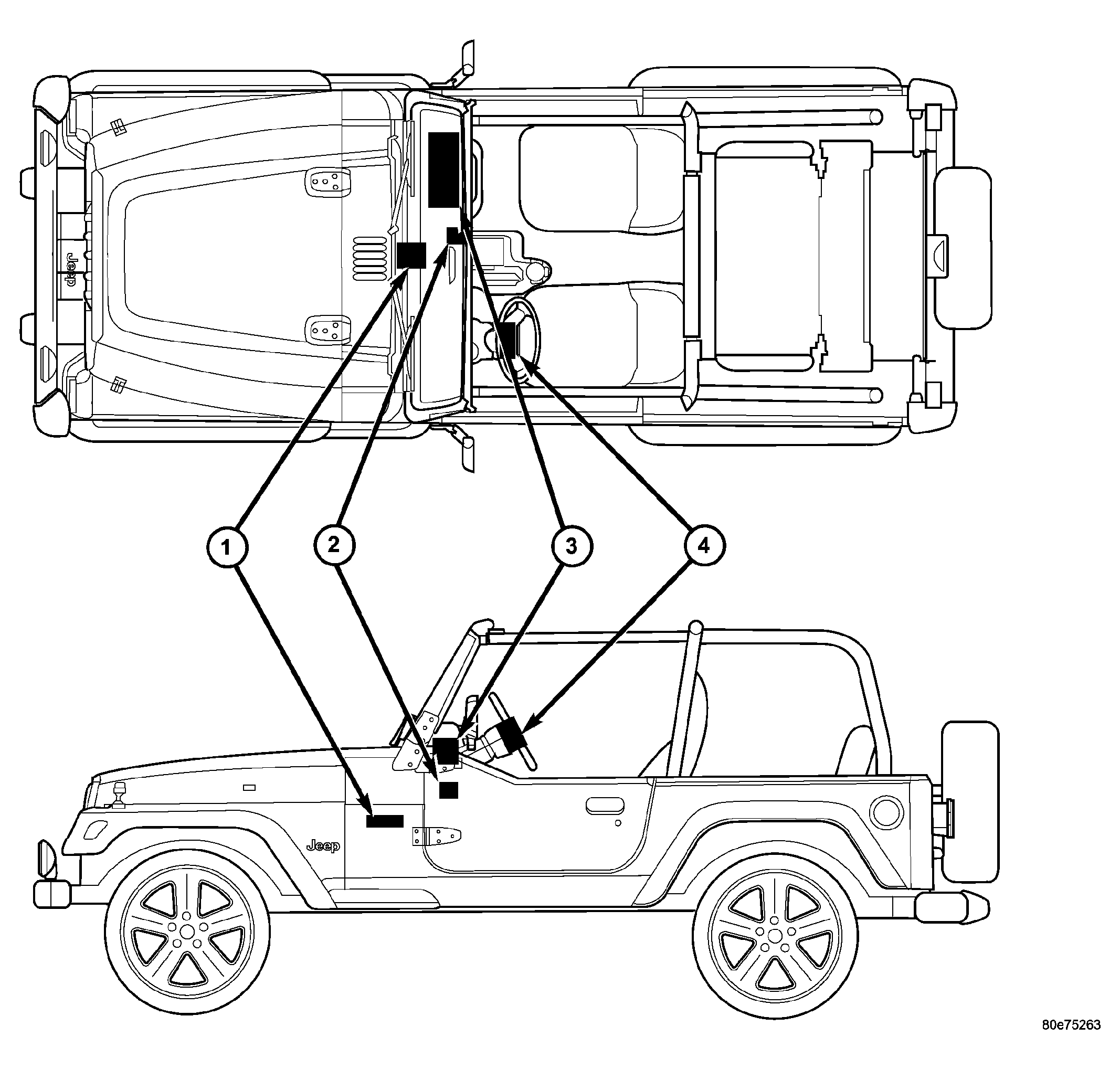

Fig 1: Supplemental Restraint System

Courtesy of DAIMLERCHRYSLER CORP.

1 - AIRBAG CONTROL MODULE

2 - PASSENGER AIRBAG ON/OFF SWITCH (W/O REAR SEAT ONLY)

3 - PASSENGER AIRBAG

4 - DRIVER AIRBAG

An occupant restraint system is standard factory-installed safety equipment on this model. Available occupant restraints for this model include both active and passive types. Active restraints are those which require the vehicle occupants to take some action to employ, such as fastening a seat belt; while passive restraints require no action by the vehicle occupants to be employed. See Fig 1.
