Anti-Lock Brake System: G-Switch: Removal

  1. From the drivers side lift carpet back in front of the console/shifter.
  2. Disconnect harness for switch.
  3. Remove mounting bolts and remove switch. See Fig 1.

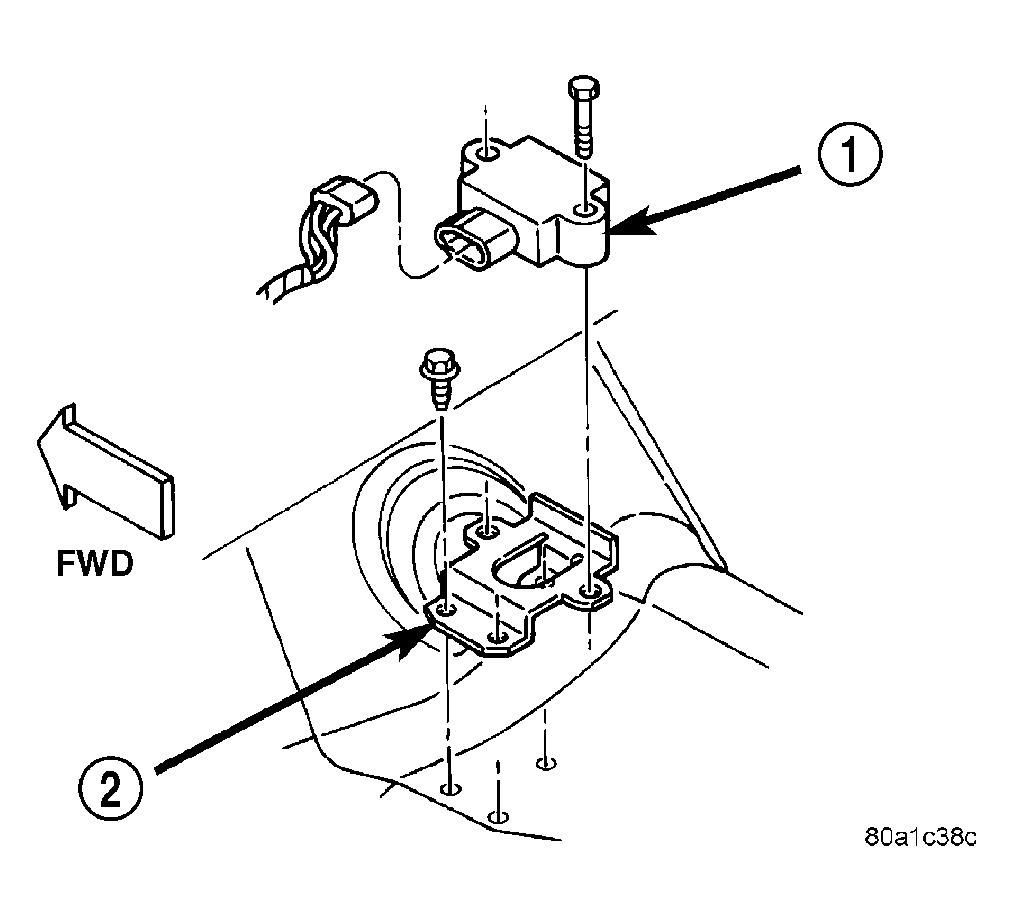

Fig 1: Removing G-Switch
GC0030373Courtesy of DAIMLERCHRYSLER CORP.
1 - ACCELERATION SWITCH
2 - MOUNTING BRACKET
