PCV Valve: Description: 2.4L

The 2.4L 4-cylinder engine is equipped with a closed crankcase ventilation system and a Positive Crankcase Ventilation (PCV) valve.

This system consists of:

a PCV valve attached to the left/front side of the valve cover. See Fig 1. It is secured with 1 bolt. An o-ring is used to seal valve to valve cover. See Fig 2. Another type of threaded PCV valve may be used. See Fig 3.
the air cleaner housing
tubes and hoses to connect the system components.

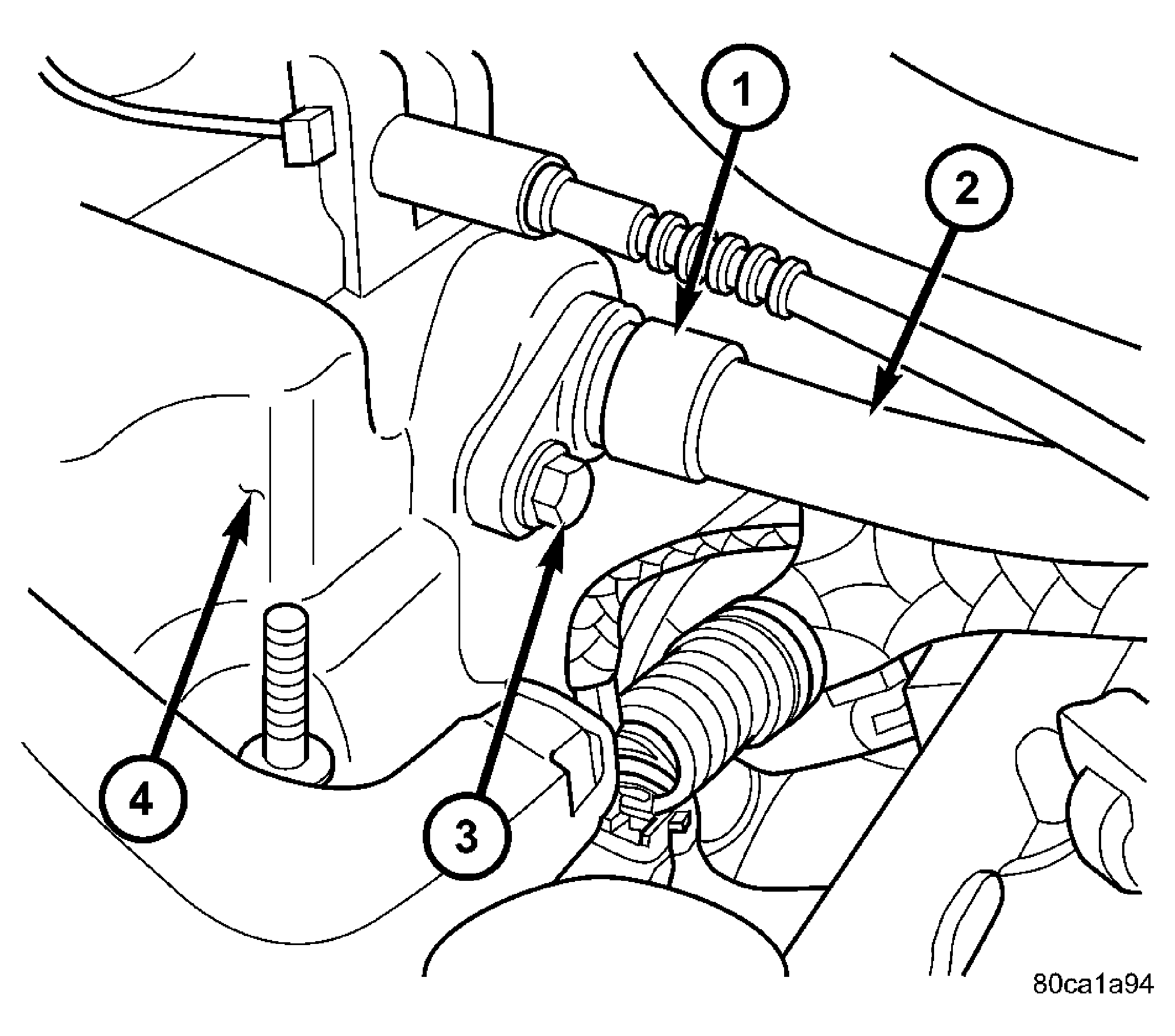

Fig 1: PCV VALVE LOCATION - 2.4L

Courtesy of DAIMLERCHRYSLER CORP.

1 - PCV VALVE

2 - HOSE

3 - MOUNTING BOLT

4 - VALVE COVER (LEFT SIDE)

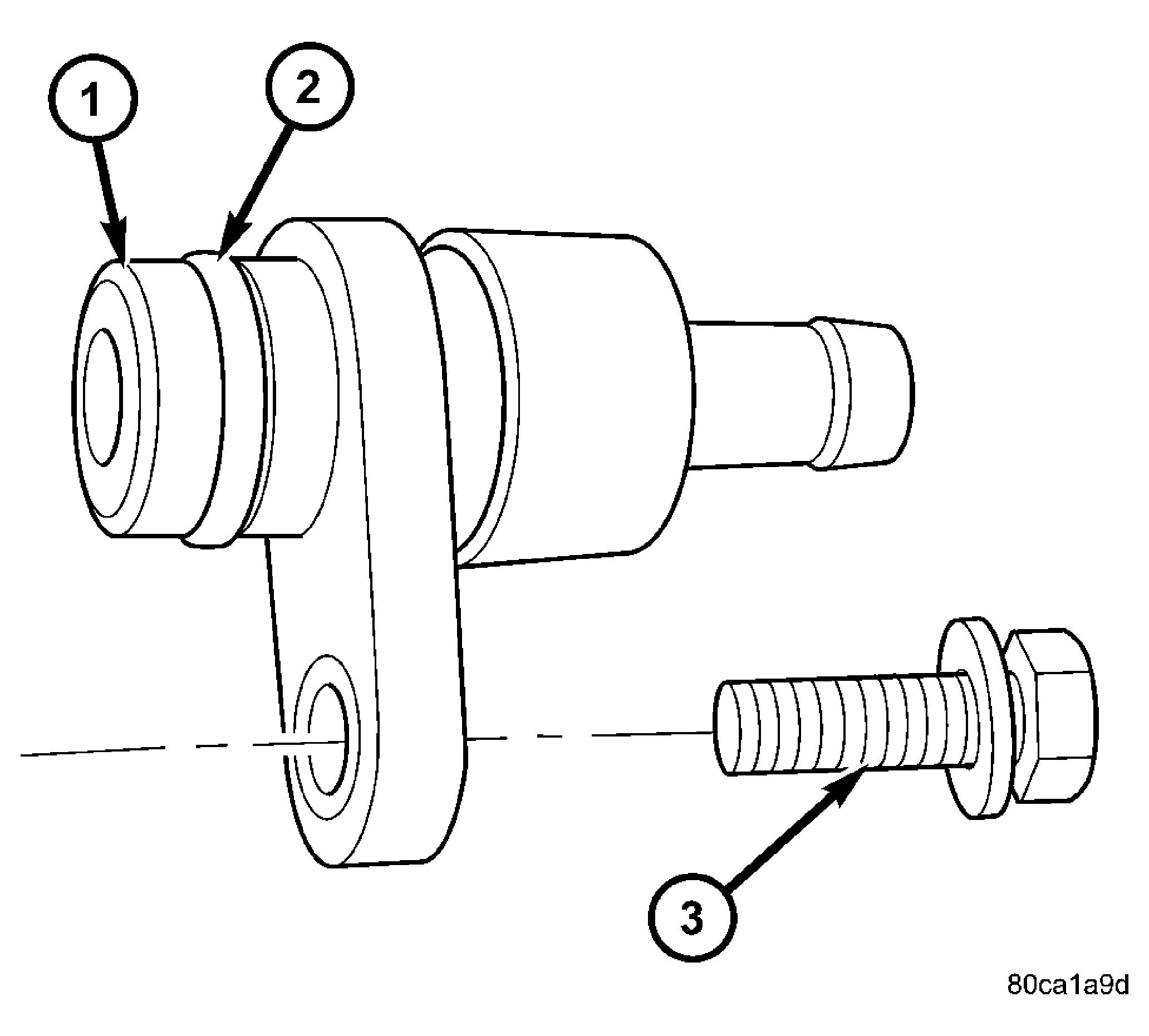

Fig 2: PCV VALVE AND O-RING - 2.4L

Courtesy of DAIMLERCHRYSLER CORP.

1 - PCV VALVE

2 - O-RING

3 - MOUNTING BOLT

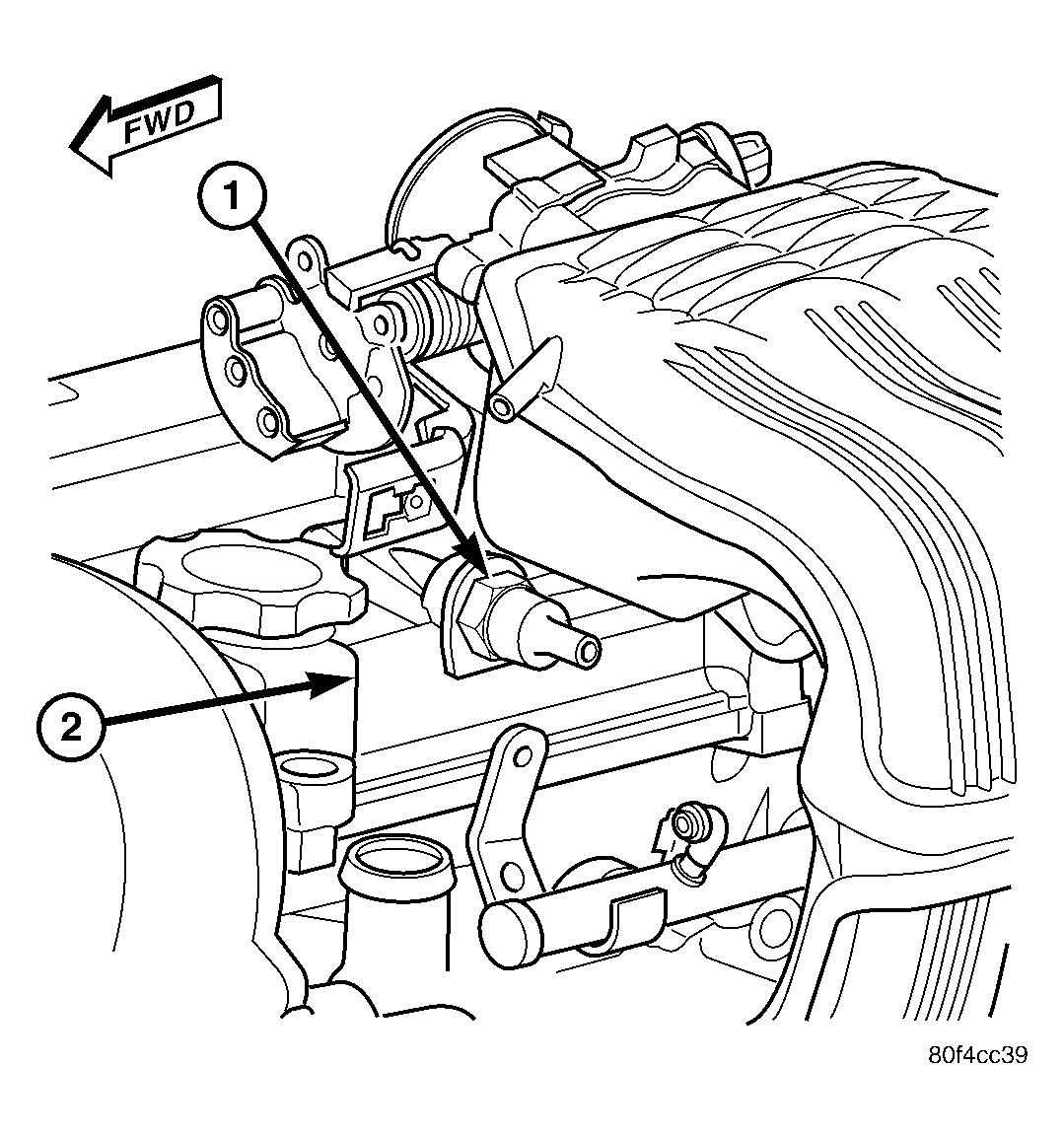

Fig 3: PCV VALVE - 2.4L - THREADED

Courtesy of DAIMLERCHRYSLER CORP.

1 - PCV VALVE (THREADED)

2 - VALVE COVER (LEFT SIDE)
