Fuel Pump Module - 4 Way

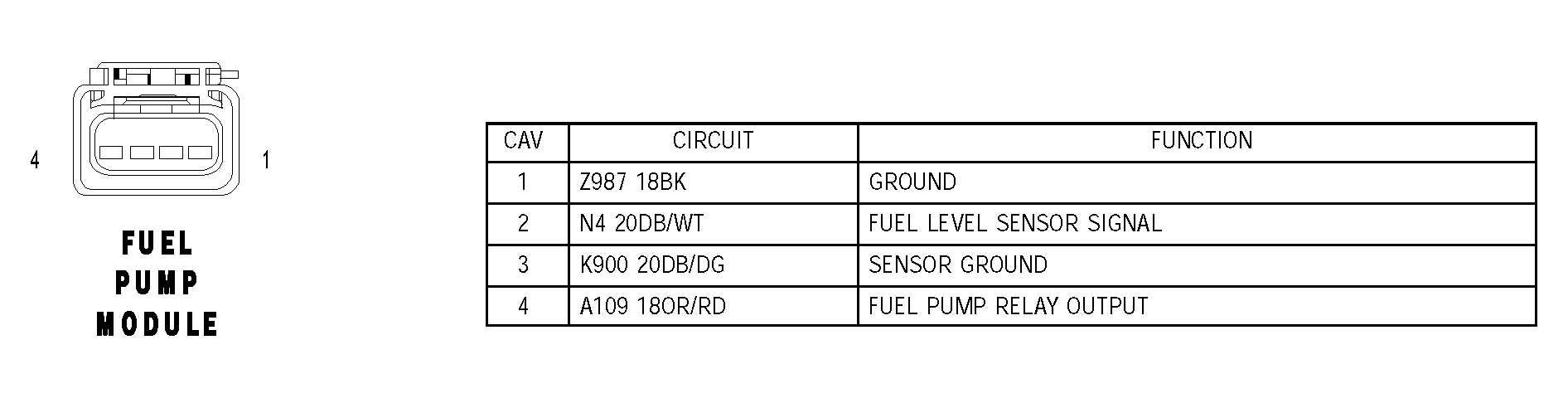

Fig 1: Identifying Fuel Pump Module Connector Terminal - 4 Way

G04550604

Courtesy of DAIMLERCHRYSLER CORP.
