Transmission Range Sensor - 10 Way

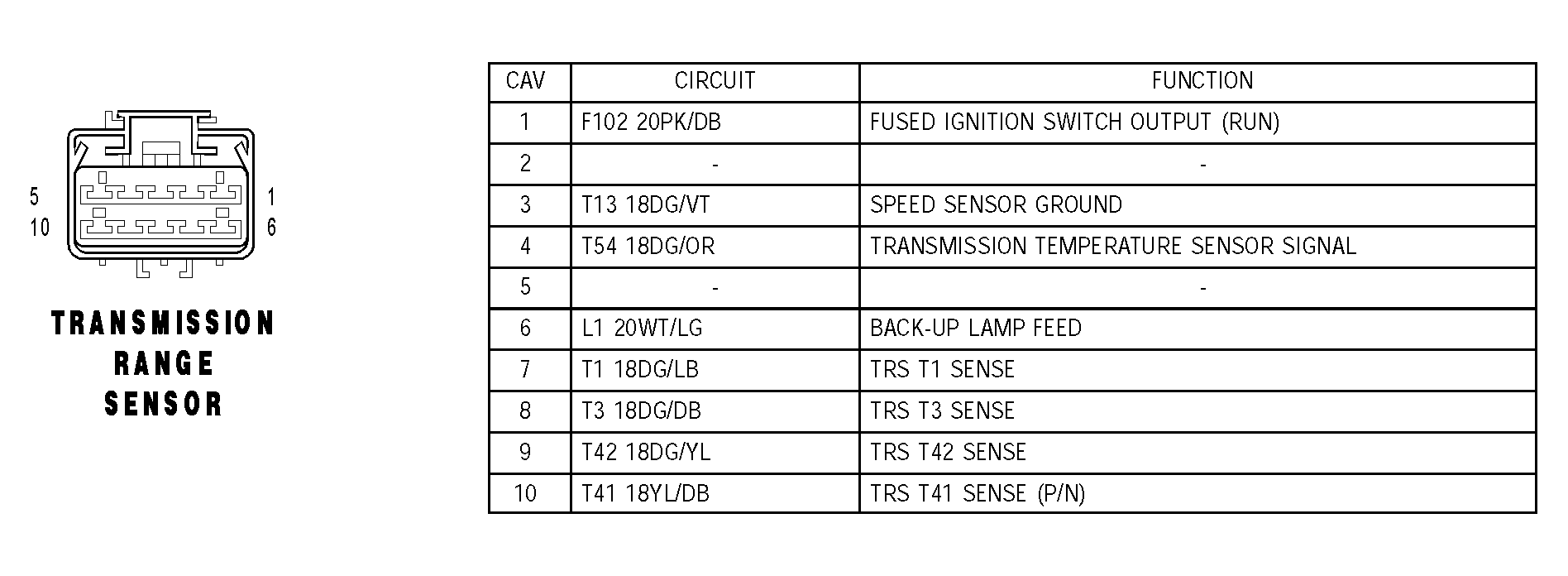

Fig 1: Identifying Transmission Range Sensor Connector Terminal - 10 Way
G04550638Courtesy of DAIMLERCHRYSLER CORP.
