Removal - Gas Engine
Courtesy of DAIMLERCHRYSLER CORP.
- Remove the battery from the battery tray (Refer to ELECTRICAL/BATTERY SYSTEM/BATTERY - REMOVAL) .
- Remove the battery wire harness three pin connector (11) from the battery tray (12).
Courtesy of DAIMLERCHRYSLER CORP.

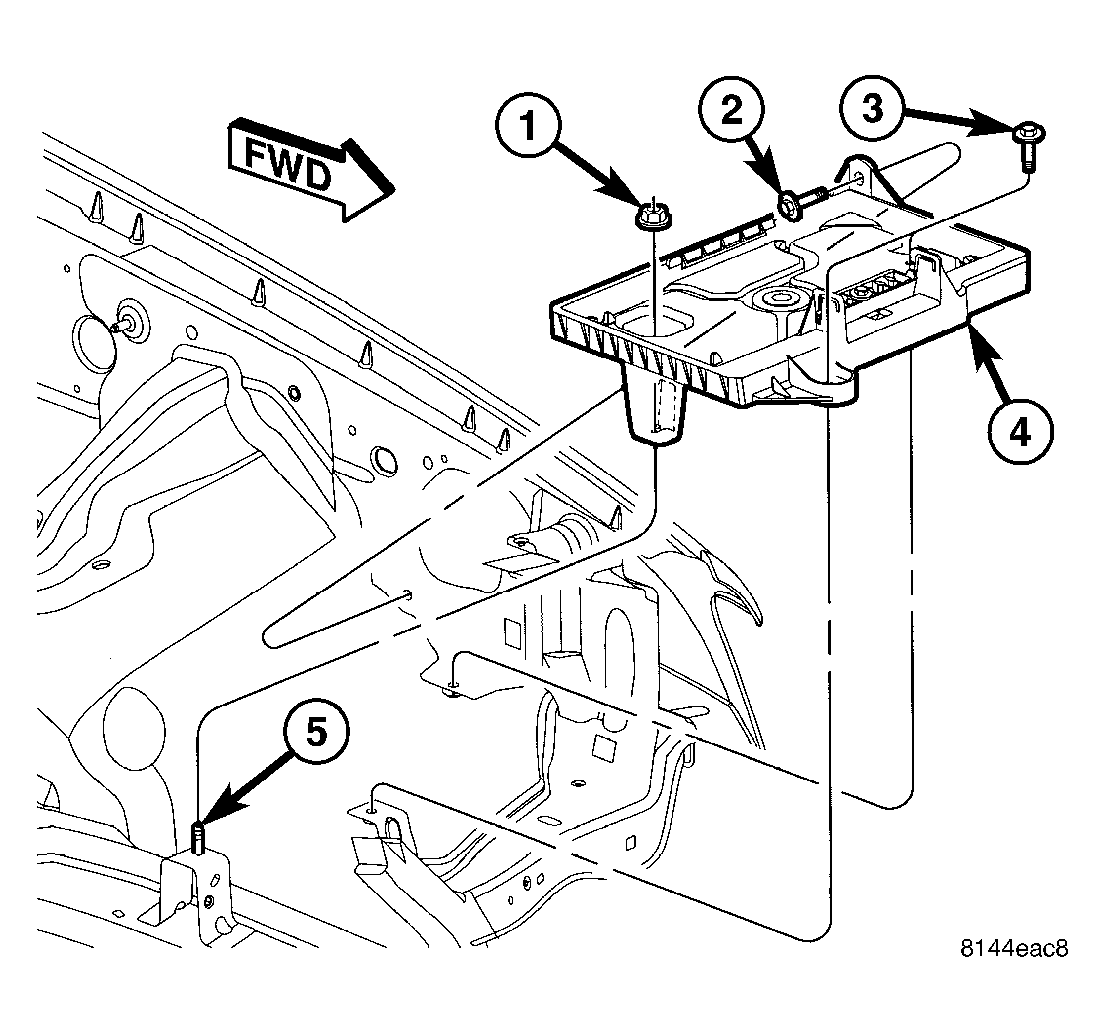

- Remove the two screws (3) that secures the battery tray (4) to the inner fender and the bracket on the radiator support.
- Remove the one screw (2) that secures the outboard side of the battery tray (4) to the left inner fender.
- Remove the one nut (1) that secures the rear of the battery tray to the stud (5) on the front frame rail.
- Remove the battery tray from the left front corner of the engine compartment.
