Battery System: Battery: Removal

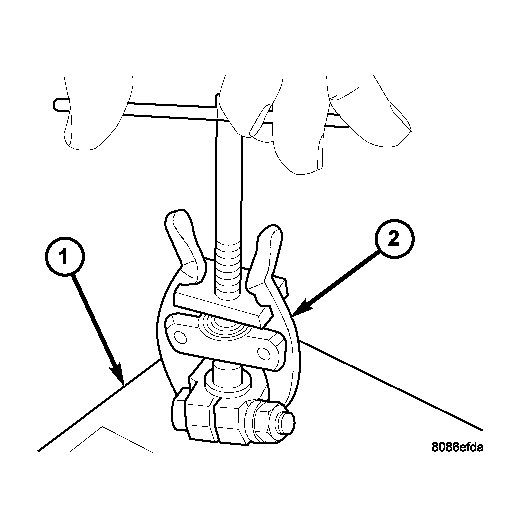

Fig 1: Identifying Battery Terminal Puller

Courtesy of DAIMLERCHRYSLER CORP.

NOTE: It may be necessary to use a battery terminal puller (2) if the battery cable terminal clamps are seized on to the battery posts.

Fig 2: Identifying Battery System Components, Power Distribution Center & Integrated Power Module

Courtesy of DAIMLERCHRYSLER CORP.

Turn the ignition switch to the Off position. Be certain that all electrical accessories are turned off.
Loosen the battery negative cable terminal clamp pinch-bolt hex nut (4).
Disconnect the battery negative cable terminal clamp from the battery negative terminal post. If necessary, use a battery terminal puller to remove the terminal clamp from the battery post.
Loosen the battery positive cable terminal clamp pinch-bolt hex nut (8).
Disconnect the battery positive cable terminal clamp from the battery positive terminal post. If necessary, use a battery terminal puller to remove the terminal clamp from the battery post.

Fig 3: Remove/Install Battery
Courtesy of DAIMLERCHRYSLER CORP.
Remove the battery hold down bolt (2) and slide the hold down (4) up and forward in the battery tray slots (3).
WARNING: Wear a suitable pair of rubber gloves when removing a battery by hand. Safety glasses should also be worn. If the battery is cracked or leaking, the electrolyte can burn the skin and eyes.
Remove the battery (1) from the vehicle.
