Cable-Throttle Control: Installation: 4.7L
Courtesy of DAIMLERCHRYSLER CORP.

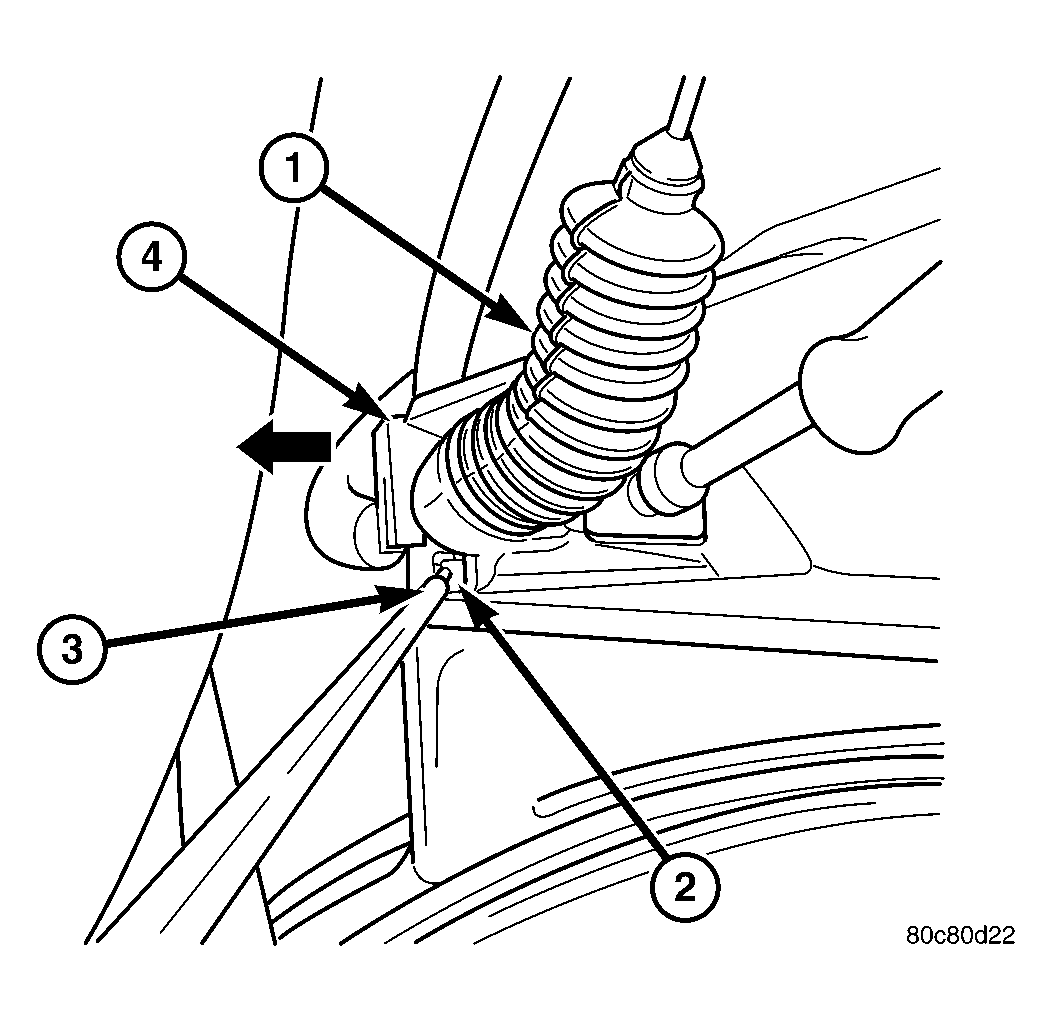

- Slide accelerator cable plastic mount into throttle body mounting bracket. Continue sliding until release tab (2) is aligned to hole in mounting bracket. See Fig 1.
Courtesy of DAIMLERCHRYSLER CORP.

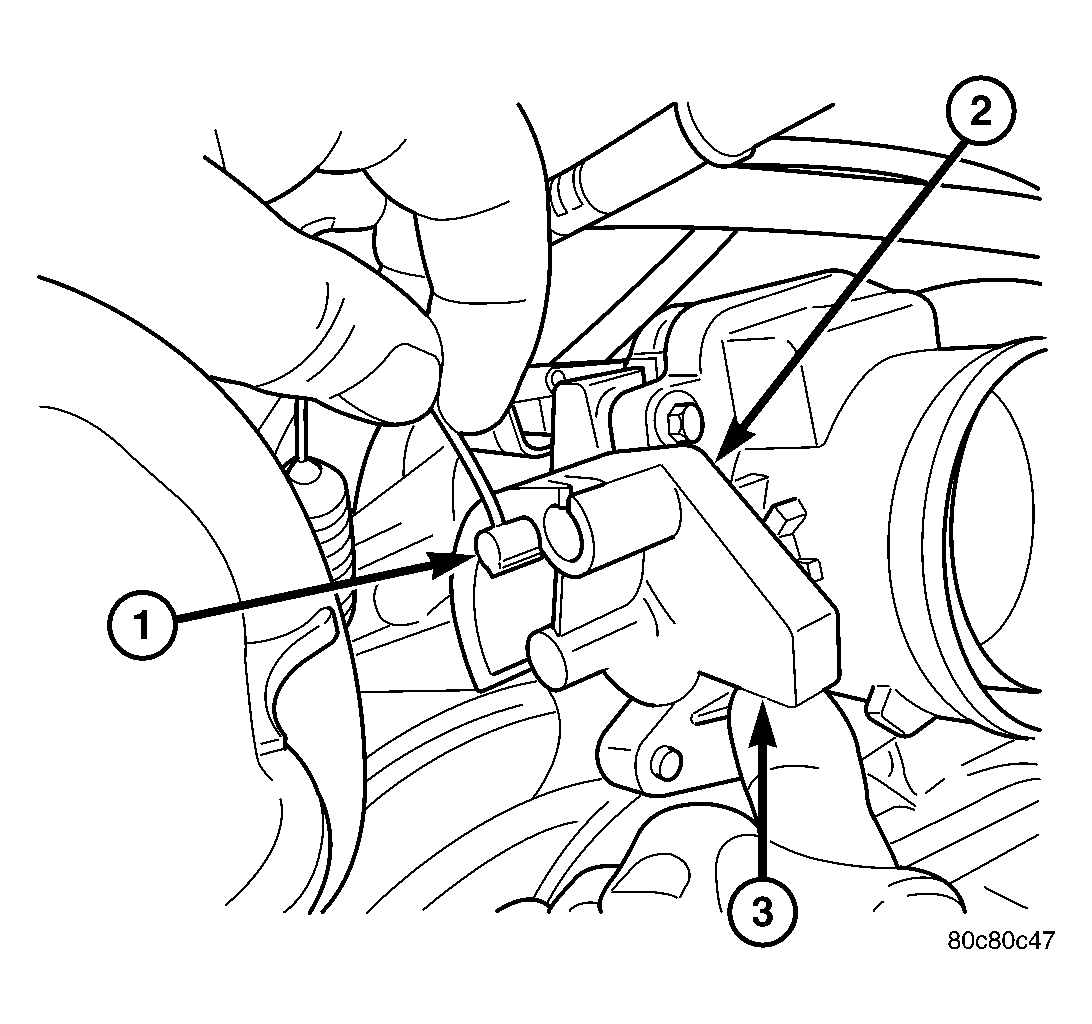

- Hold throttle in wide open position. While held in this position, slide throttle cable pin (1) into throttle body bellcrank. See Fig 2.
Courtesy of DAIMLERCHRYSLER CORP.
- Push rubber grommet (3) through opening in dash panel. See Fig 3.
- From inside vehicle, slide throttle cable core wire into opening (slot) in top of pedal arm.
- Push plastic cable retainer (clip) (2) into pedal arm opening until it snaps in place.
- Install air resonator tube to throttle body.
- Before starting engine, operate accelerator pedal to check for any binding.
Courtesy of DAIMLERCHRYSLER CORP.

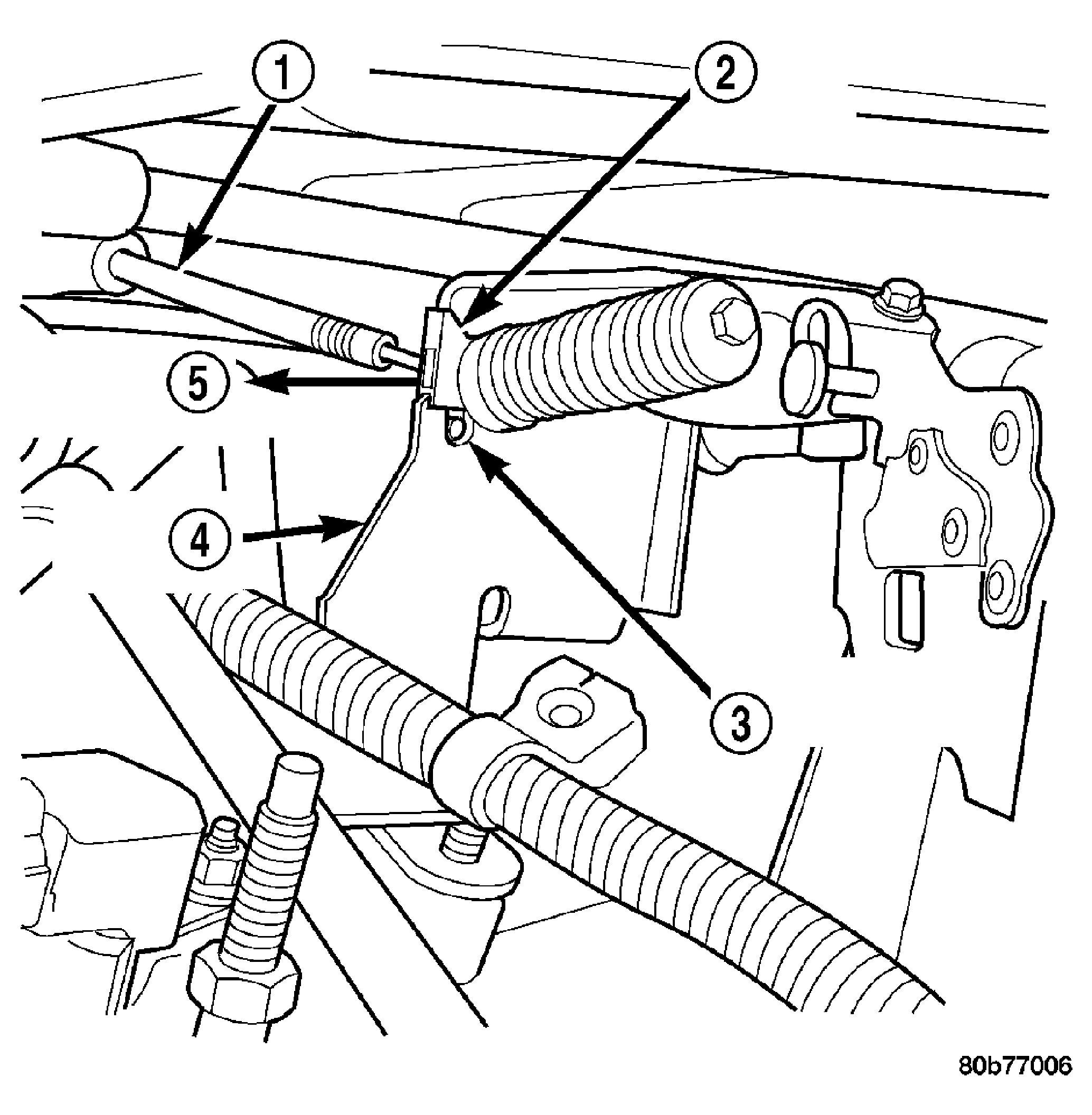

- Slide accelerator cable plastic mount into bracket. Continue sliding until tab (3) is aligned to hole in mounting bracket. See Fig 4.
- Route accelerator cable over top of cable cam.
- Connect cable end to throttle body bellcrank pin (snaps on rearward).
- Slide rubber grommet away from plastic cable housing.
Courtesy of DAIMLERCHRYSLER CORP.

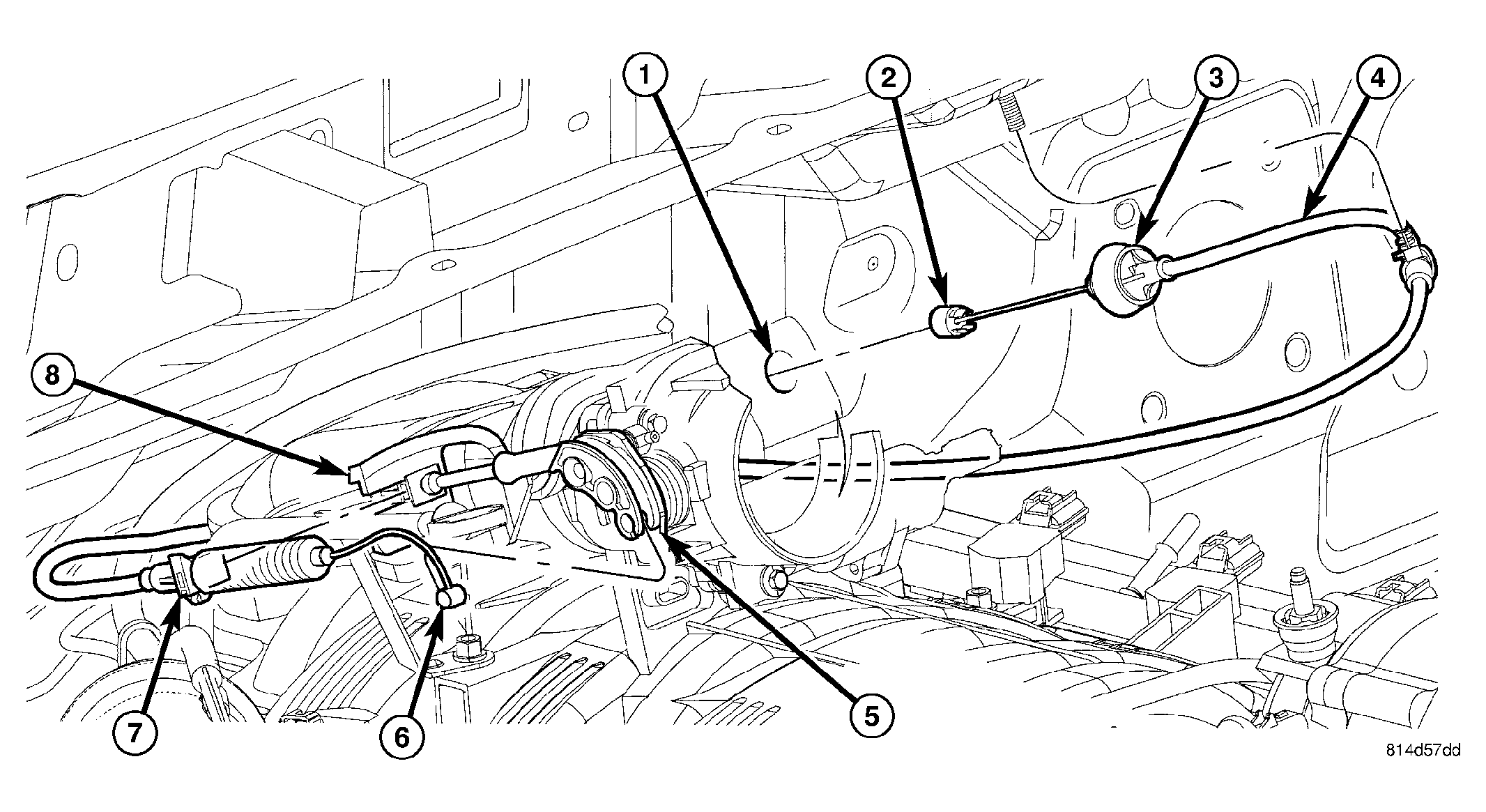

- Install rubber grommet (3) into dash panel until seated. See Fig 5.
- Push cable housing into rubber grommet and through opening in dash panel.
- From inside vehicle, slide throttle cable core wire into opening (6) in top of pedal arm.
- Push cable retainer (clip) (2) into pedal arm opening until it snaps in place.
- Snap cable into dashpanel routing clip.
- Install air resonator tube to throttle body.
- Before starting engine, operate accelerator pedal to check for any binding.
