Fuel Injection: Injector-Fuel: Description

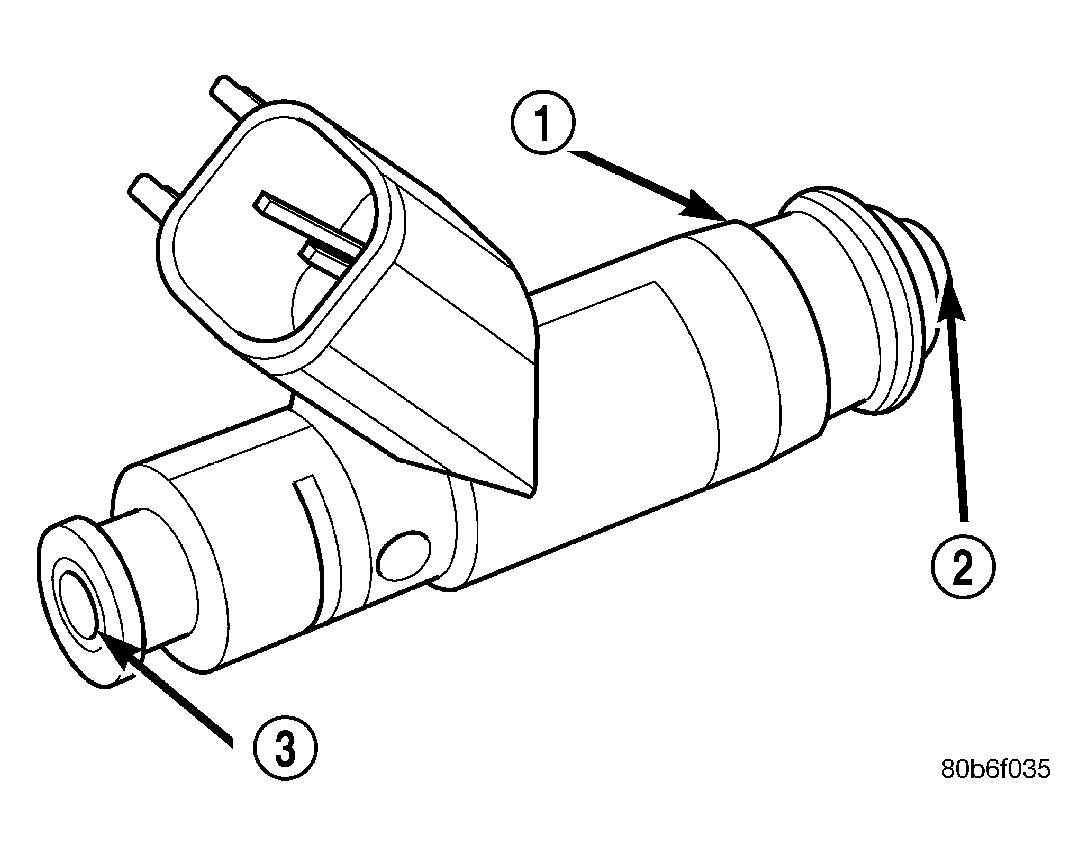

Fig 1: Fuel Injector
GC0006565Courtesy of DAIMLERCHRYSLER CORP.
1 - FUEL INJECTOR
2 - NOZZLE
3 - TOP (FUEL ENTRY)

An individual fuel injector (1) is used for each individual cylinder.
