Fuel Injection: Injector-Fuel: Removal: 5.7L

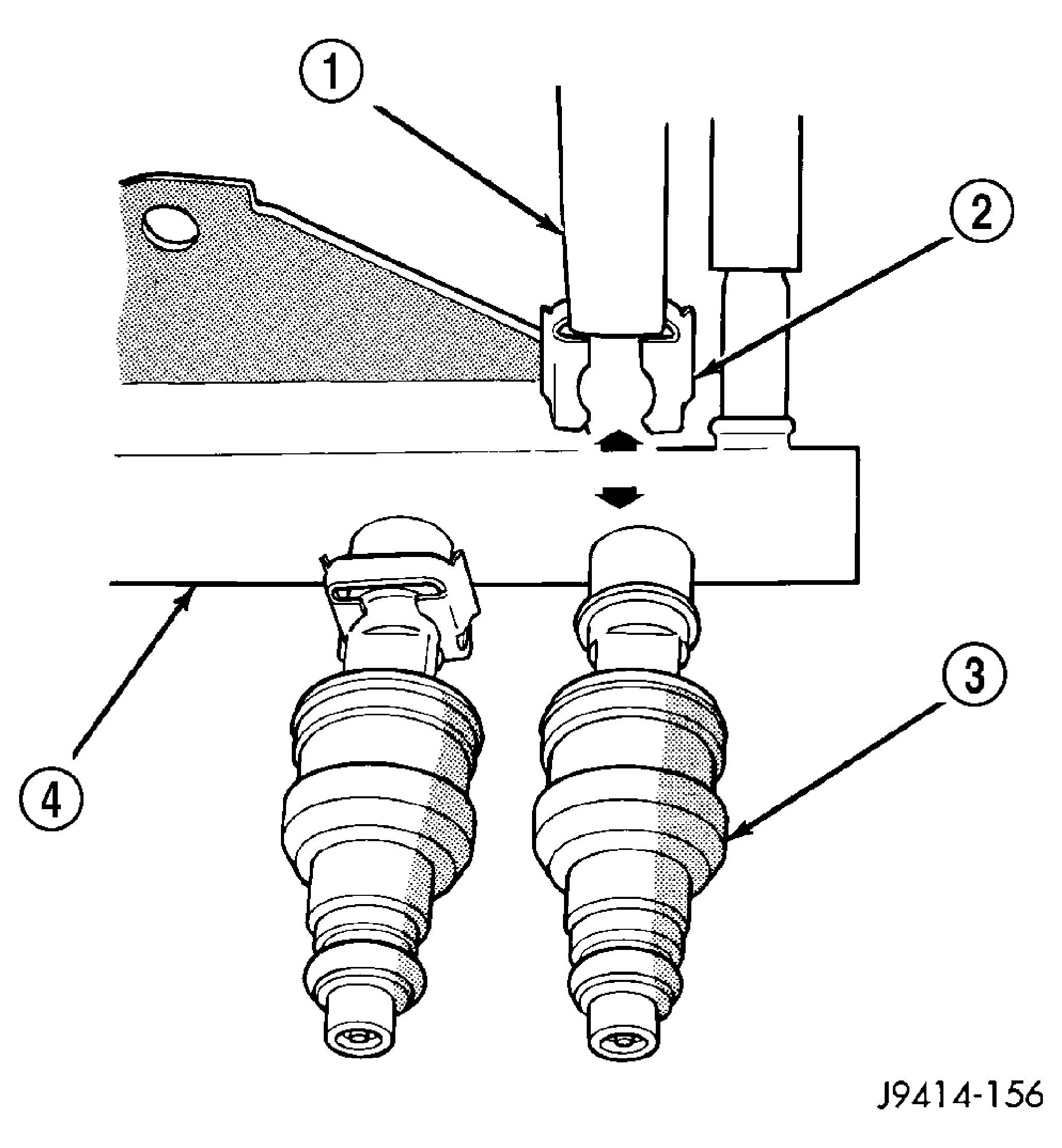

Fig 1: Injector Retaining Clip
GC0006567Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove fuel rail (Refer to FUEL SYSTEM/FUEL DELIVERY/FUEL RAIL - INSTALLATION) .
  2. Disconnect clip(s) that retain fuel injector(s) to fuel rail (2). See Figure.
