Sensor-Accelerator Pedal Position: Description

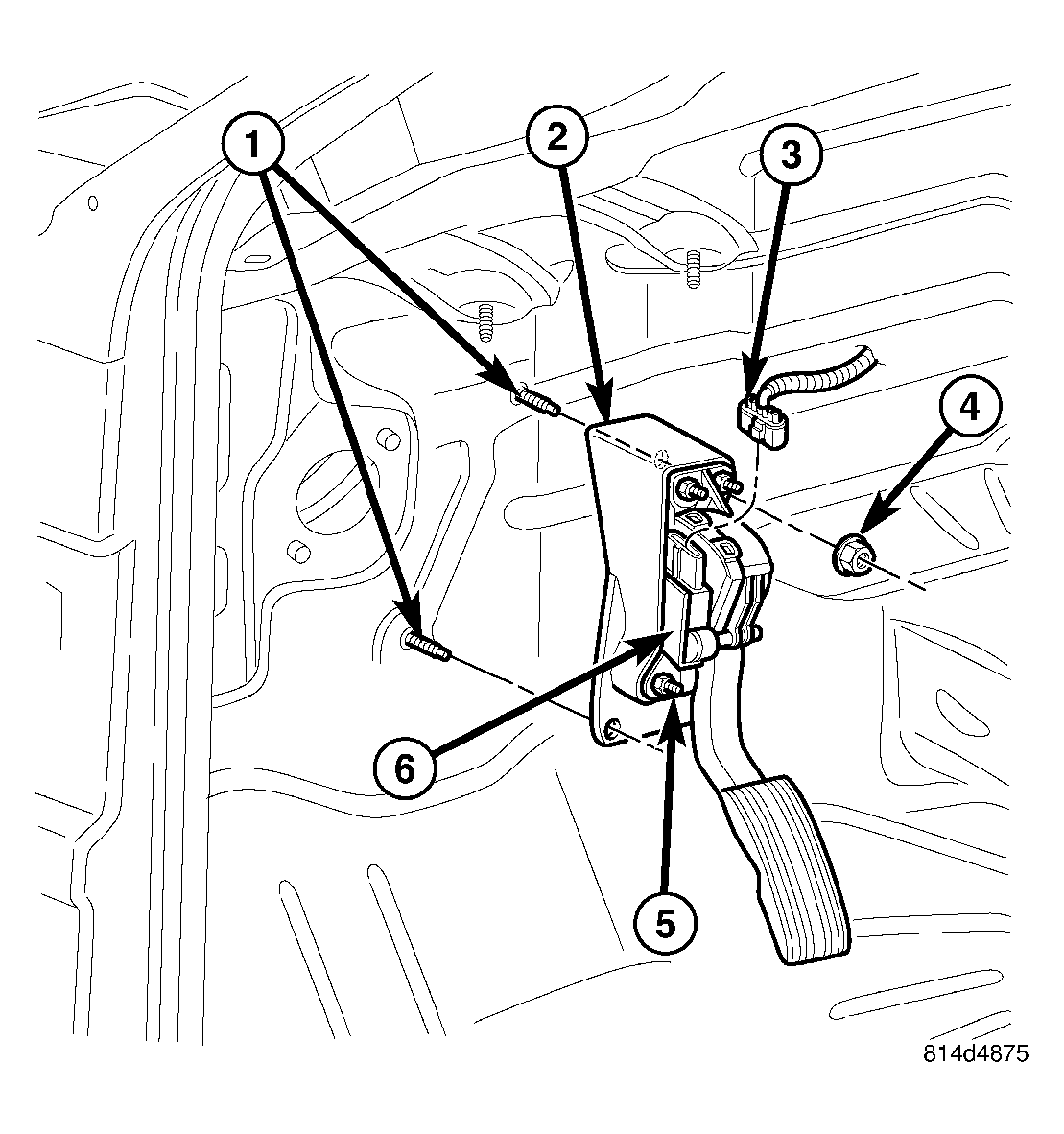

Fig 1: Accelerator Pedal W/Accelerator Pedal Position Sensor

Courtesy of DAIMLERCHRYSLER CORP.

The Accelerator Pedal Position Sensor (Accelerator Pedal Position Sensor) (6) is attached to the accelerator pedal assembly under the instrument panel.

The Accelerator Pedal Position Sensor is used only with the 5.7L V-8 engine. The 5.7L engine does not use a mechanical throttle cable.
