Ignition System (Service Information): Coil-Ignition: Installation: 5.7L

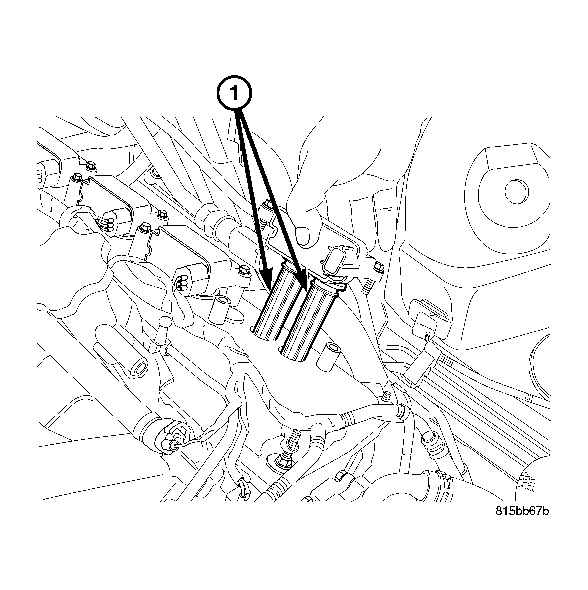

Fig 1: IGNITION COIL REMOVAL - 5.7L

Courtesy of DAIMLERCHRYSLER CORP.

1. Using compressed air, blow out any dirt or contaminants from around top of spark plug.
   NOTE: Use dielectric grease on each of the spark plug boots before installing the coil.
2. Position ignition coil (1) into valve cover and push onto spark plugs.

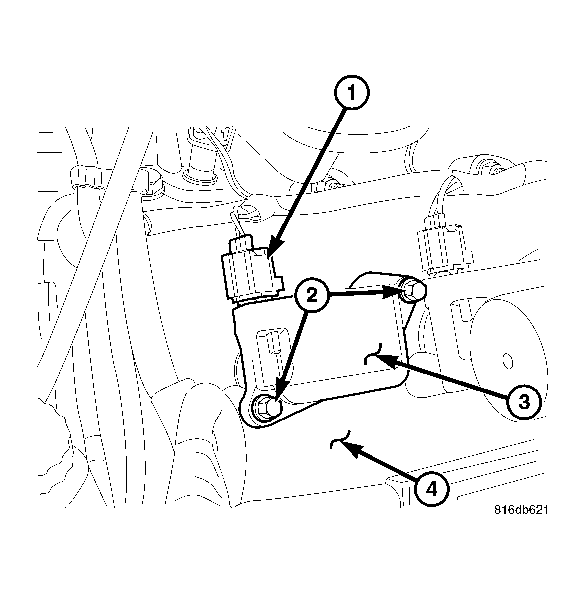

   Fig 2: 5.7L IGNITION COIL

   Courtesy of DAIMLERCHRYSLER CORP.
3. Install 2 coil mounting bolts (2). Tighten to 7 N.m (62 in. lbs.).
4. Connect electrical connector (1) to coil by snapping into position.
