Exhaust Gas RECIRCULATION: Valve-EGR: Installation: 4.7L

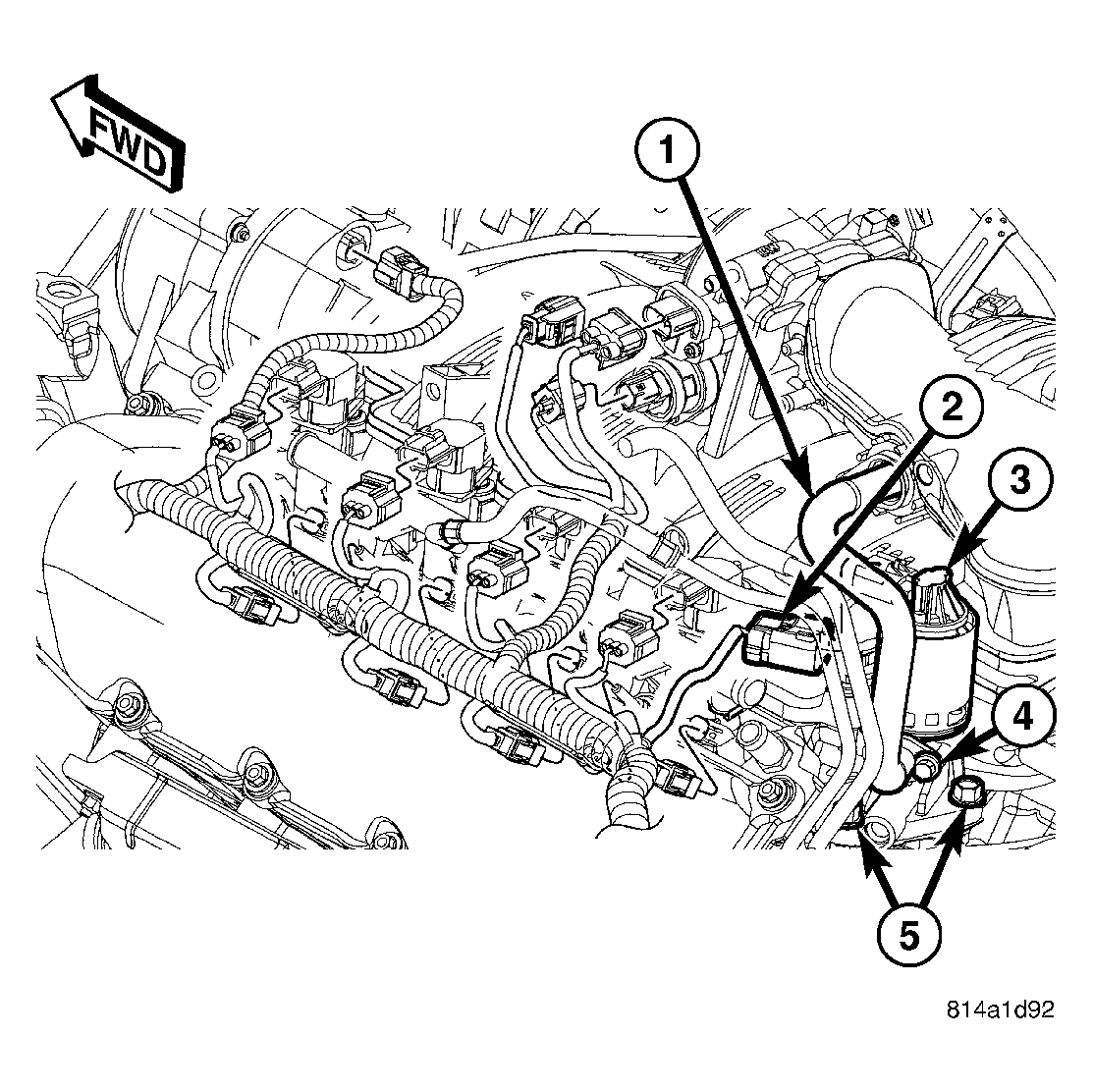

Fig 1: EGR Location - 4.7L

Courtesy of DAIMLERCHRYSLER CORP.

1. Clean area at rear of left cylinder head where it joins base of EGR valve.
2. Clean EGR tube where it joins EGR valve.
3. Position new gasket between EGR valve and cylinder head.
4. Position EGR valve to cylinder head. Install and tighten two bolts (5). Refer to TORQUE .
5. Position new gasket between EGR tube flange and EGR valve assembly.
6. Position EGR tube (1) to side of EGR valve and into intake manifold. Install two bolts (4) finger tight (temporarily).

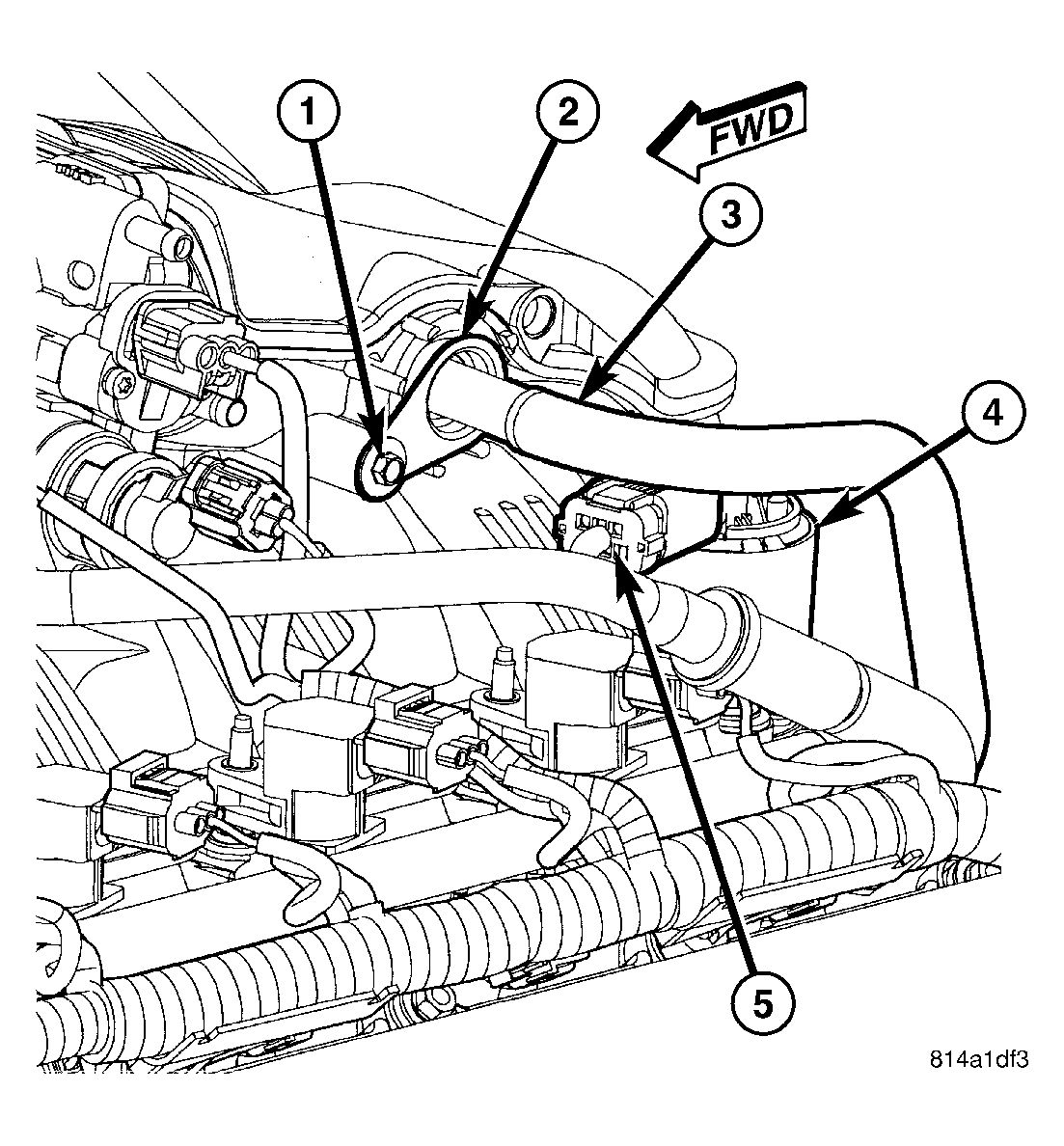

   Fig 2: EGR Tube - 4.7L

   Courtesy of DAIMLERCHRYSLER CORP.
7. Install EGR tube flange bolt (1) at intake manifold. Tighten bolt. Refer to TORQUE .
8. Connect electrical connector (5) to top of EGR valve solenoid (2).
   Fig 3: EGR Location - 4.7L

   Courtesy of DAIMLERCHRYSLER CORP.
9. Do a final tightening of two EGR tube bolts (4). Refer to TORQUE .
