Exhaust Gas RECIRCULATION: Valve-EGR: Installation: 5.7L

Fig 1: EGR Valve Location

Courtesy of DAIMLERCHRYSLER CORP.

1. Position a new metal gasket between cylinder head (1) and valve assembly (3).
2. Install two mounting bolts (2) and tighten. Refer to TORQUE .

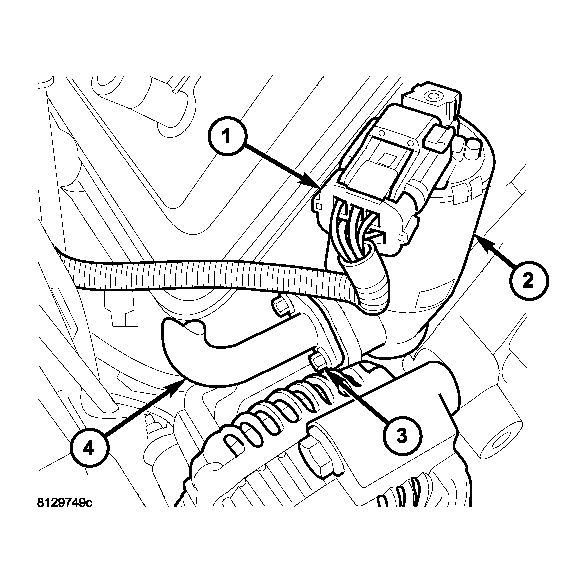

   Fig 2: EGR Tube Bolts

   Courtesy of DAIMLERCHRYSLER CORP.
3. Clean EGR tube where it joins EGR valve.
4. Position new gasket between EGR tube flange and EGR valve assembly.
5. Install two bolts (3) connecting EGR tube (4) to valve assembly (2). Tighten bolts. Refer to TORQUE .
6. Connect electrical connector (1) to EGR solenoid (2).
