Seat Belt Buckle: Installation: Front
WARNING:
To avoid personal injury or death, on vehicles equipped with airbags, disable the supplemental restraint system before attempting any steering wheel, steering column, airbag, occupant classification system, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the supplemental restraint system. Failure to take the proper precautions could result in accidental airbag deployment.
WARNING:
To avoid personal injury or death, during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the DaimlerChrysler Mopar® Parts Catalog.
NOTE:
The following procedure is for replacement of an ineffective or damaged seat belt buckle unit. The front seat belt buckle also includes a seat belt tensioner. If the front seat belt buckle is ineffective or damaged, but the seat belt tensioner is not deployed, review the recommended procedures for handling non-deployed supplemental restraints. (Refer to ELECTRICAL/RESTRAINTS - STANDARD PROCEDURE - HANDLING NON-DEPLOYED SUPPLEMENTAL RESTRAINTS) . If the seat belt tensioner has been deployed, review the recommended procedures for service after a supplemental restraint deployment before removing the unit from the vehicle. (Refer to ELECTRICAL/RESTRAINTS - STANDARD PROCEDURE - SERVICE AFTER A SUPPLEMENTAL RESTRAINT DEPLOYMENT) .

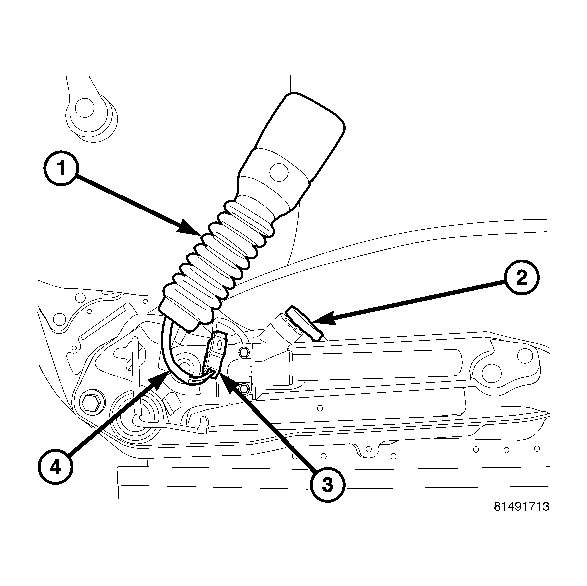

- Position the front seat belt buckle and tensioner (1) lower anchor onto the stud on the inboard side of the seat cushion frame.
- Install and tighten the nut that secures the front seat belt buckle lower anchor to the side of the front seat. Tighten the nut to 43 N.m (32 ft. lbs.).
- If so equipped, reconnect the seat belt switch pigtail wire connector (3) to the seat wire harness connector for the seat belt switch.
- Reconnect the seat wire harness connector (2) to the seat belt tensioner initiator.
- Reinstall the side shield onto the inboard side of the front seat cushion. (Refer to BODY/SEATS/SEAT BACK CUSHION/COVER - INSTALLATION) .
- Reinstall the console onto the floor panel transmission tunnel. (Refer to BODY/INTERIOR/FLOOR CONSOLE - INSTALLATION) .
- Do not reconnect the battery negative cable at this time. The supplemental restraint system verification test procedure should be performed following service of any supplemental restraint system component. (Refer to ELECTRICAL/RESTRAINTS - STANDARD PROCEDURE - VERIFICATION TEST) .
