Ignition System (Service Information): Switch-Ignition: Removal

The electrical ignition switch attaches to the rear of the key lock cylinder housing. The SKREEM unit also attaches to the key lock cylinder housing. For ignition switch terminal and circuit identification, refer to the SYSTEM WIRING DIAGRAMS article.

Fig 1: Ignition Switch Bezel

Courtesy of DAIMLERCHRYSLER CORP.

1. Disconnect negative cable from battery.

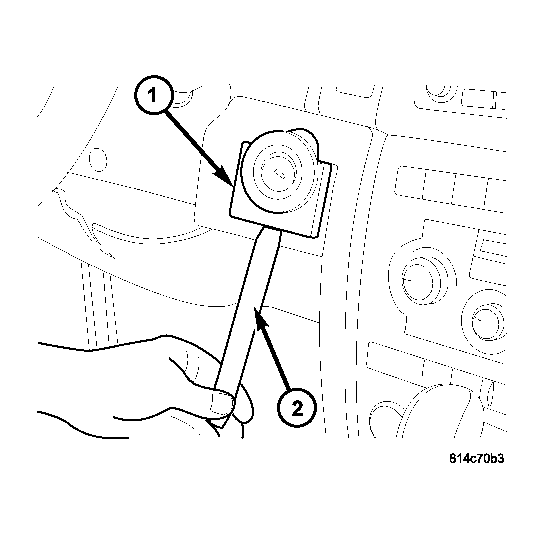

2. Use a plastic trim removal stick (2) to remove switch bezel (1). Bezel snaps on.
   Fig 2: Silencer

   Courtesy of DAIMLERCHRYSLER CORP.

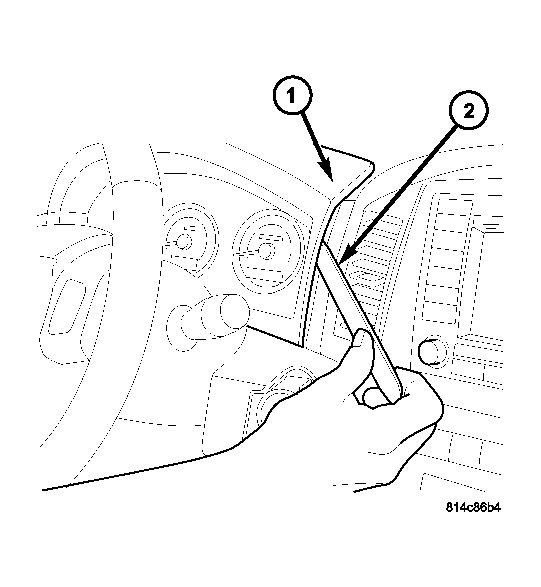

3. Remove silencer pad (1) (two screws).
   Fig 3: Knee Blocker

   Courtesy of DAIMLERCHRYSLER CORP.

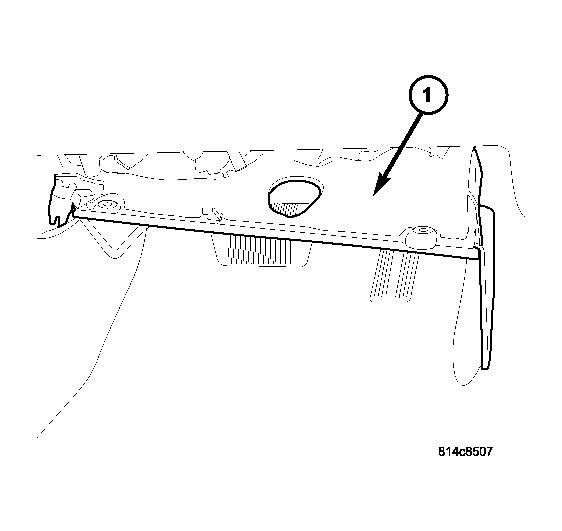

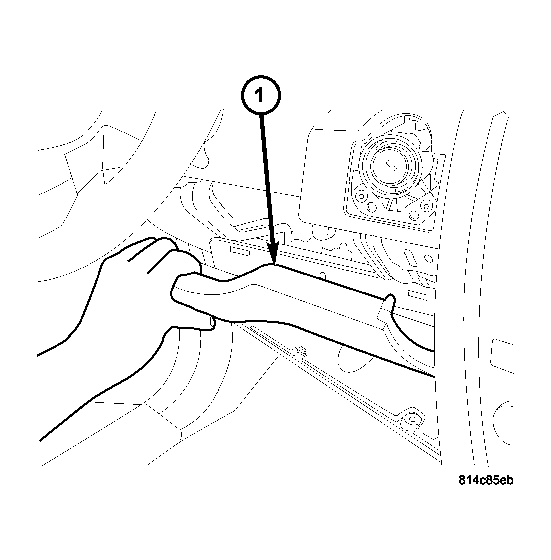

4. Remove knee blocker (1) (Refer to BODY/INSTRUMENT PANEL/STEERING COLUMN OPENING COVER - REMOVAL) .
   Fig 4: IGN. Switch Housing Front Screws

   Courtesy of DAIMLERCHRYSLER CORP.
5. Remove two key cylinder housing Torx screws (2).
   Fig 5: I.P. Cluster Bezel

   Courtesy of DAIMLERCHRYSLER CORP.
6. Use a plastic trim removal stick (2) to remove I.P. cluster bezel (1). Bezel snaps on, (Refer to BEZEL-INSTRUMENT PANEL-REMOVAL ).
   Fig 6: IGN. Switch Housing Top Screw

   Courtesy of DAIMLERCHRYSLER CORP.
7. Remove one key cylinder housing Torx screw (1).
   Fig 7: CABLE REMOVAL TAB FRONT

   Courtesy of DAIMLERCHRYSLER CORP.

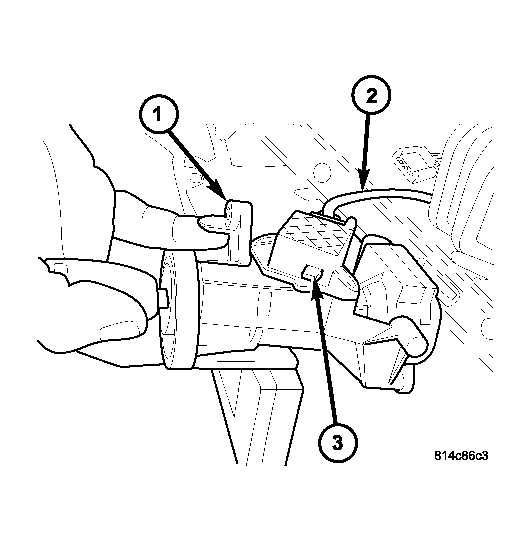

8. To prevent binding or kinking cable (2), carefully lower the key/cylinder/switch/cable/SKREEM assembly (1). Disconnect two electrical connectors (one at ignition switch and one at SKREEM). To release cable (2) from switch, simultaneously press on tab (3) while pressing on tab.
   Fig 8: SKREEM Mounting Screw

   Courtesy of DAIMLERCHRYSLER CORP.
9. Remove SKREEM unit (2) from switch housing (3) by removing screw (1).
   Fig 9: IGN. Switch Mounting Screw

   Courtesy of DAIMLERCHRYSLER CORP.
10. Remove ignition switch (2) from switch housing (1) by removing screw (4) and then proceeding to the next step.
    Fig 10: IGN. Switch Release Tabs

    Courtesy of DAIMLERCHRYSLER CORP.
11. Continue to remove ignition switch (2) by simultaneously pressing on two release tabs using two small screwdrivers (1), while pulling ignition switch (2) from housing (3).
    Fig 11: Key Cylinder Release Tab

    Courtesy of DAIMLERCHRYSLER CORP.
12. To remove key lock cylinder (1) from housing (2), rotate key to ON position while pressing on release tab (3).
    Fig 12: Key Lock Cylinder Removal

    Courtesy of DAIMLERCHRYSLER CORP.
13. Remove key lock cylinder (1) from housing (2).
