Fuel Injection: Sensor-Map: Description: 5.7L

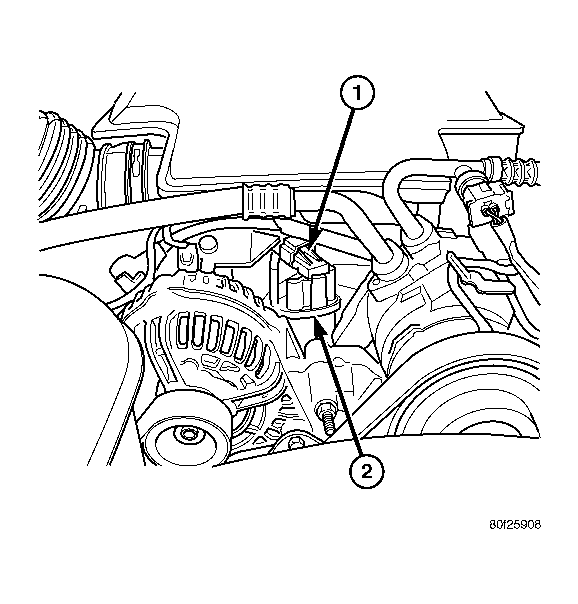

Fig 1: MAP Sensor Location - 5.7L

Courtesy of DAIMLERCHRYSLER CORP.

The Manifold Absolute Pressure (MAP) sensor is mounted to the intake manifold by a quarter turn fastener.
