Sensor-Camshaft Position: Removal: 5.7L

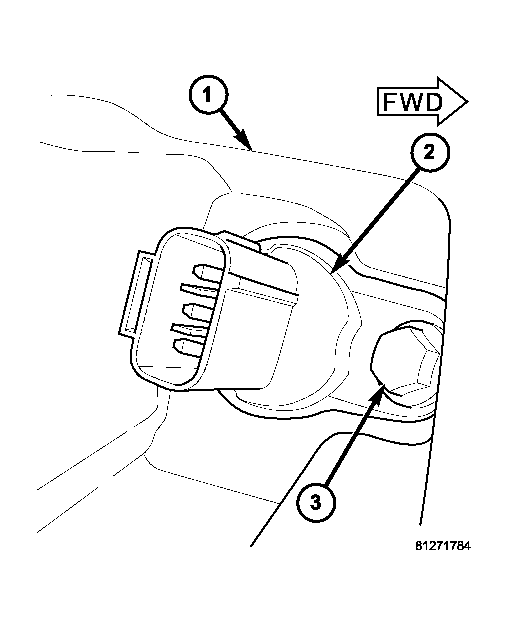

Fig 1: CMP Location - 5.7L

Courtesy of DAIMLERCHRYSLER CORP.

The Camshaft Position Sensor (CMP) is located on right side of timing chain cover below generator (1).

1. Disconnect electrical connector (3) at CMP sensor.

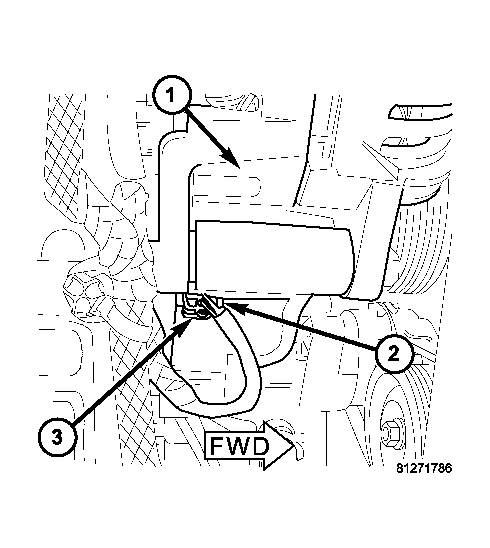

   Fig 2: CMP Removal / Installation - 5.7L V-8

   Courtesy of DAIMLERCHRYSLER CORP.
2. Remove sensor mounting bolt (3).
3. Carefully twist sensor (2) from cylinder head.
4. Check condition of sensor O-ring.
