Map Sensor: Removal: 4.0L

An L-shaped rubber fitting is used to connect the MAP sensor to throttle body. See Fig 1.

1. Remove air cleaner intake tube at throttle body.
2. Remove MAP sensor mounting bolt (screw). See Fig 1.
3. While removing MAP sensor, slide the rubber L-shaped fitting from throttle body. See Fig 1.
4. Remove rubber L-shaped fitting from MAP sensor.

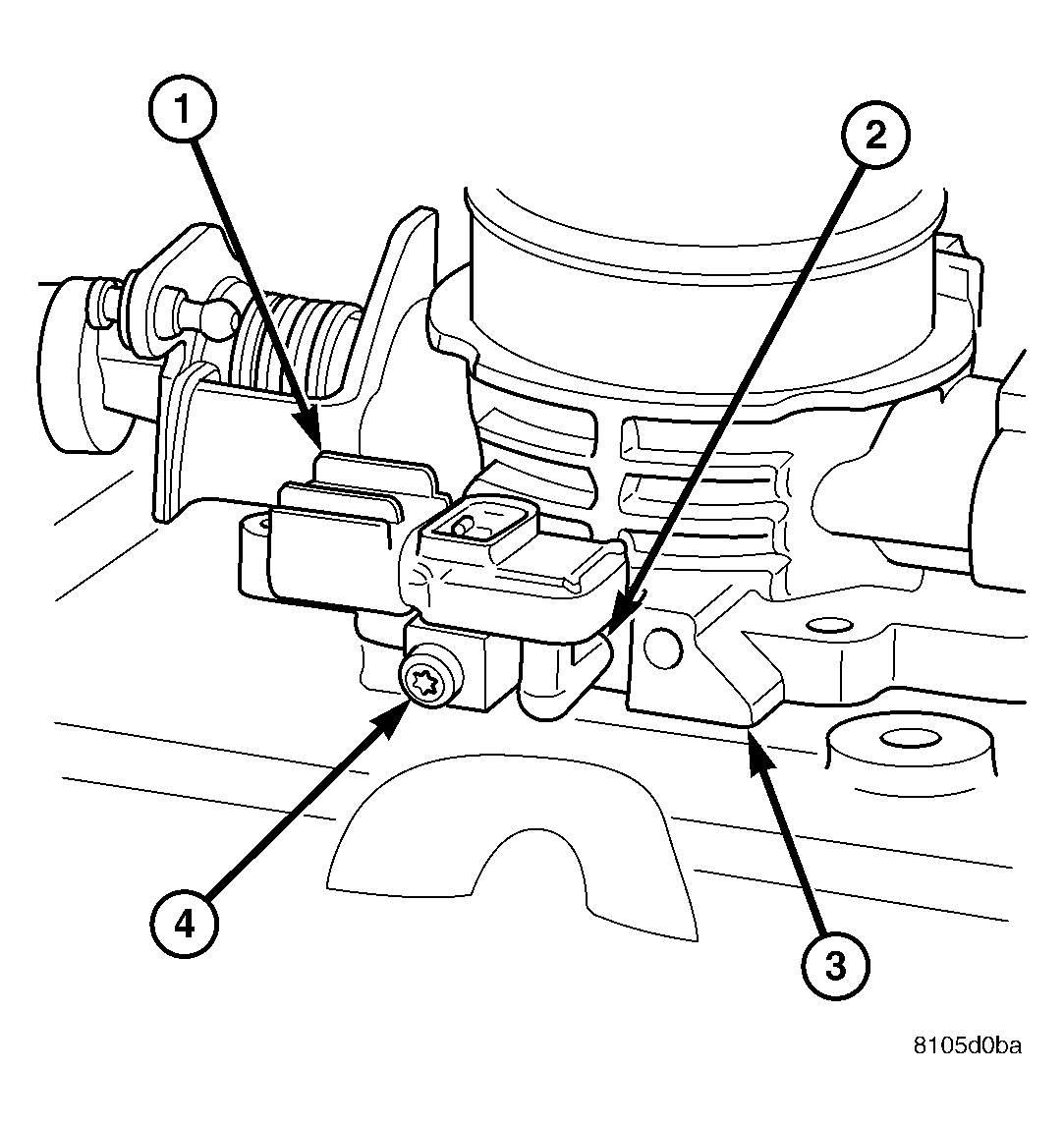

Fig 1: 4.0L Map Sensor Mounting - Late

Courtesy of DAIMLERCHRYSLER CORP.
