Throttle Position Sensor: Removal: 4.0L

The TPS is mounted to the throttle body.

1. Remove air cleaner tube at throttle body.
2. Disconnect TPS electrical connector.
3. Remove TPS mounting screws. See Fig 1.
4. Remove TPS.

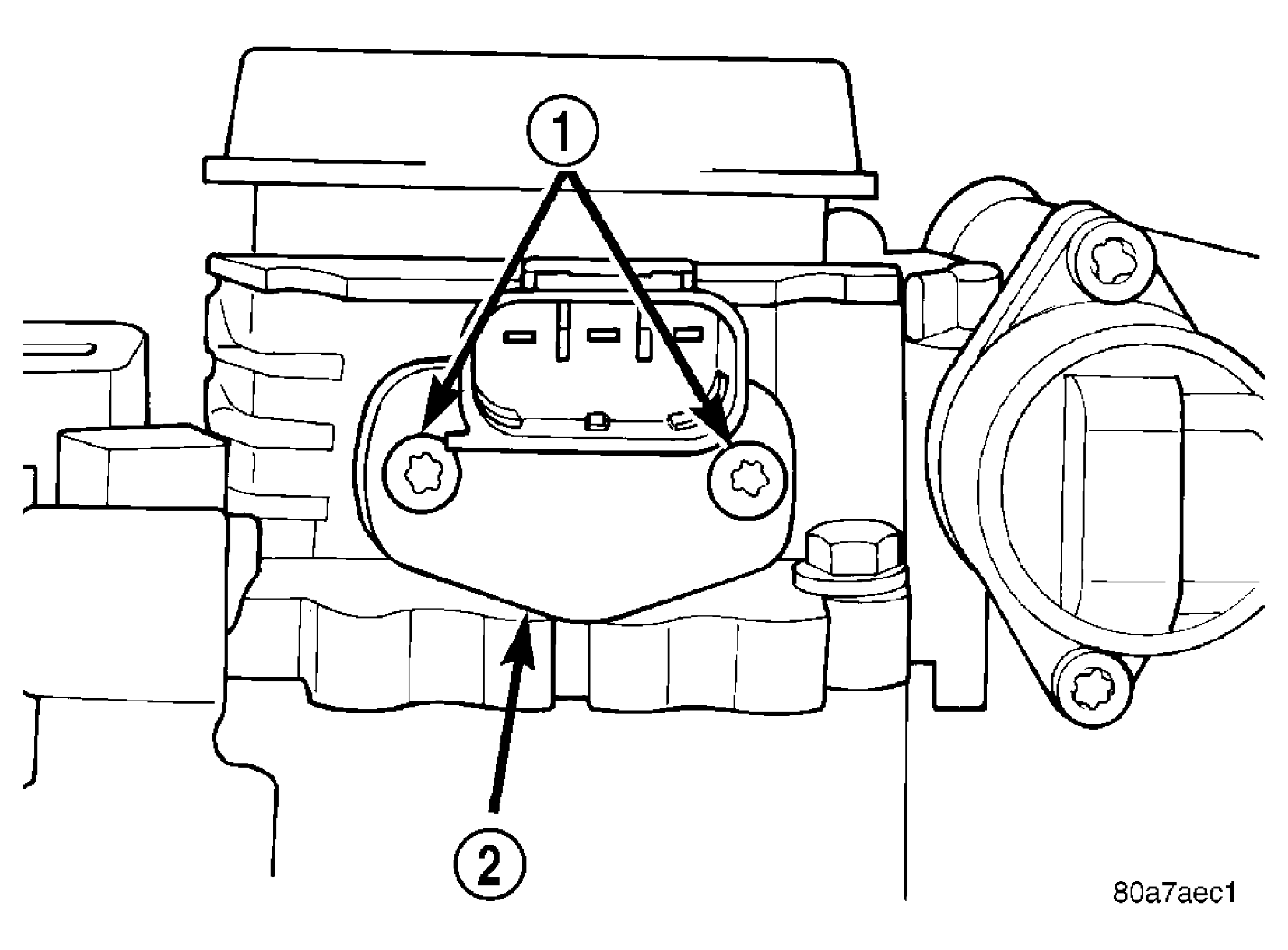

Fig 1: TPS Mounting Screws - 4.0L

Courtesy of DAIMLERCHRYSLER CORP.
