Camshaft Position Sensor: Description: 2.4L

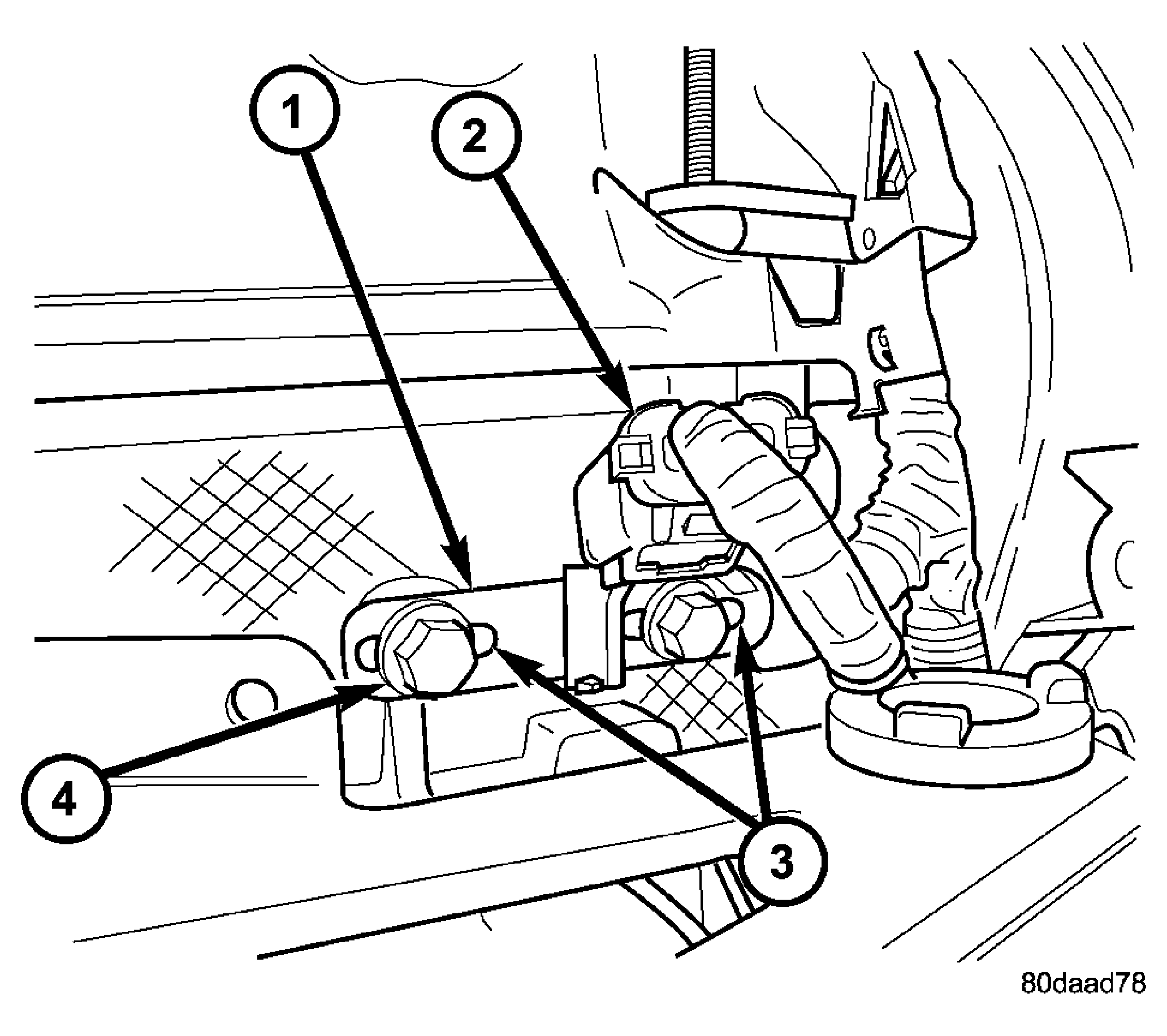

The Camshaft Position Sensor (CMP) on the 2.4L 4-cylinder engine is bolted to the right-front side of the cylinder head. See Fig 1.
| 1 - CMP SENSOR |
| 2 - ELECTRICAL CONNECTOR |
| 3 - SLOTTED HOLES |
| 4 - MOUNTING BOLTS (2) |
