Ignition Coil - 2.4L: Removal

  1. Disconnect electrical connector at rear of coil.
  2. Remove all secondary cables from coil.
  3. Remove 4 coil mounting bolts. See Fig 1.
  4. Remove coil from vehicle.

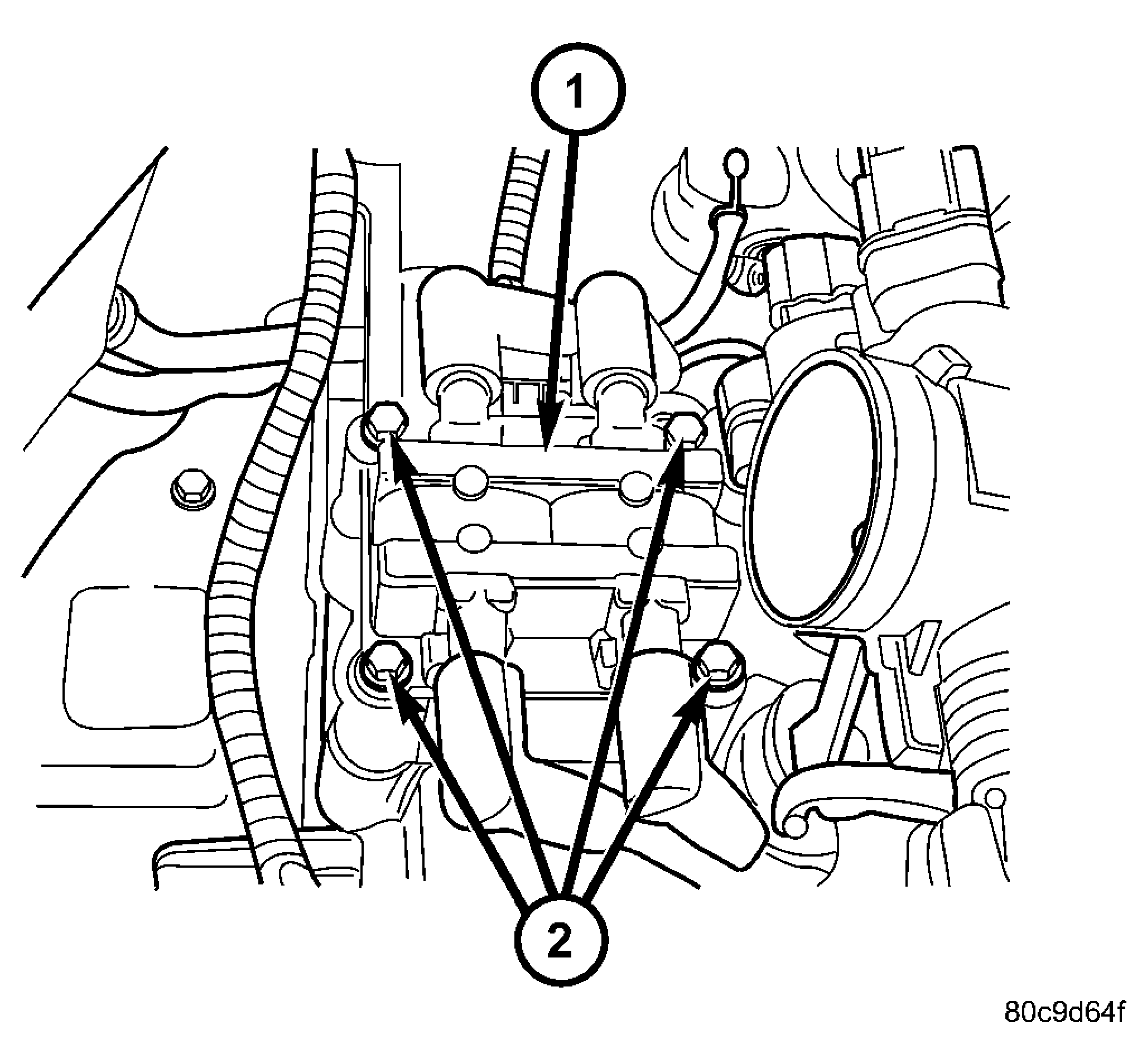

Fig 1: Ignition Coil - 2.4L
GC0030886Courtesy of DAIMLERCHRYSLER CORP.
1 - IGNITION COIL
2 - MOUNTING BOLTS (4)
