A/C Compressor Clutch Relay

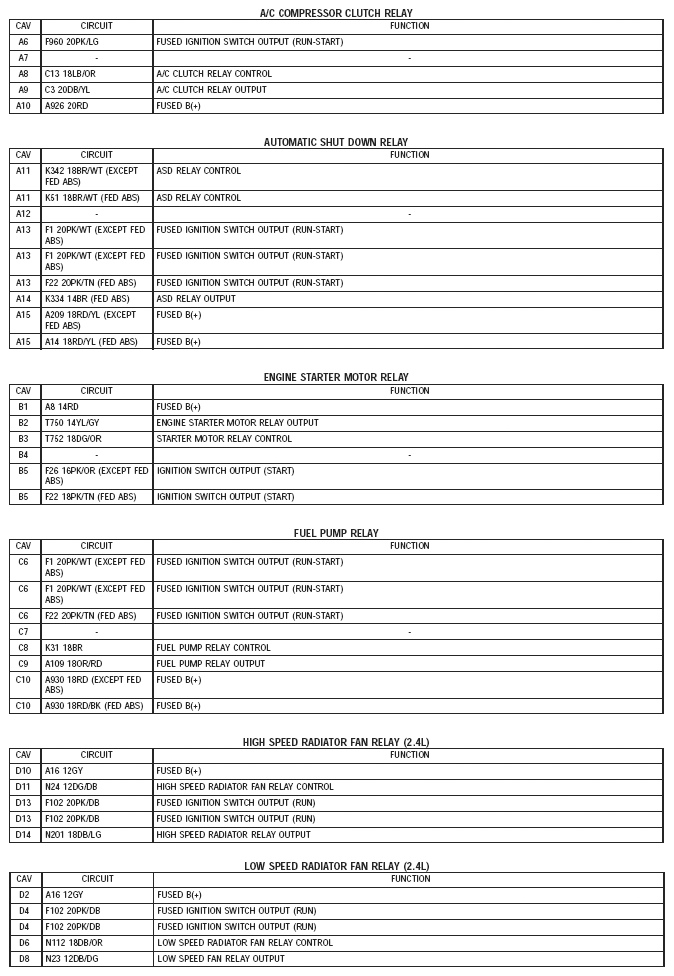

Fig 1: Power Distribution Center Relays Description Chart
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
