Right Speed Control Switch - 4 Way

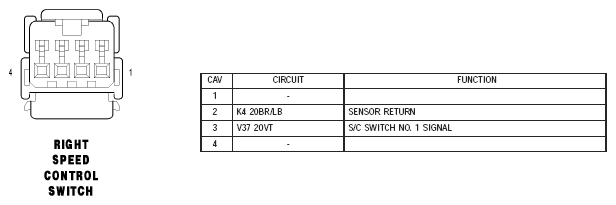

Fig 1: Connector Pinouts - Right Speed Control Switch (4 Way)
G04764047Courtesy of DAIMLERCHRYSLER CORPORATION
