Engine Firing Order - 4.0L
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Engine Firing Order - 4.0L

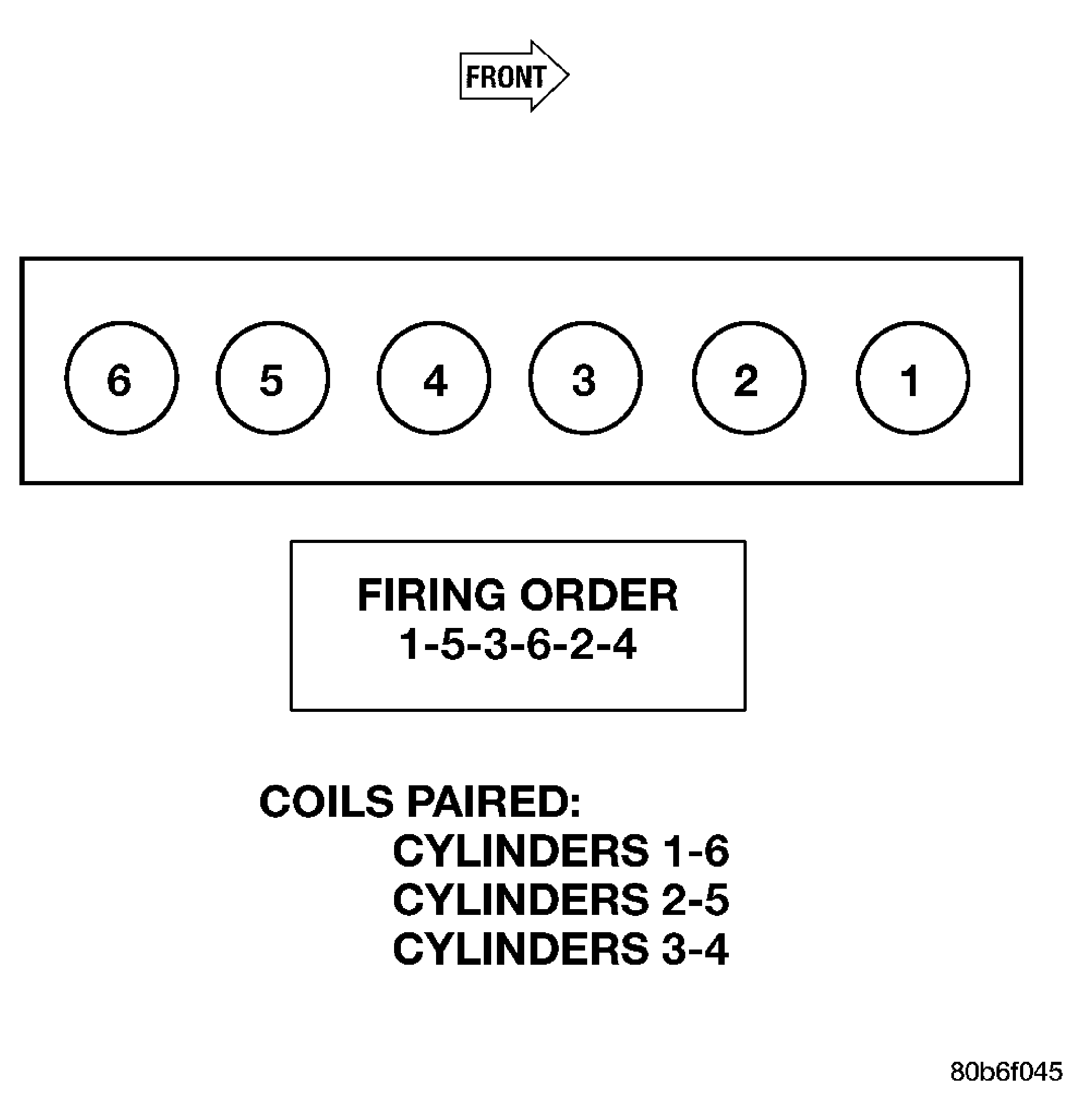

Fig 1: Firing Order - 4.0L
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
