DTCS P0123 To P0174
>>
P0171-Fuel System 1/1 Lean
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

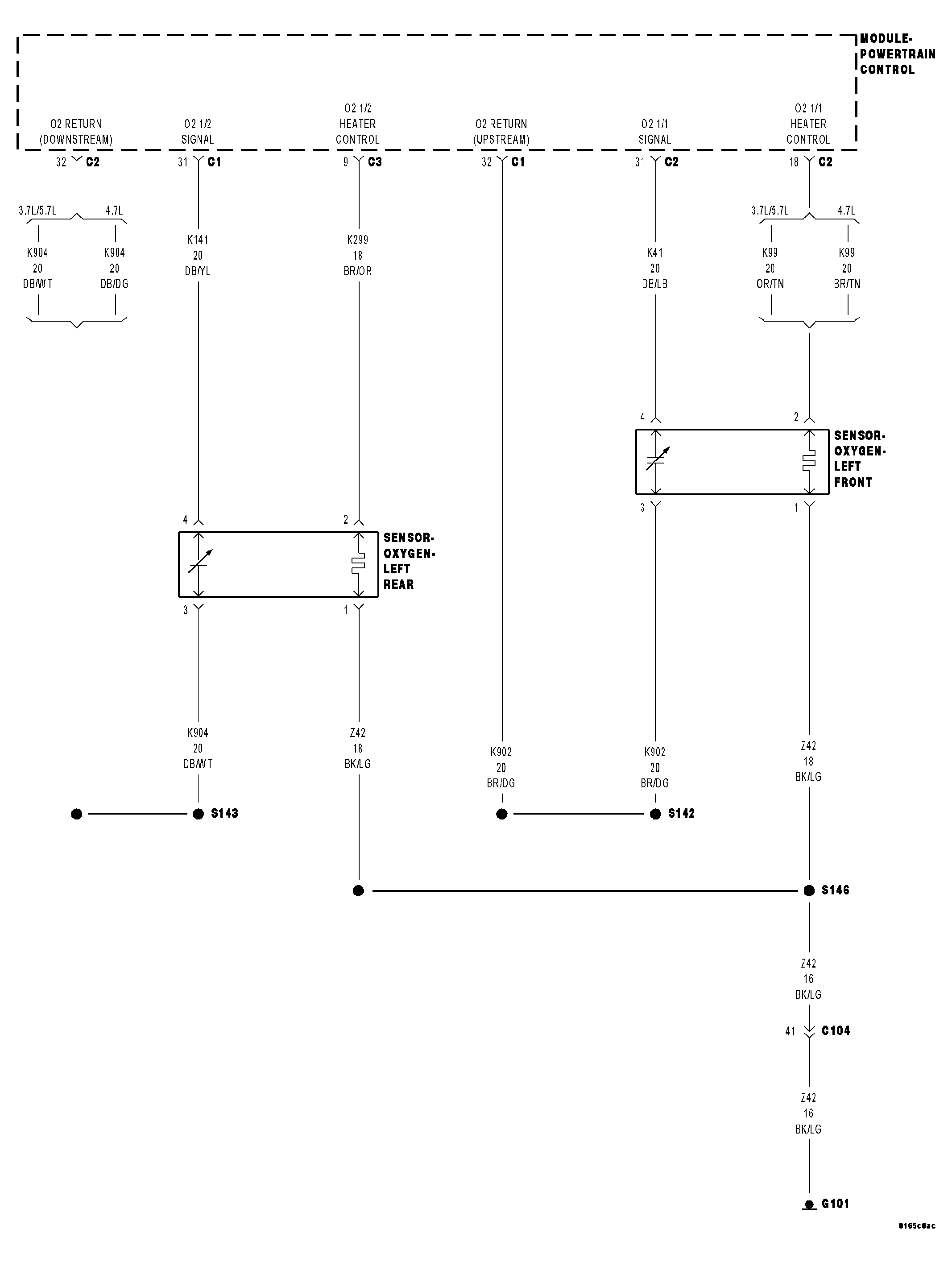

Fig 1: Left Front & Left Rear O2 Sensor Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
